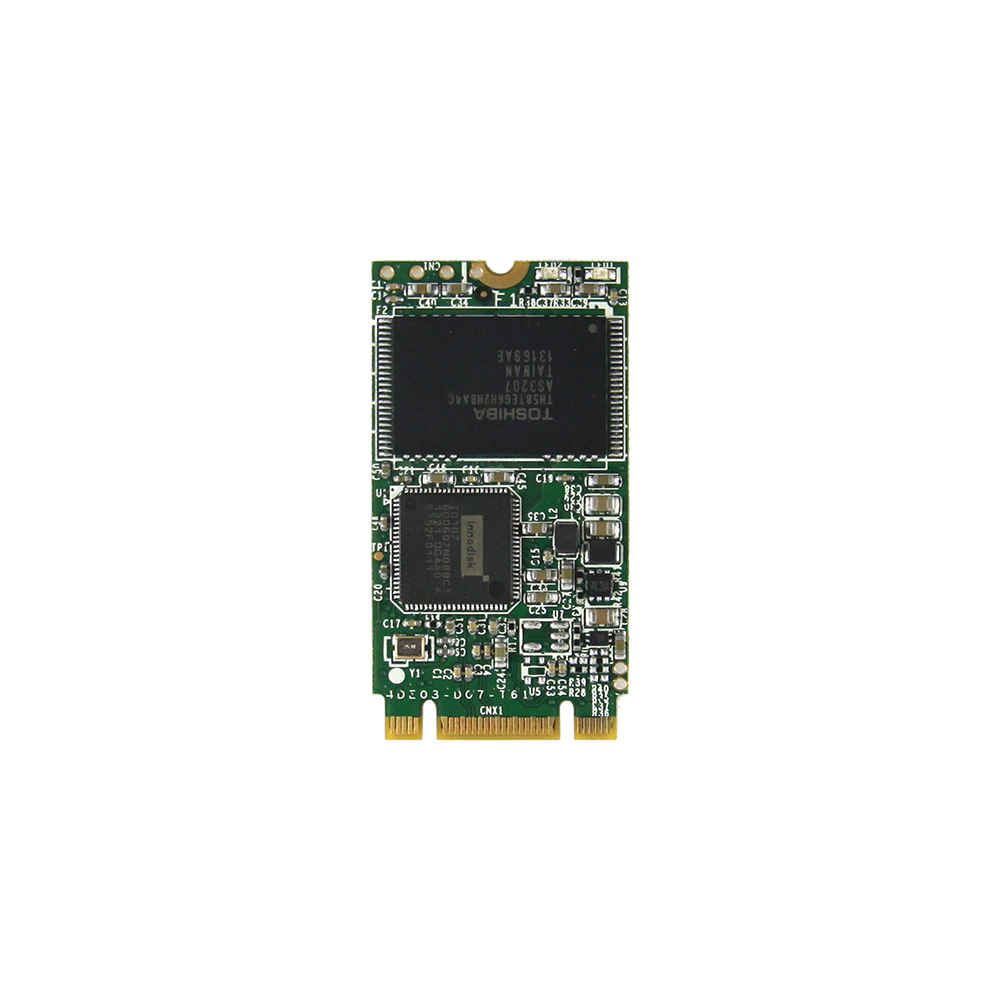

M.2 (S42) 3SE3

M.2

4GB ~ 32GB

Features

SATA III solution for industrial field
Innovative firmware algorithm
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM / NCQ / SMART
Built in iData Guard
iSMART disk health monitoring
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S42) 3SE3 is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S42) 3SE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk M.2 (S42) 3SE3 effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	M.2 (S42) 3SE3
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	4GB ~ 32GB
Sequential R / W (MB/sec, max.)	210 / 110
P/E Cycle	60,000
TBW (Max.)	187
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.2W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
4GB	DEM24-04GD09SCADB	DEM24-04GD09SWADB
8GB	DEM24-08GD09SCADB	DEM24-08GD09SWADB
16GB	DEM24-16GD09SCADB	DEM24-16GD09SWADB
32GB	DEM24-32GD09SCADB	DEM24-32GD09SWADB

For more information, please contact our support.
