M.2 (S42) 3MG2-P

M.2

32GB ~ 256GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

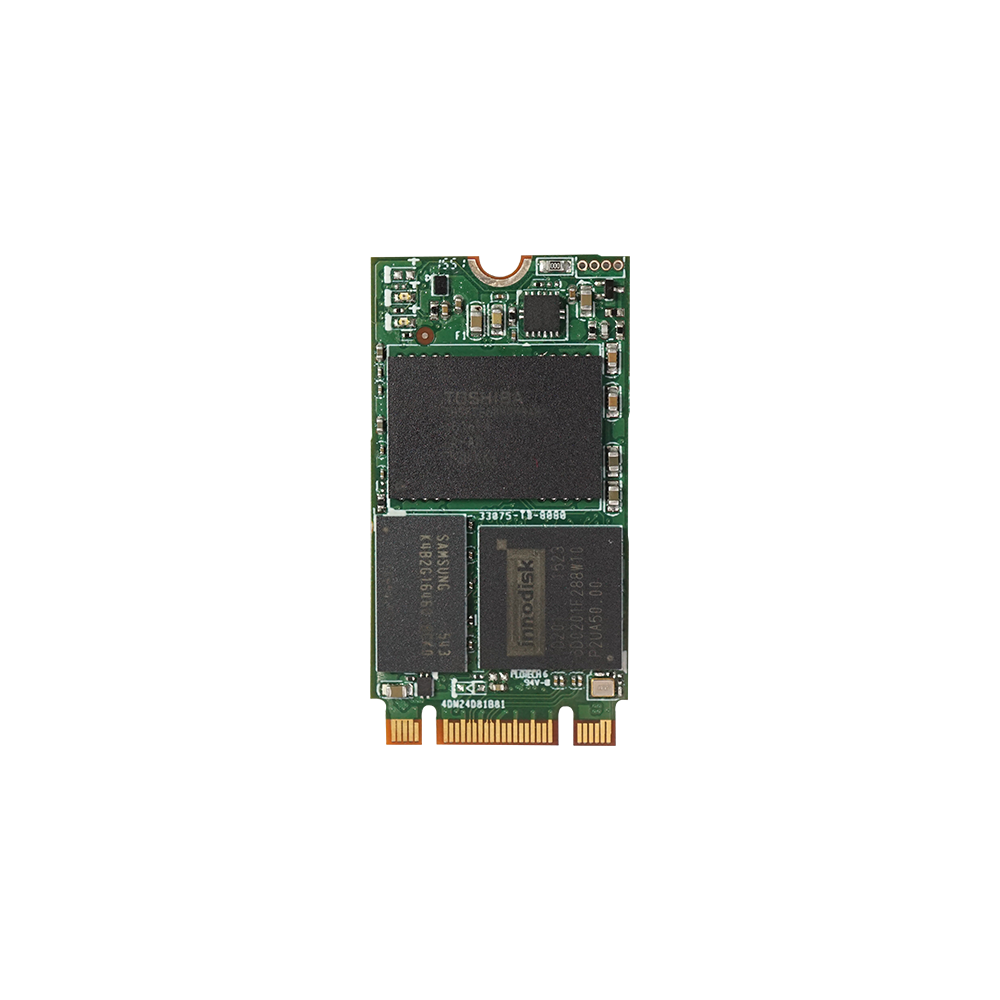

Innodisk M.2 (S42) 3MG2-P is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S42) 3MG2-P absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk M.2 (S42) 3MG2-P effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	M.2 (S42) 3MG2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	32GB ~ 256GB
Sequential R / W (MB/sec, max.)	560 / 340
P/E Cycle	3,000
TBW (Max.)	300
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.6W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 4.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DGM24-32GD81BCADC	DGM24-32GD81BWADC
64GB	DGM24-64GD81BCAQC	DGM24-64GD81BWAQC
128GB	DGM24-A28D81BCAQC	DGM24-A28D81BWAQC
256GB	DGM24-B56D81BCAQC	DGM24-B56D81BWAQC

For TCG OPAL function, the PN Code 10th ~ 12th will be D82.

For more information, please contact our support.
