M.2 (S42) 3IEB

M.2

Ultra iSLC Solution

Features

Up to 100K P/E cycle, extending the lifespan by 33x
Utilizes Ultra iSLC Technology
Equipped with 112-layer 3D TLC NAND Flash
Supports temperatures -40°C to 85°C
5 years warranty and longevity commitment

BORN FOR SUPERIOR PERFORMANCE

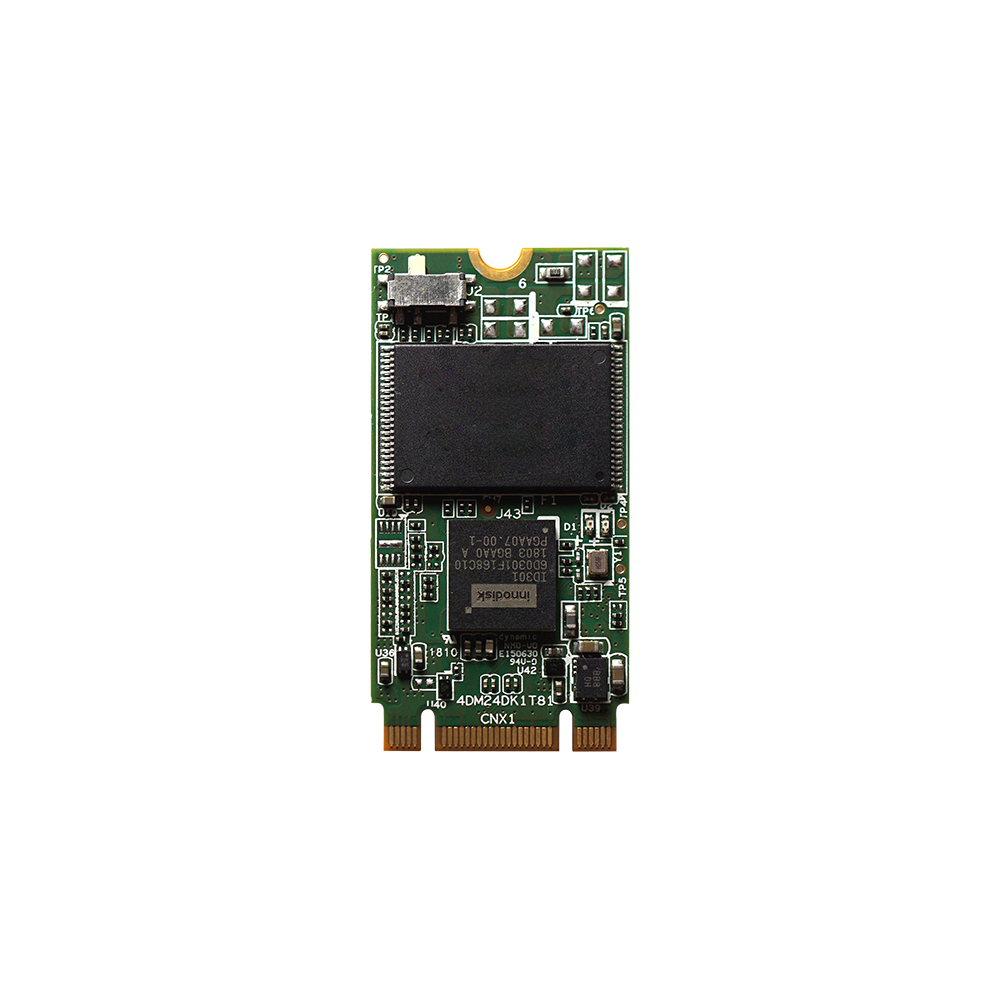

The Innodisk M.2 (S42) 3IEB is a SATA III 6.0 Gb/s flash-based drive tailored for industrial applications. Powered by exclusive Ultra iSLC Technology, it boosts storage lifespan to 100K P/E cycles. The drive supports essential features such as iData Guard, iPower Guard, and S.M.A.R.T., and comes with Innodisk’s exclusive industrial-grade firmware, offering flexible customization options. This makes it an ideal choice for a wide range of industrial environments.

SPECIFICATIONS

Model Name	M.2 (S42) 3IEB
Flash Type	iSLC (3D TLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	20GB ~ 320GB
Sequential R / W (MB/sec, max.)	550 / 500
P/E Cycle	100,000
TBW (Max.)	20,000
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	1.2W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
20GB	DHM24-20GIB1KCASL	DHM24-20GIB1KWASL
40GB	DHM24-40GIB1KCADL	DHM24-40GIB1KWADL
80GB	DHM24-80GIB1KCADL	DHM24-80GIB1KWADL
160GB	DHM24-A60IB1KCADL	DHM24-A60IB1KWADL
320GB	DHM24-D2GIB1KCADL	DHM24-D2GIB1KWADL

For more information, please contact our support.
