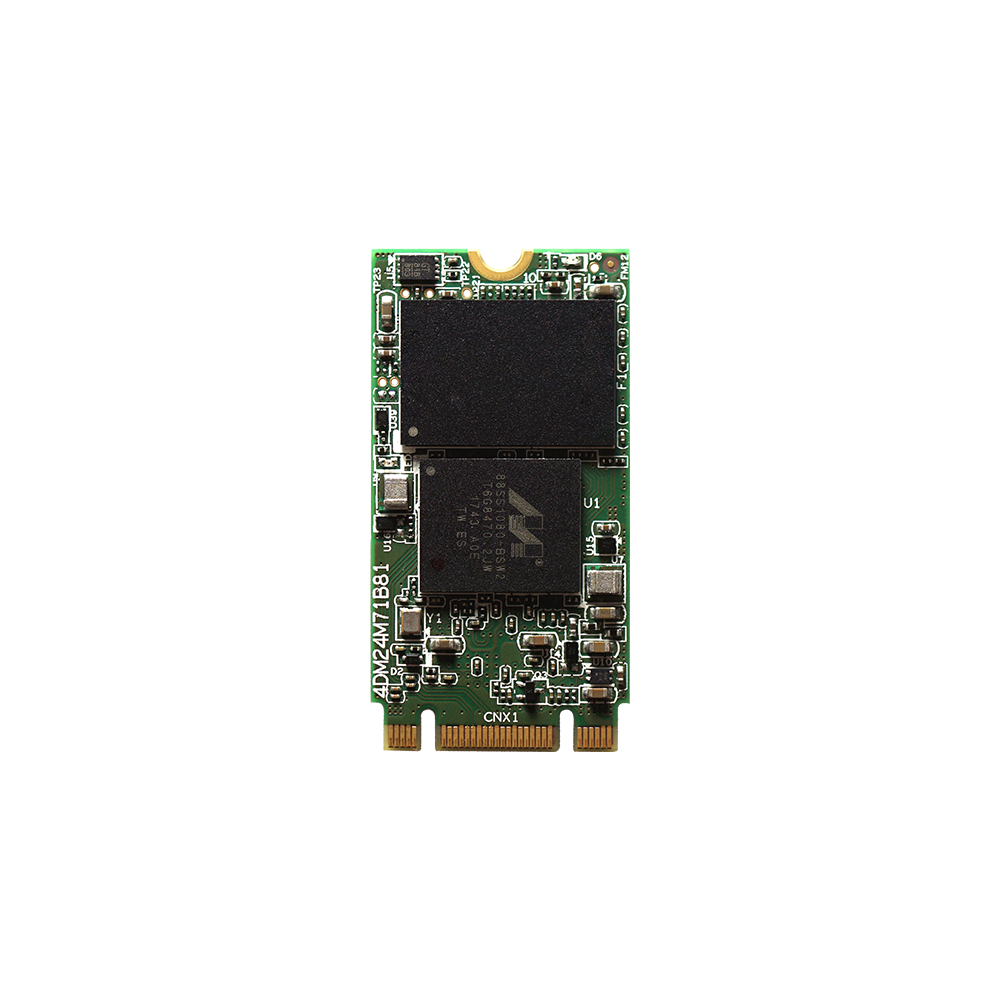

M.2 (S42) 3IE6-P

M.2

80GB ~ 160GB

SATA III solution for industrial field
Exclusive L³ architecture
AES 256-bit encryption
Excellent random performance
Supports TRIM / NCQ / S.M.A.R.T.
Supports iSLC technology
Built in iData Guard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S42) 3IE6-P is SATA III 6.0 Gb/s Flash based disk that delivers outstanding performance, particularly in random data transfer rates, while offering exceptional reliability. This makes it an ideal solution for a wide range of applications, including embedded systems, industrial computing, and enterprise fields.

M.2 (S42) 3IE6-P not only performs unmatched performance but is also designed with Innodisk-owned technical know-how to ensure data integrity and the highest levels of reliability.

Innodisk M.2 (S42) 3IE6-P is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	M.2 (S42) 3IE6-P
Flash Type	iSLC (3D TLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	80GB ~ 160GB
Sequential R / W (MB/sec, max.)	550 / 490
P/E Cycle	30,000
TBW (Max.)	4,374
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.0W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

80GB

DHM24-80GM71EC*QF

DHM24-80GM71EW*QF

160GB

DHM24-A60M71EC*QF

DHM24-A60M71EW*QF

* : PCB version

For more information, please contact our support.
