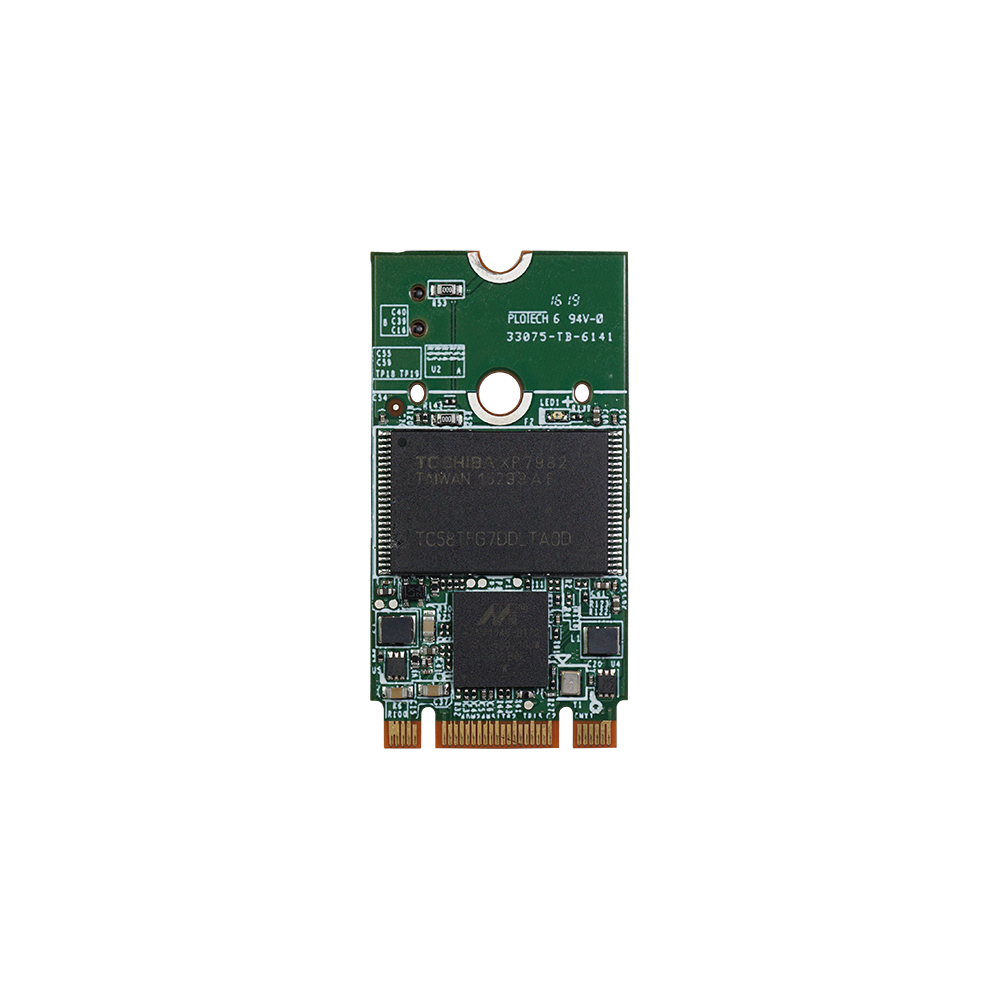

M.2 (S42) 3IE4

M.2

4GB ~ 128GB

Features

SATA III solution for industrial field
Exclusive L³ architecture
Designed with hardware LDPC ECC engine
DRAM-less, 100% data integrity
Excellent random performance
Supported TRIM / NCQ / S.M.A.R.T.
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S42) 3IE4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk M.2 (S42) 3IE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T.. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	M.2 (S42) 3IE4
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	4GB ~ 128GB
Sequential R / W (MB/sec, max.)	530 / 380
P/E Cycle	20,000
TBW (Max.)	1,388
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.8W
Max. Channels	2
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 3.2
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
4GB	DHM24-04GM41BC1SC	DHM24-04GM41BW1SC
8GB	DHM24-08GM41BC1&C	DHM24-08GM41BW1&C
16GB	DHM24-16GM41BC1DC	DHM24-16GM41BW1DC
32GB	DHM24-32GM41BC1DC	DHM24-32GM41BW1DC
64GB	DHM24-64GM41BC1DC	DHM24-64GM41BW1DC
128GB	DHM24-A28M41BCADC	DHM24-A28M41BWADC

&. S : 1 channel / D : 2 channels

For more information, please contact our support.
