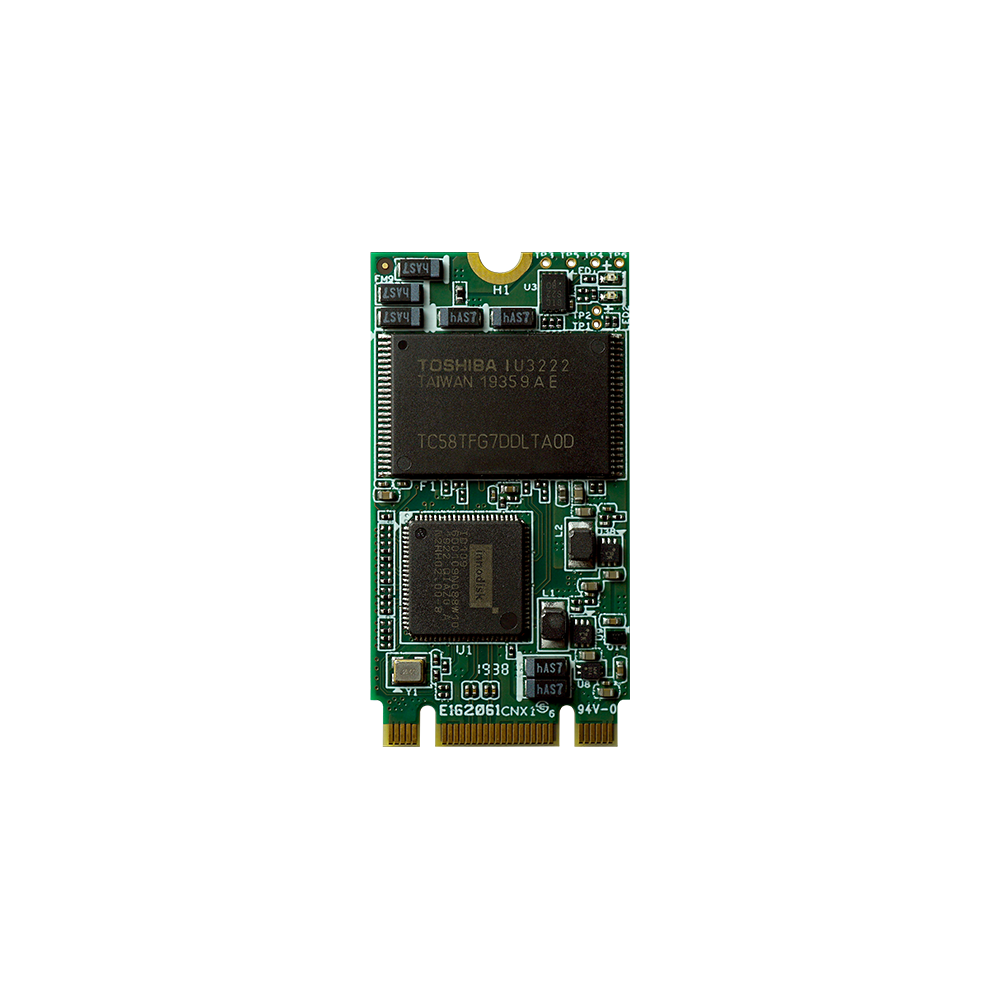

M.2 (S42) 3IE3

M.2

8GB ~ 64GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S42) 3IE3 is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S42) 3IE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk M.2 (S42) 3IE3 effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	M.2 (S42) 3IE3
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	200 / 80
P/E Cycle	20,000
TBW (Max.)	694
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.3W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 3.2
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHM24-08GD09BC1SC	DHM24-08GD09BW1SC
16GB	DHM24-16GD09BC1DC	DHM24-16GD09BW1DC
32GB	DHM24-32GD09BC1DC	DHM24-32GD09BW1DC
64GB	DHM24-64GD09BC1DC	DHM24-64GD09BW1DC

For more information, please contact our support.
