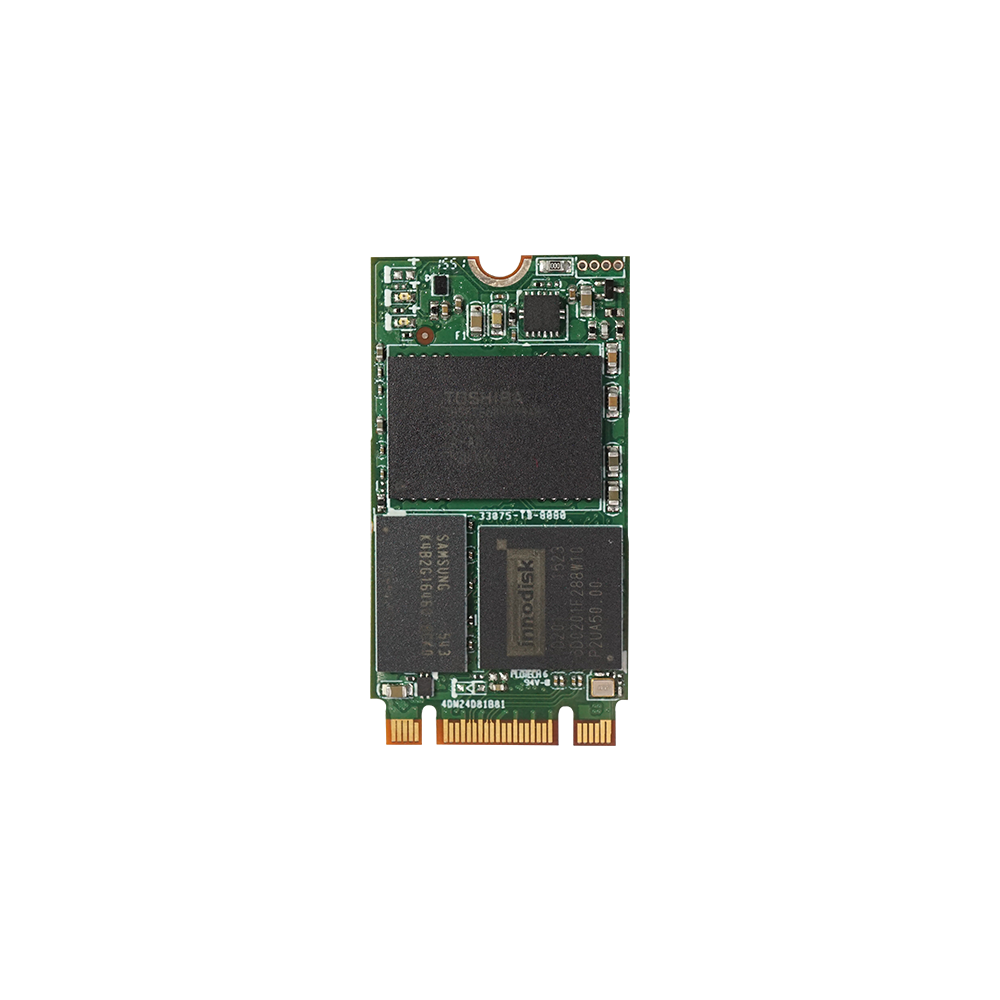

M.2 (S42) 3IE2-P

M.2

16GB ~ 128GB

Features

SATA 6.0Gb/s interface
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Zero mechanical interference
Anti-vibration mechanical design

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S42) 3IE2-P is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC. Regarding of mechanical interference, Innodisk M.2 (S42) 3IE2-P absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Innodisk M.2 (S42) 3IE2-P effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

SPECIFICATIONS

Model Name	M.2 (S42) 3IE2-P
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2242 B+M Key
Capacity	16GB ~ 128GB
Sequential R / W (MB/sec, max.)	560 / 450
P/E Cycle	20,000
TBW (Max.)	1,250
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.1W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 42.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
16GB	DHM24-16GD81BCADC	DHM24-16GD81BWADC
32GB	DHM24-32GD81BCAQC	DHM24-32GD81BWAQC
64GB	DHM24-64GD81BCAQC	DHM24-64GD81BWAQC
128GB	DHM24-A28D81BCAQC	DHM24-A28D81BWAQC

For more information, please contact our support.
