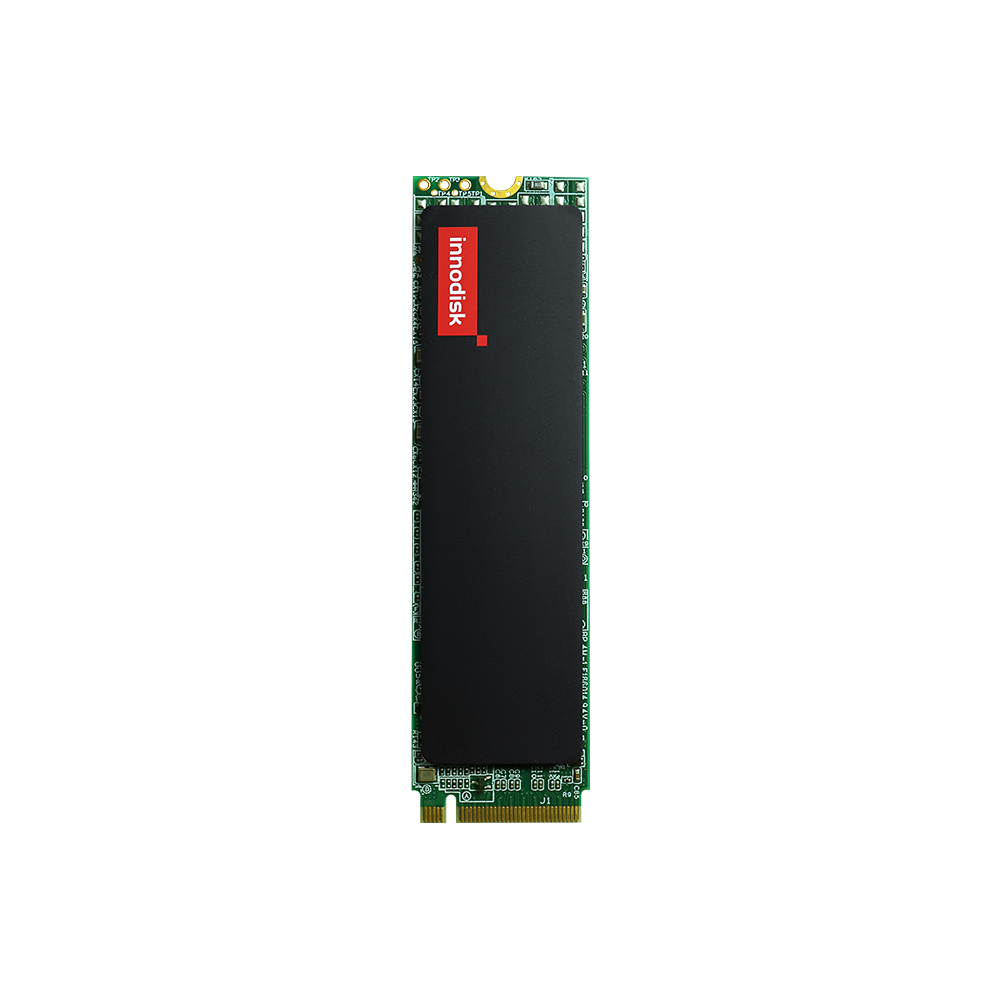

M.2 (P80) 4TS2-P

M.2

Advanced Storage For Data Center

Features

• Up to 6,950 / 4,650 MB/s read and write performance
• Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
• PLP (iCell) technology for power loss protection

Download Datasheet

Model Name

M.2 (P80) 4TS2-P

Flash Type

3D TLC

Interface

PCIe Gen 4 x4

Form Factor

M.2 2280 M Key

Capacity

400GB ~ 3.2TB

Sequential R / W (MB/sec, max.)

6,950 / 4,650

P/E Cycle

3,000

TBW (Max.)

5,312

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

6.7W

Max. Channels

8

External DRAM Buffer

?

Features

PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.

Series

Data Center SSD

Dimension (W x L x H/mm)

S/T with heat-spreading copper layer : 22.0 x 80.0 x 3.3 W/T with heatsink : 25.0 x 80.0 x 14.45 Pure M.2 : 22.0 x 80.0 x 2.87

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years
