M.2 (P80) 4TG2-P

M.2

PCIe Gen4 Solution

Features

Up to 6,950 / 4,700 MB/s read and write performance
Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
PLP (iCell) technology for power loss protection

BORN FOR SUPERIOR PERFORMANCE

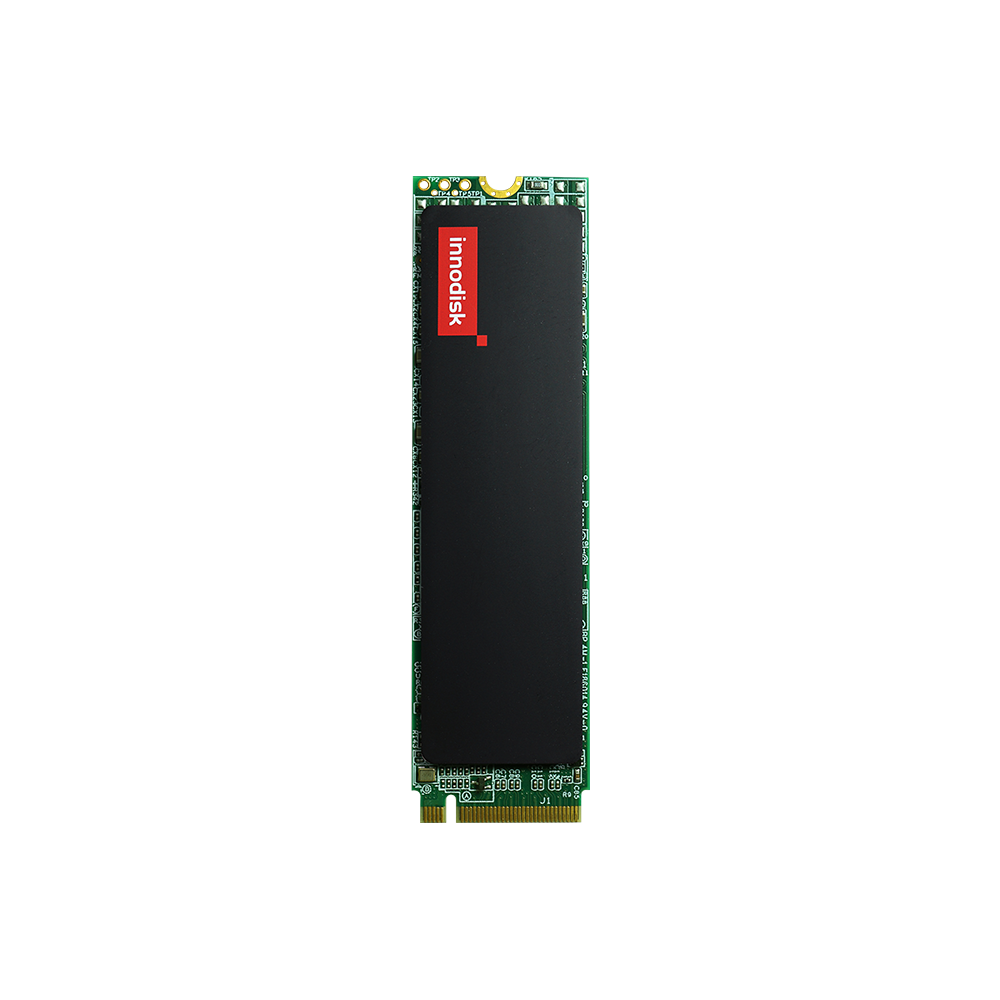

The Innodisk M.2 (P80) 4TG2-P is an NVMe SSD in the standard M.2 form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Equipped with its heat-dissipation design, the M.2 (P80) 4TG2-P efficiently disperses heat generated by the ICs, ensuring stable SSD performance. It also features Die RAID protection to reduce the occurrence of bad blocks and optimize data integrity.

SPECIFICATIONS

Model Name	M.2 (P80) 4TG2-P
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	M.2 2280 M Key
Capacity	256GB ~ 4TB
Sequential R / W (MB/sec, max.)	6,950 / 4,700
P/E Cycle	3,000
TBW (Max.)	8,444
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.8W
Max. Channels	8
External DRAM Buffer	N
Features	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	Pure M.2 : 22.0 x 80.0 x 3.5 S/T with heat-spreading copper layer : 22.0 x 80.0 x 4.1 W/T with heat sink : 25.0 x 80.0 x 14.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standrad Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
256GB	DGM28-B56DP1KCCQF	DGM28-B56DP1KWCQFH
512GB	DGM28-C12DP1KCCEF	DGM28-C12DP1KWCEFH
1TB	DGM28-01TDP1KCCEF	DGM28-01TDP1KWCEFH
2TB	DGM28-02TDP1KCCEF	DGM28-02TDP1KWCEFH
4TB	DGM28-04TDP1KCCEF	DGM28-04TDP1KWCEFH

For TCG Opal function, the PN Code 10th ~ 12th will be DP2.

For more information, please contact our support.
