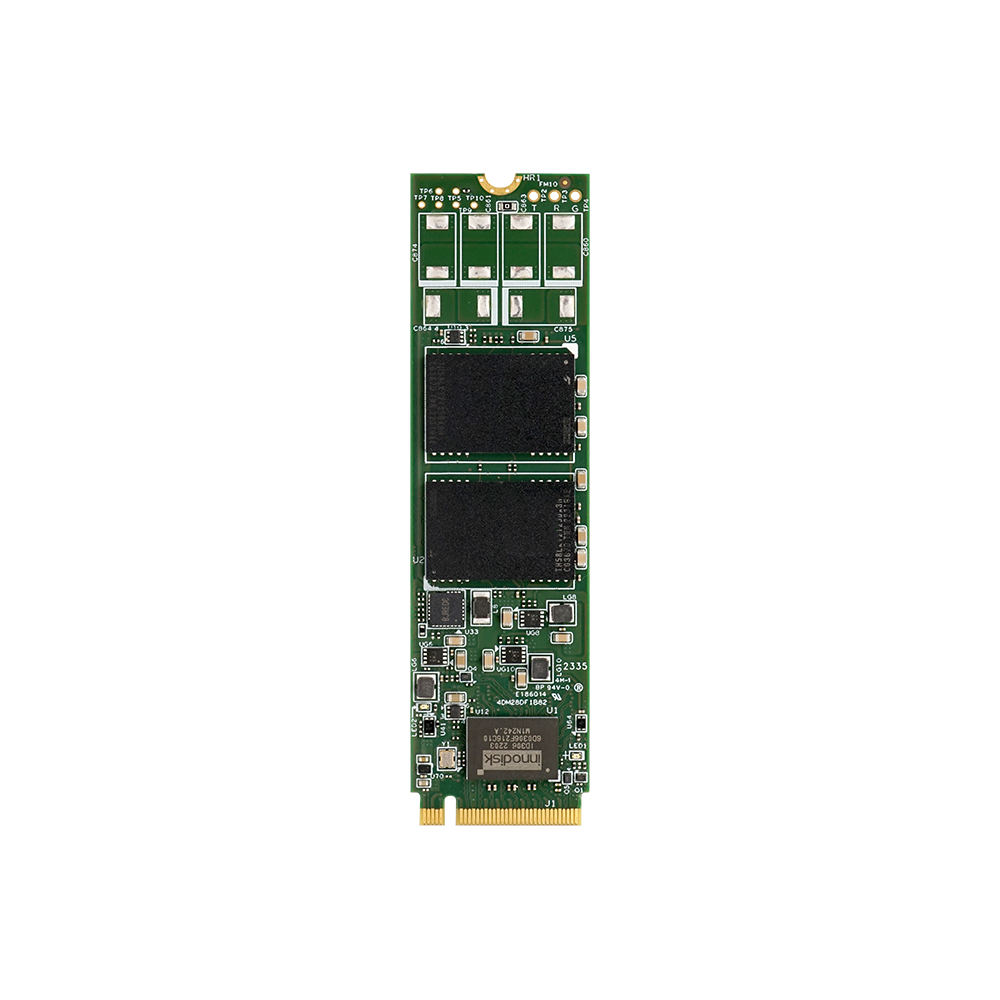

M.2 (P80) 4TE2

M.2

PCIe Gen4 Solution

Features

Powered by PCIe Gen 4 x4 and NVMe 1.4, delivering fast and reliable performance
Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
PLP (iCell) technology for power loss protection

BORN FOR SUPERIOR PERFORMANCE

The M.2 (P80) 4TE2 is a DRAM-less NVMe SSD featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Compliant with the NVMe 1.4 protocol, it delivers exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	M.2 (P80) 4TE2
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	M.2 2280 M Key
Capacity	128GB ~ 2TB
Sequential R / W (MB/sec, max.)	3,550 / 3,300
P/E Cycle	3,000
TBW (Max.)	1,706
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	5.4W
Max. Channels	4
External DRAM Buffer	N
Features	PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	S/T : 22.0 x 80.0 x 3.8 W/T with heatsink : 25.0 x 80.0 x 14.45
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standrad Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DEM28-A28DF1KCADF(P)	DEM28-A28DF1KWADF(P)H
256GB	DEM28-B56DF1KCAQF(P)	DEM28-B56DF1KWAQF(P)H
512GB	DEM28-C12DF1KCAQF(P)	DEM28-C12DF1KWAQF(P)H
1TB	DEM28-01TDF1KCAQF(P)	DEM28-01TDF1KWAQF(P)H
2TB	DEM28-02TDF1KCAQF(P)	DEM28-02TDF1KWAQF(P)H

(P) : PLP (iCell) (Optional)

For TCG OPAL function, the PN Code 10th ~ 12th will be DF2.

For more information, please contact our support.
