M.2 (P80) 4IG2-P

M.2

Ultra iSLC Solution

Features

Up to 100K P/E cycle, extending the lifespan by 33x
Utilizes Ultra iSLC Technology
Equipped with 112-layer 3D TLC NAND Flash
Supports temperature -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
5 years warranty and longevity commitment

BORN FOR SUPERIOR PERFORMANCE

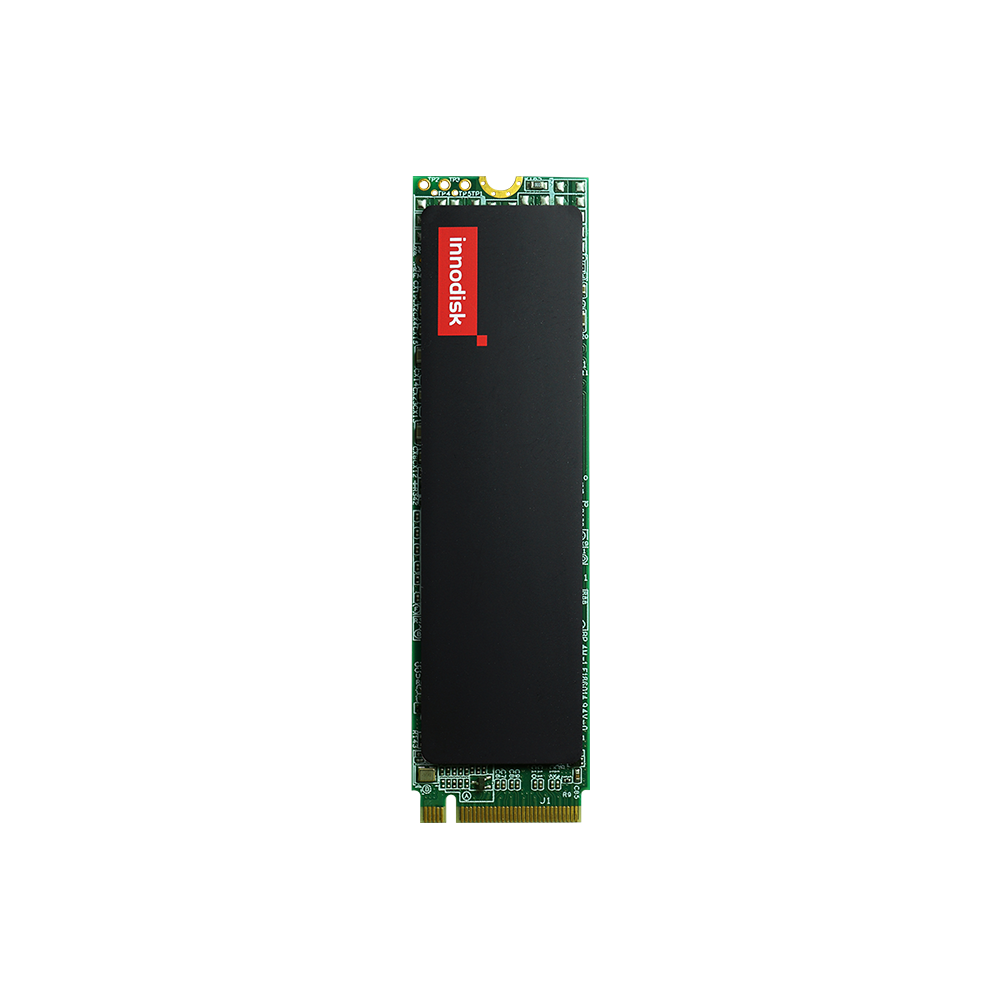

The Innodisk M.2 (P80) 4IG2-P is an NVMe SSD in the standard M.2 form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Equipped with its heat-dissipation design, the M.2 (P80) 4IG2-P efficiently disperses heat generated by the ICs, ensuring stable SSD performance. It also features Die RAID protection to reduce the occurrence of bad blocks and optimize data integrity.

SPECIFICATIONS

Model Name	M.2 (P80) 4IG2-P
Flash Type	iSLC (3D TLC)
Interface	PCIe Gen 4 x4
Form Factor	M.2 2280 M Key
Capacity	160GB ~ 1.28TB
Sequential R / W (MB/sec, max.)	6,900 / 4,350
P/E Cycle	100,000
TBW (Max.)	85,506
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.8W
Max. Channels	8
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	Pure M.2 : 22.0 x 80.0 x 3.5 S/T with heat-spreading copper layer : 22.0 x 80.0 x 4.1 W/T with heat sink : 25.0 x 80.0 x 14.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
160GB	DHM28-A60DP1KCCEL	DHM28-A60DP1KWCELH
320GB	DHM28-D2GDP1KCCEL	DHM28-D2GDP1KWCELH
640GB	DHM28-F4GDP1KCCEL	DHM28-F4GDP1KWCELH
1.28TB	DHM28-1T2DP1KCCEQ	DHM28-1T2DP1KWCEQH

For TCG Opal function, the PN Code 10th ~ 12th will be DP2.

For more information, please contact our support.
