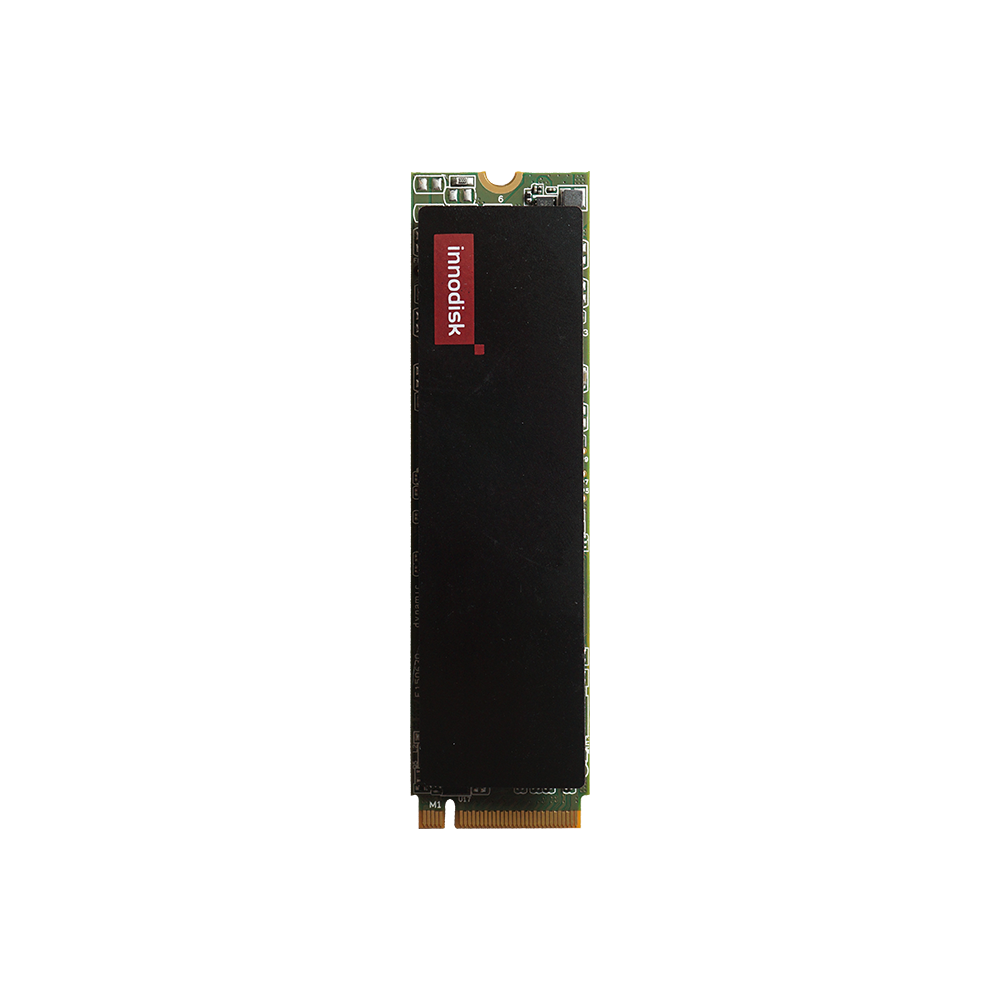

M.2 (P80) 3TG3-P

M.2

256GB ~ 1TB

Features

Powered by PCIe Gen 3 x4, NVMe 1.3
Excellent data transfer speed
High Endurance
Heat-spreading design
LDPC ECC engine supported
End-to-End Data Path Protection
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (P80) 3TG3-P is an NVM Express SSD designed as the standard M.2 form factor with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P80)3TG3P supports PCIe Gen 3 x4, and it is compliant with NVM 1.3 providing excellent performance. M.2 (P80) 3TG3-P go with a heat-spreading copper layer to dissipate heat generating from IC. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

Innodisk M.2 (P80) 3TG3-P provides ultra-speed and high IOPS and offers maximum capacity up to 2TB, making the SSD optimal for server and heavy data workload applications.

SPECIFICATIONS

Model Name	M.2 (P80) 3TG3-P
Flash Type	3D TLC
Interface	PCIe Gen 3 x4
Form Factor	M.2 2280 M Key
Capacity	256GB ~ 1TB
Sequential R / W (MB/sec, max.)	3,200 / 2,900
P/E Cycle	3,000
TBW (Max.)	8,617
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	6.5W
Max. Channels	8
External DRAM Buffer	?
Features	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	Pure M.2 : 22.0 x 80.0 x 3.5 W/T with heat-spreading copper layer : 22.0 x 80.0 x 3.95 W/T with heat sink : 23.6 x 80.0 x 14.45
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
256GB	DGM28-B56DA1GCAQL	DGM28-B56DA1GWAQLH
512GB	DGM28-C12DA1GCAEL	DGM28-C12DA1GWAELH
1TB	DGM28-01TDA1GCAEL	DGM28-01TDA1GWAELH

For more information, please contact our support.
