M.2 (P80) 3TE4 B M Key

M.2

128GB ~ 1TB

Features

Powered by PCIe Gen 3 x2, NVMe 1.3
DRAM-less solution
Anti-vibration mechanical design
Dynamic Thermal Throttling
iPower Guard Protection

BORN FOR SUPERIOR PERFORMANCE

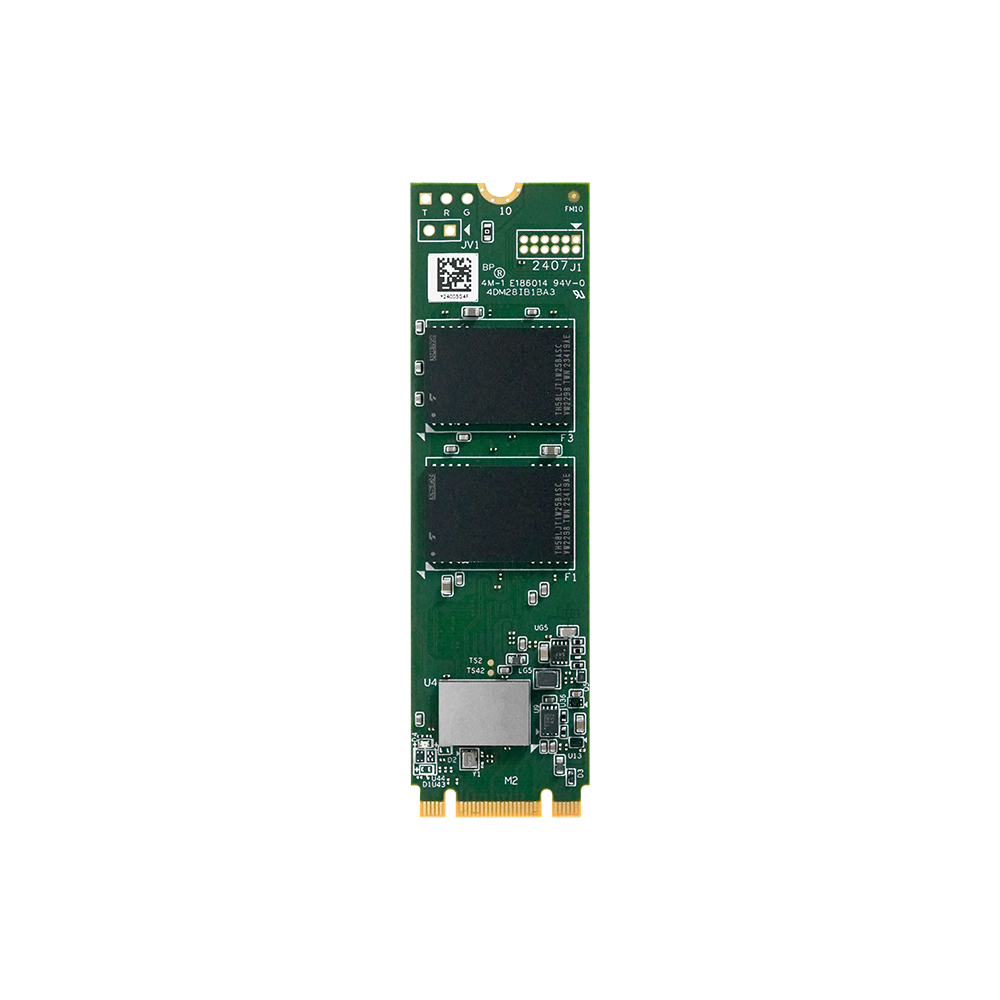

Innodisk M.2 (P80) 3TE4 B+M key is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P80) 3TE4 B+M Key supports PCIe Gen 3 x2 and it is compliant with NVM 1.3 providing excellent top and outstanding sustained performance. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	M.2 (P80) 3TE4 B+M Key
Flash Type	3D TLC
Interface	PCIe Gen 3 x2
Form Factor	M.2 2280 B+M Key
Capacity	128GB ~ 1TB
Sequential R / W (MB/sec, max.)	1,750 / 1,500
P/E Cycle	3,000
TBW (Max.)	1,300
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	3.4W
Max. Channels	4
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	S/T : 22.0 x 80.0 x 3.5 W/T with heat-spreading copper layer : 22.0 x 80.0 x 4.1
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DEM28-A28IB1KCCDF	DEM28-A28IB1KWCDF
256GB	DEM28-B56IB1KCCQF	DEM28-B56IB1KWCQF
512GB	DEM28-C12IB1KCCQF	DEM28-C12IB1KWCQF
1TB	DEM28-01TIB1KCCQF	DEM28-01TIB1KWCQF

For TCG OPAL function, the PN Code 10th ~12th will be IB2.

For more information, please contact our support.
