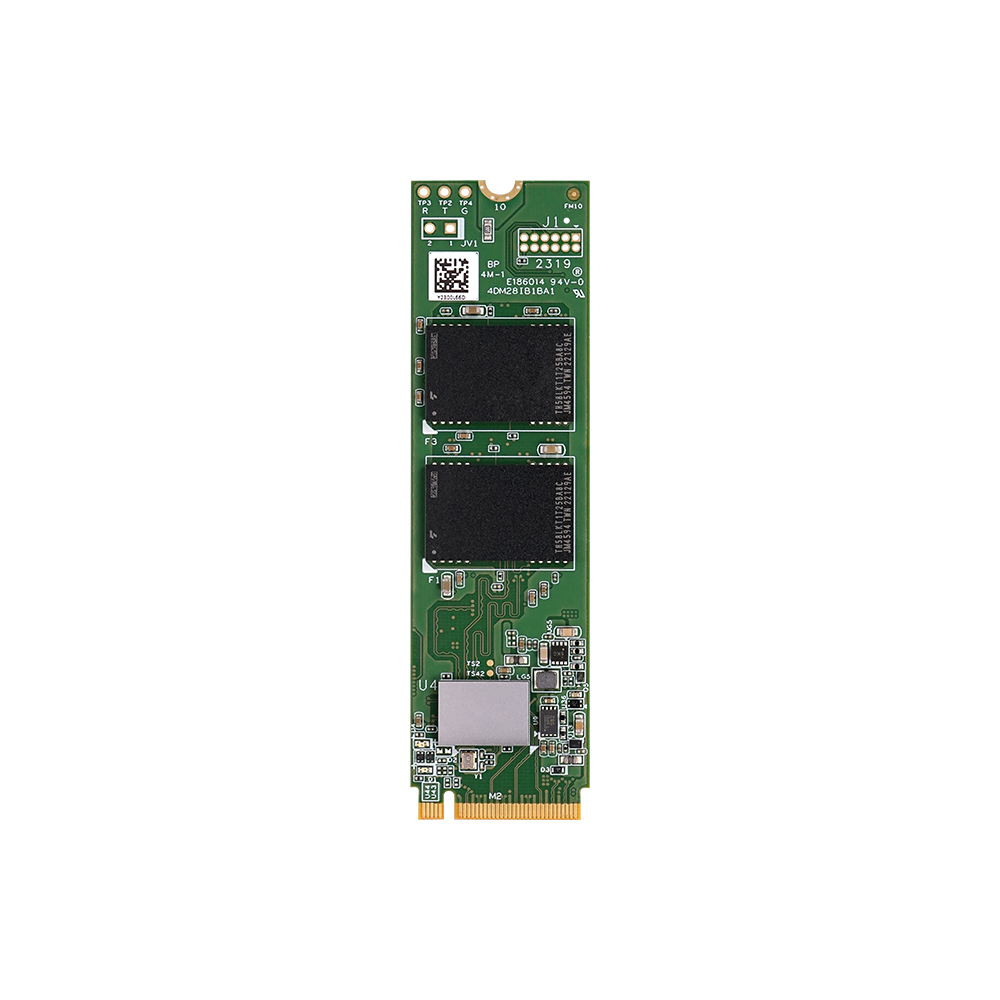

M.2 (P80) 3TE4

M.2

128GB ~ 1TB

Features

• Powered by PCIe Gen 3 x4 and NVMe 1.3
• DRAM-less solution
• Anti-vibration mechanical design
• Dynamic Thermal Throttling
• iPower Guard Protection
• Supports wide temperature from -40°C to 85°C

Download Datasheet

Model Name

M.2 (P80) 3TE4

Flash Type

3D TLC

Interface

PCIe Gen 3 x4

Form Factor

M.2 2280 M Key

Capacity

128GB ~ 1TB

Sequential R / W (MB/sec, max.)

2,600 / 1,800

P/E Cycle

3,000

TBW (Max.)

1,706

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

4.0W

Max. Channels

4

External DRAM Buffer

N

Features

AES, TCG Opal 2.0, S.M.A.R.T.

Dimension (W x L x H/mm)

S/T : 22.0 x 80.0 x 3.5 W/T with heat-spreading copper layer : 22.0 x 80.0 x 4.1

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

3 Years
