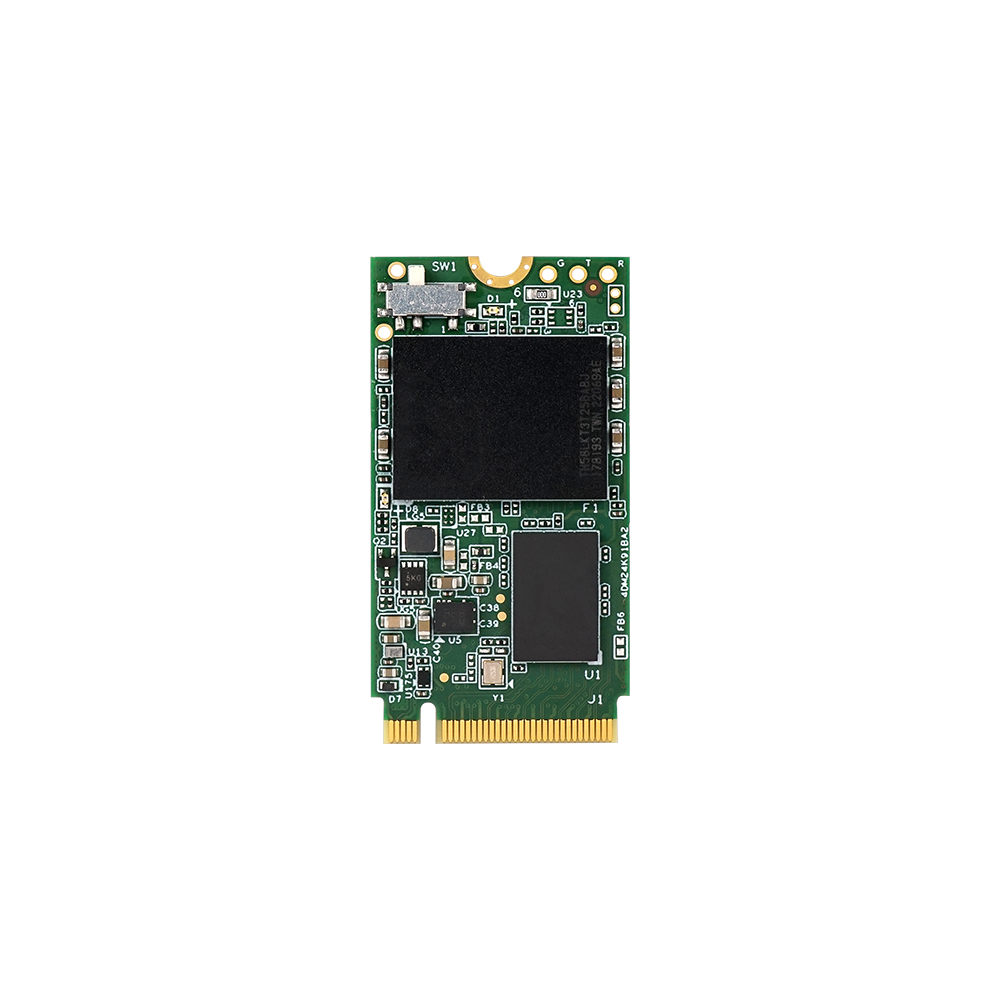

M.2 (P42) 4TE3

M.2

PCIe Gen4 Solution

Features

Powered by PCIe Gen 4 x4 and NVMe 1.4, delivering fast and reliable performance
Supports temperatures -40°C to 85°C with dynamic thermal throttling to maintain SSD stability

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (P42) 4TE3 is a PCIe Gen 4 x4 interface and 3D TLC NAND Flash while adhering to the NVMe 1.4 protocol, delivering exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, the M.2 (P42) 4TE3 provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	M.2 (P42) 4TE3
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	M.2 2242 M Key
Capacity	128GB ~ 2TB
Sequential R / W (MB/sec, max.)	3,650 / 2,850
P/E Cycle	3,000
TBW (Max.)	1,621
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.8W
Max. Channels	4
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	Pure M.2 : 22.0 x 42.0 x 3.5 W/T with heat sink : 25.0 x 42.0 x 14.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DEM24-A28DH1KCADF(W)	DEM24-A28DH1KWADF(W)H
256GB	DEM24-B56DH1KCAQF(W)	DEM24-B56DH1KWAQF(W)H
512GB	DEM24-C12DH1KCAQF(W)	DEM24-C12DH1KWAQF(W)H
1TB	DEM24-01TDH1KCAQF(W)	DEM24-01TDH1KWAQF(W)H
2TB	DEM24-02TDH1KCAQF(W)	DEM24-02TDH1KWAQF(W)H

W : H/W Write Protect

For TCG Opal function, the PN Code 10th ~ 12th will be DH2.

For more information, please contact our support.
