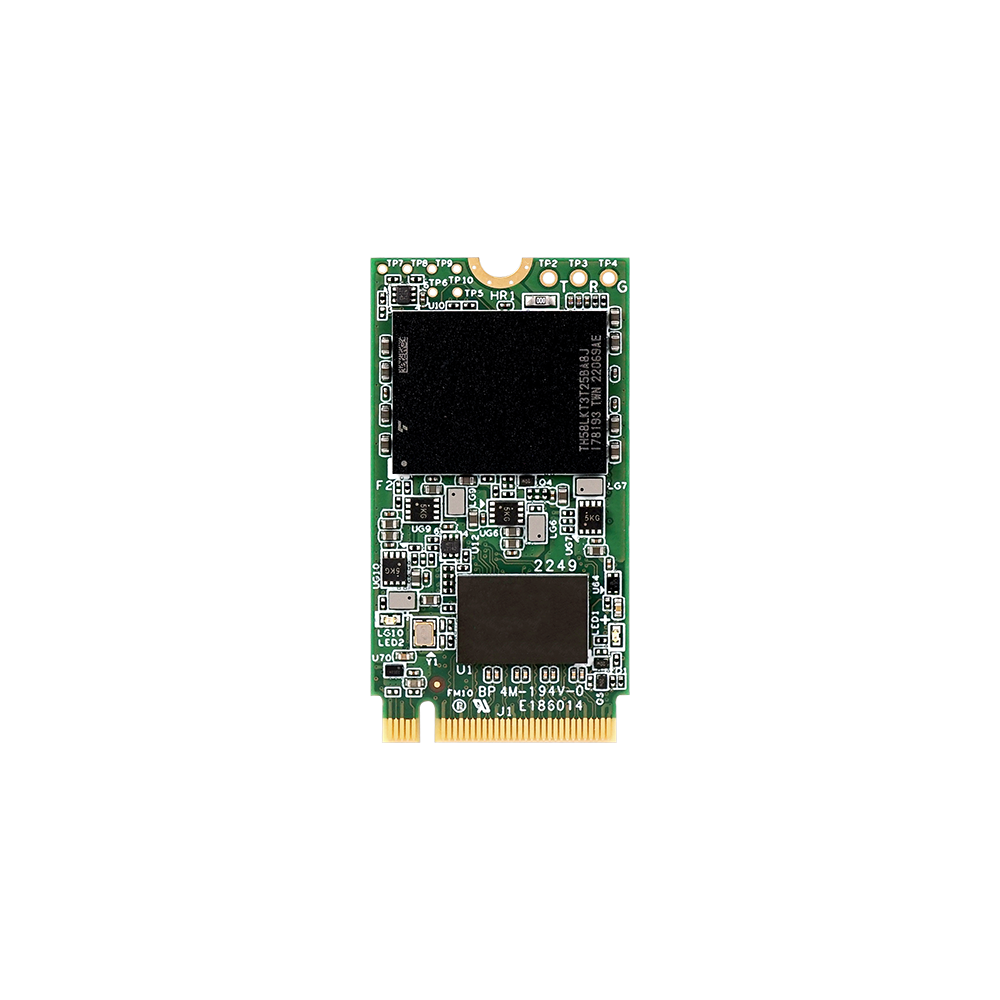

M.2 (P42) 4IE2

M.2

Ultra iSLC Solution

Features

• Up to 100K P/E cycle, extending the lifespan by 33x
• Utilizes Ultra iSLC Technology
• Equipped with 112-layer 3D TLC NAND Flash
• Supports temperatures -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
• Powered by PCIe Gen 4 x4 and NVMe 1.4, delivering fast and reliable performance

Download Datasheet

Model Name

M.2 (P42) 4IE2

Flash Type

iSLC (3D TLC)

Interface

PCIe Gen 4 x4

Form Factor

M.2 2242 M Key

Capacity

40GB ~ 640GB

Sequential R / W (MB/sec, max.)

3,550 / 2.950

P/E Cycle

100,000

TBW (Max.)

20,161

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

4.8W

Max. Channels

4

External DRAM Buffer

N

Features

PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

S/T : 22.0 x 42.0 x 3.8 W/T with heatsink : 25.0 x 42.0 x 14.5

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years
