M.2 (P42) 3TE8

M.2

128GB ~ 1TB

Features

PCIe Gen 3 x4, NVMe SSD
Kioxia 3D TLC NAND
Standard / Wide temperature
iData Guard / iPower Guard
Dynamic Thermal Management
Hybrid Write Mode with SLC Cache Enable
Supports TCG Opal function

BORN FOR SUPERIOR PERFORMANCE

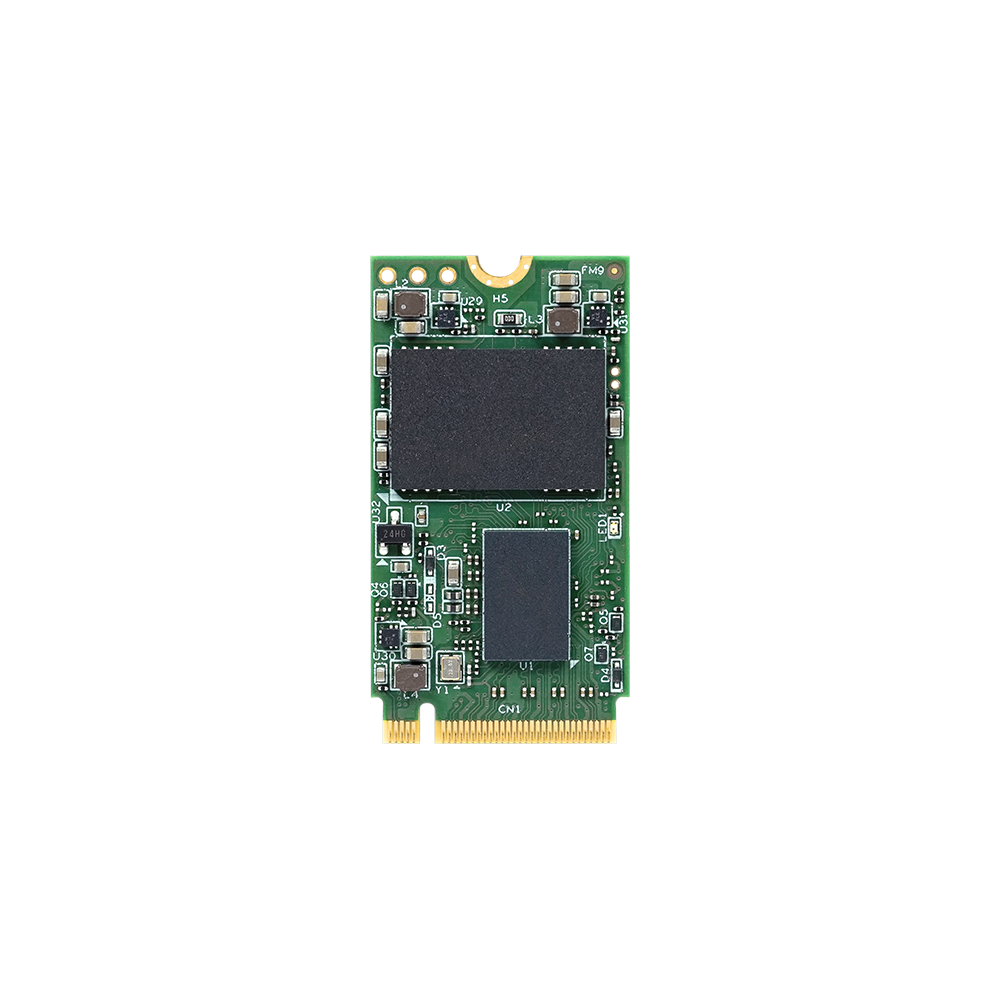

Innodisk M.2 (P42) 3TE8 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P42) 3TE8 supports PCIe Gen 3 x4 and it is compliant with NVMe 1.4 providing excellent top and also sustained performance. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

Innodisk M.2 (P42) 3TE8 is designed with AES engine, which is a built in controller. When controller receives the data package from host, AES engine encrypts the data package and saves the encrypted data into NAND Flash. Thus, unauthorized personal has no access to decrypt the data in NAND Flash.

SPECIFICATIONS

Model Name	M.2 (P42) 3TE8
Flash Type	3D TLC
Interface	PCIe Gen 3 x4
Form Factor	M.2 2242 M Key
Capacity	128GB ~ 1TB
Sequential R / W (MB/sec, max.)	3,350 / 2,600
P/E Cycle	3,000
TBW (Max.)	803
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.2W
Max. Channels	4
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	Pure M.2 : 22.0 x 42.0 x 2.78 W/T with heat sink : 25.0 x 42.0 x 14.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DEM24-A28DS2KCADFS	DEM24-A28DS2KWADFSH
256GB	DEM24-B56DS2KCAQFS	DEM24-B56DS2KWAQFSH
512GB	DEM24-C12DS2KCAQFS	DEM24-C12DS2KWAQFSH
1TB	DEM24-01TDS2KCAQFS	DEM24-01TDS2KWAQFSH

For more information, please contact our support.
