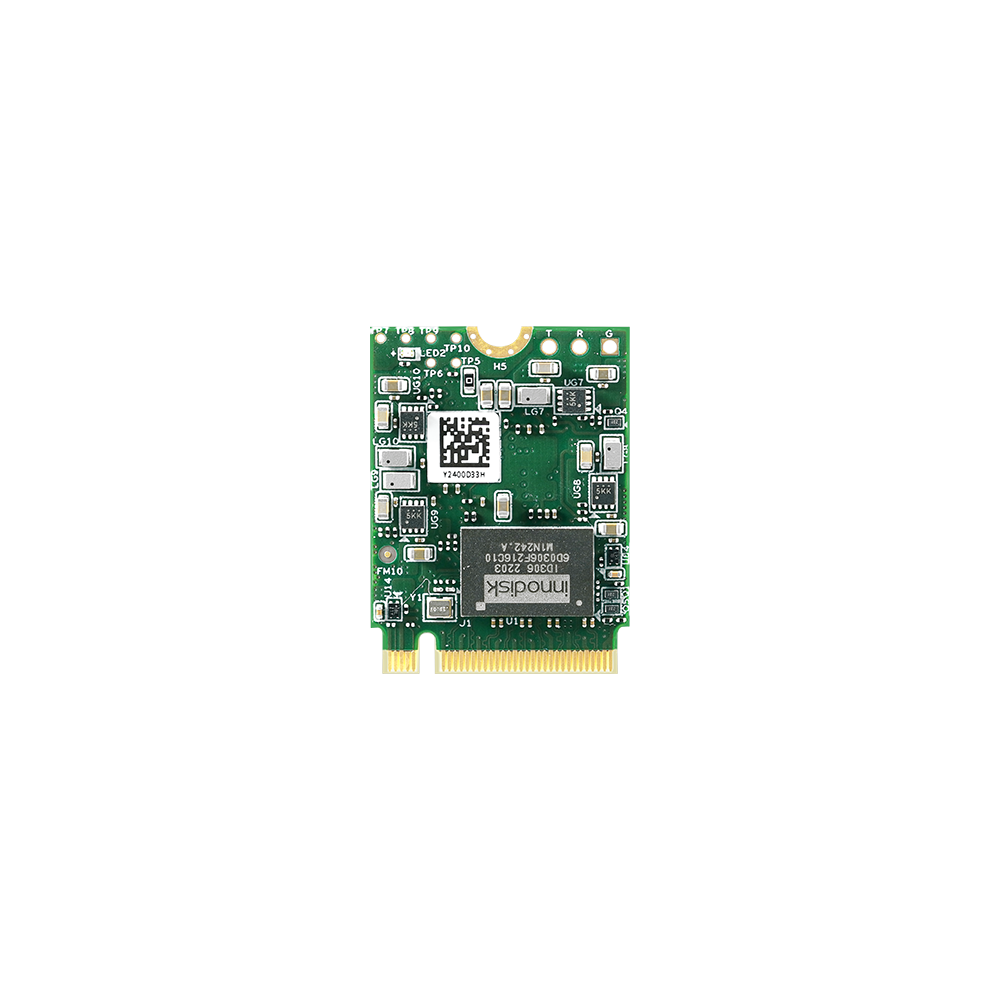

M.2 (P30) 4TE2

M.2

PCIe Gen4 Solution

Features

PCIe Gen 4 x4, NVMe 1.4
Excellent data transfer speed
Supports iPower Guard & iData Guard
256 bit AES hardware based encryption
Supports TCG Opal function (optional)

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (P30) 4TE2 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P30) 4TE2 supports PCIe Gen 4 x4 and it is compliant with NVMe 1.4 providing excellent top and also sustained performance. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash. It offers an ideal solution for embedded, automotive, medical, gaming and most industrial applications.

Innodisk M.2 (P30) 4TE2 is designed with AES engine, which is a built in controller. When controller receives the data package from host, AES engine encrypts the data package and saves the encrypted data into NAND Flash. Thus, unauthorized personal has no access to decrypt the data in NAND Flash.

SPECIFICATIONS

Model Name	M.2 (P30) 4TE2
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	M.2 2230 M Key
Capacity	128GB ~ 1TB
Sequential R / W (MB/sec, max.)	1,700 / 1,500
P/E Cycle	3,000
TBW (Max.)	852
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	3.1W
Max. Channels	2
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	S/T : 22.0 x 30.0 x 3.5 W/T with heatsink : 25.0 x 30.0 x 15.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DEM23-A28DF1KCADF	DEM23-A28DF1KWADFH
256GB	DEM23-B56DF1KCADF	DEM23-B56DF1KWADFH
512GB	DEM23-C12DF1KCADF	DEM23-C12DF1KWADFH
1TB	DEM23-01TDF1KCADF	--

For TCG Opal function, the PN Code 10th ~ 12th will be DF2.

For more information, please contact our support.
