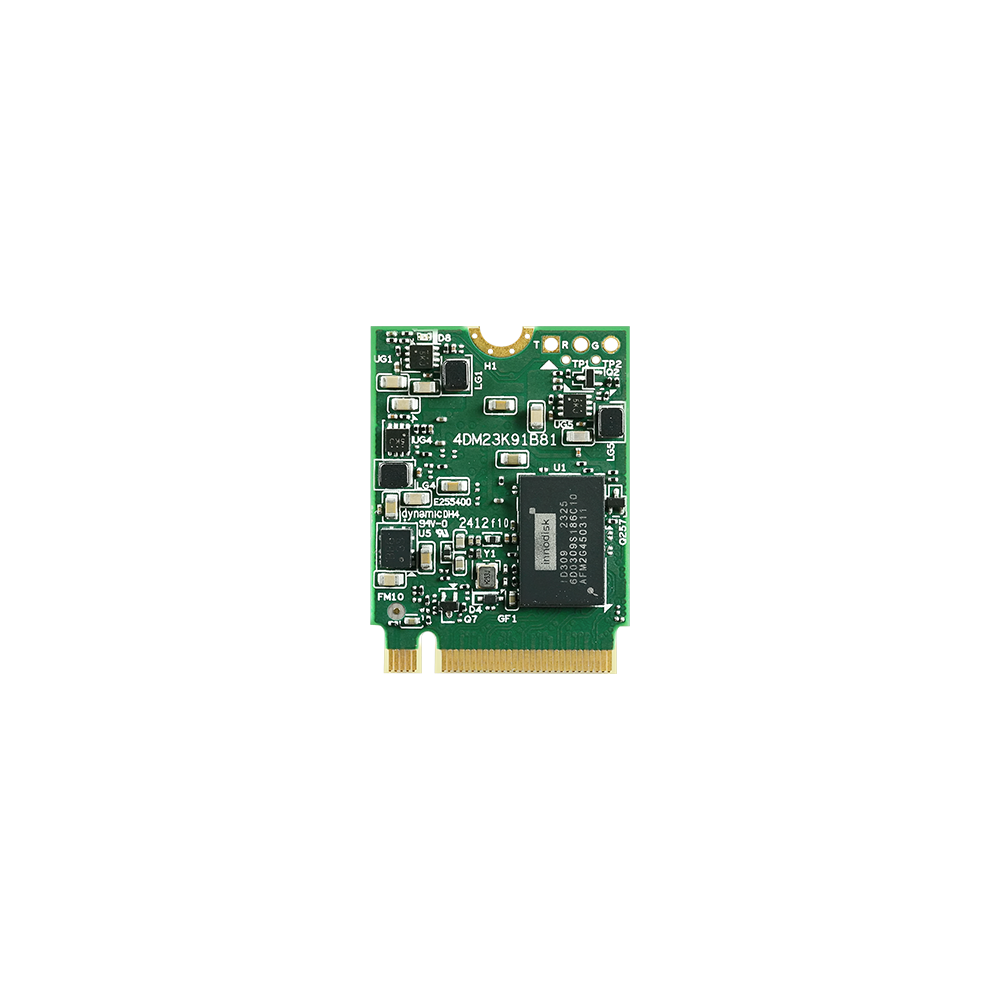

M.2 (P30) 4IE3

M.2

Ultra iSLC Solution

Features

Up to 100K P/E cycle, extending the lifespan by 33x
Utilizes Ultra iSLC Technology
Equipped with 112-layer 3D TLC NAND Flash
Supports temperature -40°C to 85°C
Supports dynamic thermal throttling for consistent SSD stability
5 years warranty and longevity commitment

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (P30) 4IE3 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. It features a PCIe Gen 4 x4 interface and 3D TLC NAND Flash while adhering to the NVMe 1.4 protocol, delivering exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, the M.2 (P30) 4IE3 provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	M.2 (P30) 4IE3
Flash Type	iSLC (3D TLC)
Interface	PCIe Gen 4 x4
Form Factor	M.2 2230 M Key
Capacity	40GB ~ 160GB
Sequential R / W (MB/sec, max.)	1,800 / 1,450
P/E Cycle	100,000
TBW (Max.)	1,978
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	3.3W
Max. Channels	4
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	Pure M.2 : 22.0 x 30.0 x 3.5 W/T with heat sink : 25.0 x 30.0 x 15.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
40GB	DHM23-40GDH1KCBDF	DHM23-40GDH1KWBDFH
80GB	DHM23-80GDH1KCBDF	DHM23-80GDH1KWBDFH
160GB	DHM23-A60DH1KCBDF	DHM23-A60DH1KWBDFH

For TCG Opal function, the PN Code 10th ~ 12th will be DH2.

For more information, please contact our support.
