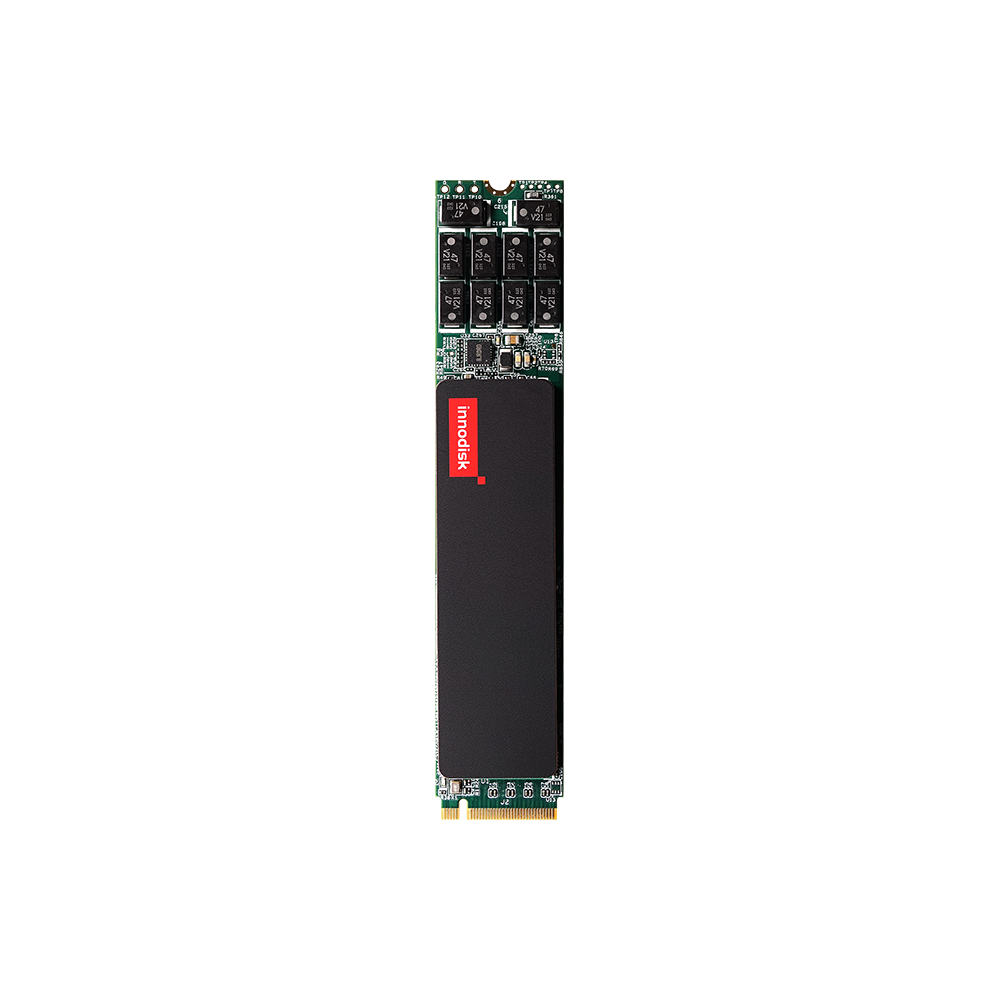

M.2 (P110) 4IG2-P

M.2

Ultra iSLC Solution

Features

• Up to 100K P/E cycle, extending the lifespan by 33x
• Utilizes Ultra iSLC Technology
• Equipped with 112-layer 3D TLC NAND Flash
• Supports temperature -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
• PLP (iCell) technology for power loss protection
• 5 years warranty and longevity commitment

Download Datasheet

Model Name

M.2 (P110) 4IG2-P

Flash Type

iSLC (3D TLC)

Interface

PCIe Gen 4 x4

Form Factor

M.2 22110 M Key

Capacity

160GB ~ 1.28TB

Sequential R / W (MB/sec, max.)

6,900 / 4,350

P/E Cycle

100,000

TBW (Max.)

85,506

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

10.2W

Max. Channels

8

External DRAM Buffer

?

Features

PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.

Dimension (W x L x H/mm)

Pure M.2 : 22.0 x 110.0 x 2.87 S/T with heat-spreading copper layer : 22.0 x 110.0 x 3.3 W/T with heat sink : 25.0 x 110.0 x 14.45

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years
