| Key Features
|
Intel® Elkhart lake CPU, VGA+HDMI?4*LAN, 2*USB3.1, 4*COM, 8-bit DIO, Audio out + Line in + Mic, mSATA + 2.5”SATA bay

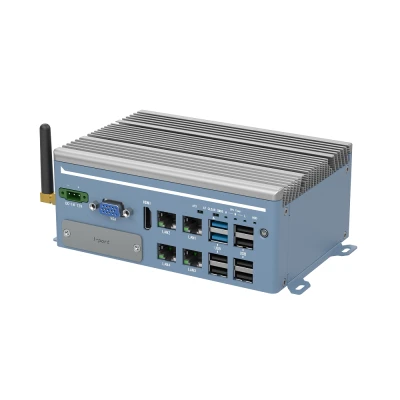

KMDA-2630 is a ULT fan-less and compact size box computer, powered by Intel Elkhart lake SoC Celeron 4 cores or dual-core CPU?supporting 2.5G network and dual USB3.1 gen2 10G High-speed ports. It has a multy IO interface?with fanless aluminum frame?which is cabinet and delicate?and also support wide power input, so it is suitable for machine vision, AGV/ARM, self service terminal and other fields.
Specification
CPU | Intel® Elkhart lake SoC CPU?Celeron J6412 2.0-2.6GHz 4 cores 4 threads?Celeron N6210 1.2-2.6GHz 2 cores 2 threads |
System memory | 1*DDR4 SO-DIMM , 3200MHz, up to 32GB |
Expansion | 1*M.2 B-key 3052, with PCIe X1+USB2.0+SIM slot?support 5G RN or 4G LTE module? 1*Full size Mini PCIe, PCIe X1 signal |
Graphics | Intel Gen11 UHD Graphics, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG ,VP8?HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8, VP9 HDMI2.0 max res. 4096*2304@60Hz VGA max res. 1920*1200@60Hz |
Audio | Realtek ALC897 controller, supports 5.1 channel |
LAN | 2*Intel I226V PCIe Gig. Ethernet, 10/100/1000/2500Mbps, support WOL 2*Realtek 8111H Gig. Ethernet?10/100/1000Mbps self-adapt |
Storage | 1*2.5”SATA3.0(6.0Gbps) bay?1*full size mSATA?support AHCI |
I/O Interface | Front I/O?1*HDMI+1*VGA; 4*LAN(RJ45)?2*USB3.1(Type A), 2*USB2.0(Type A) ) + 4*USB2.0(Type A, 5V System, 1A) Back I/O?2*RS232/422/485 (DB9 male), 2*RS232(DB9 male)?1*8-bit DIO (DB9 male )? 1*Audio out + 1*Line in + 1*Mic (3.5mm phone jack) Side & internal?1*SIM?side?; 1*USB2.0(Type A internal? |
I-port | Support internal 1*USB2.0 or M.2 3052 and ect expansion module |
LED | 1*Power LED, 1*HDD LED, 3*CPU temp LED?Red is warning , Yellow is high, Green is normal? |
Control SW | 1*Power button w/LED?1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW |
Power supply | DC 12V or DC 9-36V wide power input , with short circuit, over voltage and over current protection , 1*3-pin phoenix term, TDP: 26.4W ?J6412 CPU/4G DDR4/64G SSD? |
Watchdog timer | Watchdog timeout programmable via software 1 to 255 second |
OS | Windows 10 64 bit, SUSE, Ubuntu, Wind River, Linux |
Mechanical | SGCC chassis, Aluminum frame |
Color | Dove blue + traffic white |
Mounting | Desk mounting |
Dimension | (W*H*D)?162*111.8*65 mm |
Net weight | 1.32 kg |
Operating temperature | -20?60?, wide temp SSD, airflow |
Storage temperature | -40°C~85°C |
Storage humidity | 10~95%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
Shock | 50g peak acceleration (11ms duration)(SSD); 20g peak acceleration (11ms duration)(HDD) |
EMC and Certificationw | CE/FCC Class A |
