| Key Features - Compact Aluminum Chassis, Fanless Design
- Intel® Apollolake Pentium/Celeron Soc CPU
- 1*DDR3L 1866MHz SODIMM, up to 8GB
- 1*DP, 1*HDMI, Dual 4K display
- 4*Intel I211-AT PCIe Gig. LAN
- 2*USB3.0, 5*USB2.0,6*COM, 8 bit DIO
- 1*M.2 2242 B-key,1*mSATA
- 1*2.5" SATA3 driver Bay
- DC 9~36V Wide Power Input
Datasheet |
KMDA-2620 | Fanless Embedded Box Computer
Intel® Apollolake Soc CPU, 4*LAN, 6*COM, 7*USB, 8-bit DIO, dual 4K display, DC-IN 9~36V, CPU Temp. show in LED, Compact design.

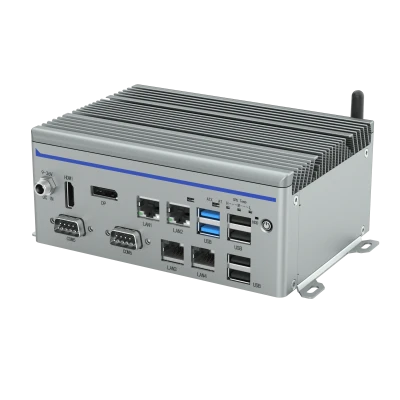

KMDA-2620 is a compact dimension embedded box computer with PCB to PCB multiple structure and fanless design. It Powered by Intel® Apollolake Pentium/Celeron Soc CPU, DDR3L 1866MHZ SODIMM memory up to 8GB. 4 Gig. LAN, 2*USB3.0, 5*USB2.0(1 inside), HDMI and DP dual 4K display, 8-bitDIO,1*M.22242B-key,1*mSATAand1*2.5"SATA bay.DC 9-36V wide power input, Operating temperature showing in LED, economical and reliable, it will be fit for IoT terminal and manufacture application.
Specification
System
| | CPU | Intel® Apollolake Pentium/Celeron Soc CPU | | System Memory | 1*DDR3L 1866MHz SODIMM, up to 8GB | | Expansion | 1*M.2 2242 B-key w/ PCIeX1 and USB+SIM slot, support 4G LTE/Wifi/BT ect.? 1*Full size mSATA w/ USB2.0; | | Graphics | Gen.9th Intel® HD Graphics. The Max resolution, DP: 4096*2160@60Hz; HDMI: 3840*2160@30Hz; Support OpenGL 4.3, DirectX 11, OpenCL 2.0, MPGE2, H.265 | | Audio | Realtek ALC662VD High Definition Audio, support 5.1 channel | | LAN | 4*Intel I211AT PCIe Gigabit Ethernet, Integrated 10/100/1000M transceiver | | Keyboard/mouse | USB keyboard and mouse | | Storage | 1*2.5" HDD bay, SATA3 6.0Gbps, cooling by aluminum cover; 1*mSATA full size, dual AHCI | | DIO | 8-bit TTL singal, programmable input and output | | I-port | Optional 1*USB2.0 or Mini PCIe module I/O ports?such as CAN Bus, Gig LAN etc.? | | I/O ports | 4*RJ45 w/LED Gig-LAN (Front)
2*USB3.0 Type A (Front); 4*USB2.0 Type A(Front) ,1*USB2.0 Type A(Inside)
1*DB9 connector 8bit DIO (Rear)
4*RS232/422/485 DB9 male (Rear), 2*RS232 DB9 male (Front)
1*HDMI(Front) +1*DP (Front); 1*Audio-out 3.5mm phone jack(Rear) 1*2pin terminal connector, with power sw signal(Rear) | | LED | 1*Power LED, 1*HDD LED, 3*CPU term. LED?Red is warning , Yellow is high, Green is normal) | | Control SW | 1*Power button (Front); 1*2pin ter. power-on signal(Rear), 1*AT/ATX Select dip(Front)DC 9~36V | | Power Supply | Input, D-Jack with M8 screw (Front?; Consumption TDP:12V/1.67A(E3940 CPU,4G DDR3L) | | Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | | OS Support | Windows 10, Linux Fedora Ubuntu |
|
Mechanical
| | Structure | Top/bottom aluminum chassis, SGCC frame | | Color | Silver | | Mounting | Desktop and VESA 100*100mm mounting | | Dimension | (W*H*D)?155*111.8*65mm | | Net weight | 1.3kg |
|
Environmental | | Operating temperature | -20°C~65°C –Fanless with wide operating temp.SSD, airflow
-10°C~55°C –Fanless with HDD, airflow | | Storage Temperature | -40°C~85°C | | Storage Humidity | 10~90%@40°C, Non-condensing | | Vibration | 5 grms/5~500Hz/ random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) | | Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | | Certification/EMC | CE/FCC Class A |
|
