JPM610A-R8

alvasta-tech.com / Enterprises / Black Box KVM / Jacks, Panels, & Hardware / Rackmount / JPM610A-R8 /

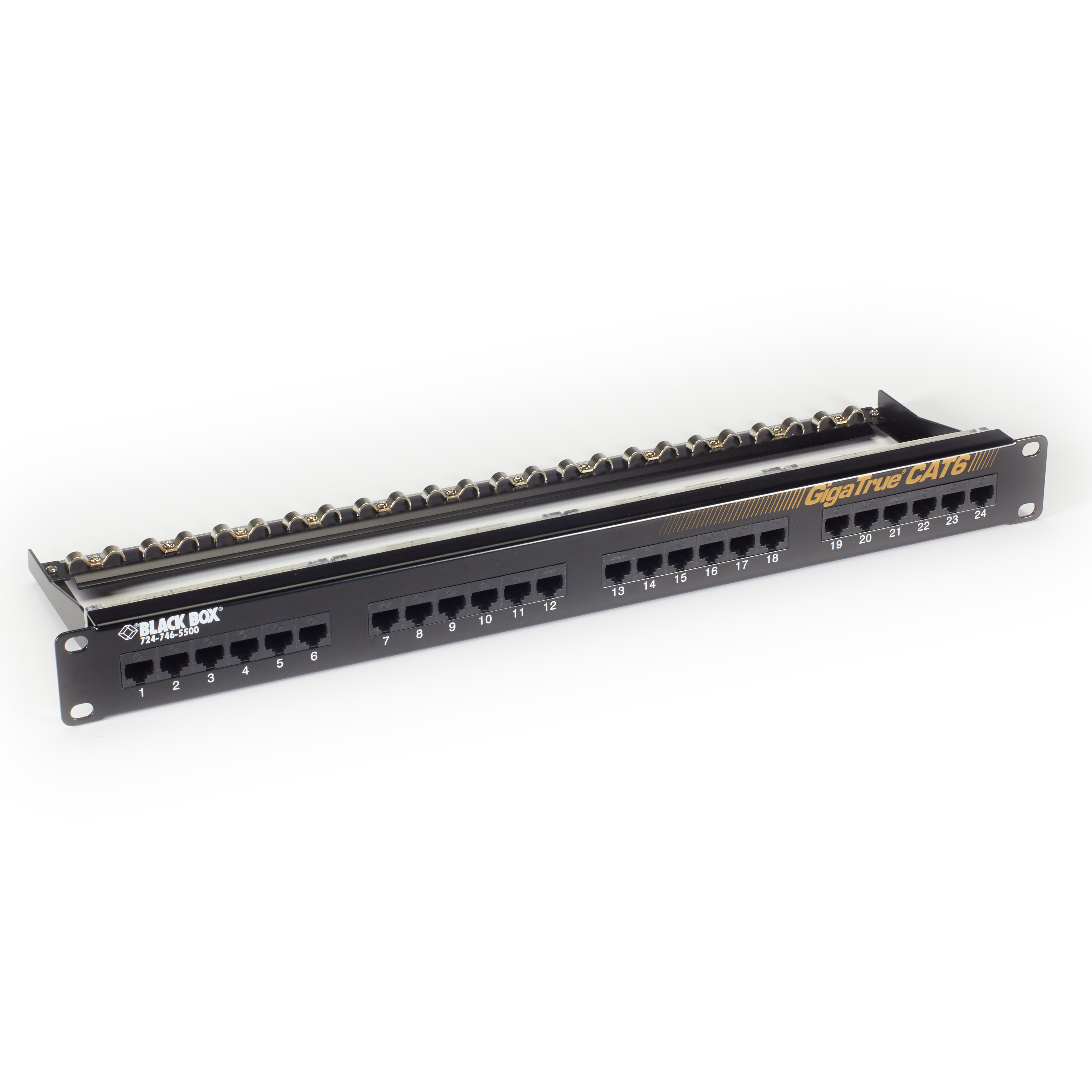

GigaTrue® CAT6 Patch Panel - 1U, Unshielded, 24-Port

PRODUCT FEATURES

  • Component level provides better performance and stability in the overall channel
  • Includes cable management bars that make organization easier
  • Designed for use in our ETL-Verified GigaTrue® channel
  • Meets or exceeds ANSI/TIA/EIA-568-C CAT6 component performance

DETAILS

  • Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6.
  • Includes cable management bars that make organization easier.
  • Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications.
  • Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz.
  • Universal wiring - panel is supplied with labeling for both T568A and T568B.
  • Paired punchdown sequence enables pair twist within 1-2" of termination.
  • Redesigned IDC 110 block features peaks to make lacing cable easier.
  • Rolled-edge construction provides superior panel rigidity to eliminate flex during termination.
  • Includes cable ties and mounting hardware.


SPECIFICATION

Item Specifications
ReplacesJPM610A-R7
Weight1.5 lb. (0.7 kg)
Dimensions1.75"H (1U) x 19"W x 1.25"D (4.4 x 48.3 x 3.2 cm)

Product Includes:

  • CAT6 Panel
  • Cables Ties
  • (4) 10-32
  • (4) 12-24 cup heads screws
  • Stuffer caps
  • (1) Cable Support bar
  • Manual
