ITMH100

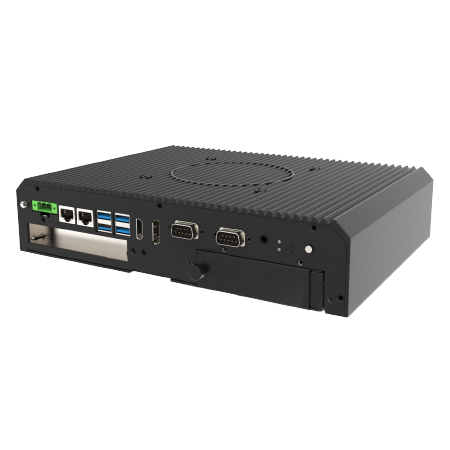

Intel® Core™ i5-1135G7 rugged Box PC

KEY FEATURES

• Intel® Tiger Lake UP3 Core™ i5-1135G7 rugged Box PC
• Multi Video Output, HDMI/DisplayPort
• Auto detection of the connected display, No settings necessary
• Quick & Easy Replaceable Hard Disk Design, No Tools required
• Support wide range 9-29V DC input
• Optional with Modular front Display as a Panel PC

Download Datasheet

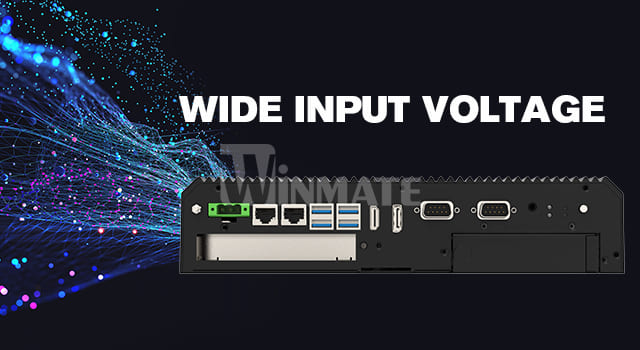

Wide range 9~29V DC input power supply design, applications in ground-borne industrial or on-board mobile applications.

The ITMH100 operates over an input voltage range of 9 to 29V and provides high-efficiency, positive-to-negative voltage conversion for loads of up to 4A.

Multi Video Output, HDMI/DisplayPort

Features a powerful multi-video output function and supports various combinations of portrait and landscape screens to perfectly fit your
digital signage applications. You can select three signal output modes:
HDMI, DP, and 4xUSB3.2Gen1 (Type A).

Fanless Tiger Lake UP3 embedded box PC targets industrial IoT, robotics & automation

Tiger Lake UP3 embedded box PC is equipped with a choice of Core processors with support for Iris Xe graphics, 2.5GbE, TSN networking that makes it suitable for factory automation, robotics, smart retail, and any IoT/Industry 4.0 applications.

Fanless Cooling System

We use well-defined thermal analysis procedures to verify IPC systems
to meet the harsh environment applications. Especially in fanless cooling design, we develop a heat-sink or heat-pipe solution to conduct the heat and the airflow for the best thermal solution. In the fan cooling system, we will analyze the system thermal profiles before we design it to make sure the most efficient heat convection.
