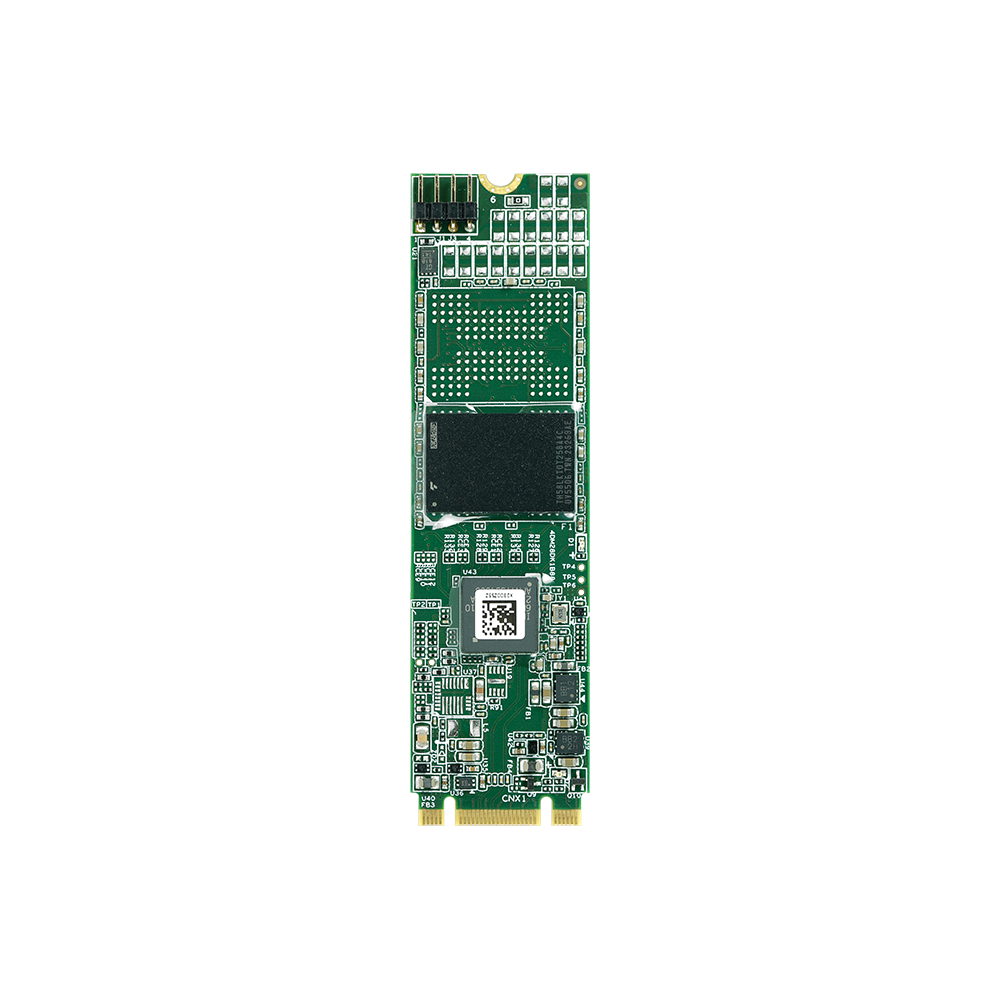

InnoOSR M.2 (S80) 3TO7

M.2

World's First SSD for System Recovery

Features

Supports hardware GPIO and software-based triggering
Includes firmware-level backup to ensure seamless compatibility and system reliability
Offers a convenient one-click recovery feature for quick and efficient restoration.

BORN FOR SUPERIOR PERFORMANCE

Innodisk InnoOSR M.2 (S80) 3TO7 offers high-capacity flash memory, supporting up to SATA III (6.0Gb/s) speeds. The InnoOSR family features single-device, firmware-level LBA OS and data backup, enabling effortless on-site recovery through GPIO triggering or application commands. With its intuitive design, full recovery is just a click away.

SPECIFICATIONS

Model Name	InnoOSR M.2 (S80) 3TO7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	64GB ~ 2TB
Sequential R / W (MB/sec, max.)	550 / 500
P/E Cycle	3,000
TBW (Max.)	1,200
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.6W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Series	InnoOSR
Dimension (W x L x H/mm)	Vertical pin headers : 22.0 x 80.0 x 8.05 Horizontal pin headers : 22.0 x 80.0 x 4.15
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
64GB	DUM28-64GDK1EC*DFXXG	DUM28-64GDK1EW*DFXXG
128GB	DUM28-A28DK1%C*&FXXG	DUM28-A28DK1%W*&FXXG
256GB	DUM28-B56DK1%C*QFXXG	DUM28-B56DK1%W*QFXXG
512GB	DUM28-C12DK1%C*QFXXG	DUM28-C12DK1%W*QFXXG
1TB	DUM28-01TDK1%C*QFXXG	DUM28-01TDK1%W*QFXXG
2TB	DUM28-02TDK1KC*QFXXG	DUM28-02TDK1KW*QFXXG

%. E : 64 layers 3D TLC / K : 112 layers 3D TLC
*. A : Horizontal Pin Headers / B : Vertical Pin Headers
&. S : 1 channel / D : 2 channels / Q : 4 channels
XXG : 10G ~ 30G, 60G, or 90G
