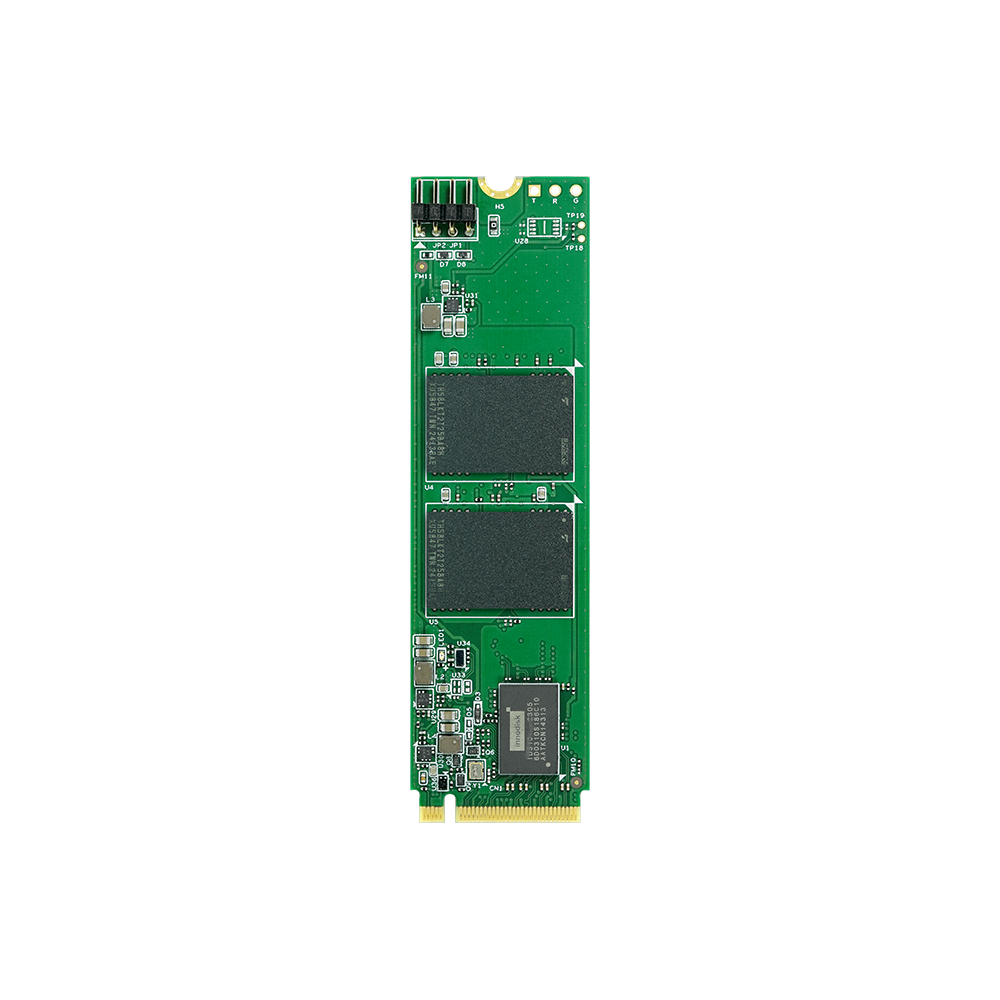

InnoOSR M.2 (P80) 3TO8

M.2

World's First SSD for System Recovery

Features

PCIe Gen 3 x4, NVMe SSD
Kioxia 3D TLC NAND
Supports hardware GPIO and software-based triggering
Includes firmware-level backup to ensure seamless compatibility and system reliability
Offers a convenient one-click recovery feature for quick and efficient restoration

BORN FOR SUPERIOR PERFORMANCE

Innodisk InnoOSR M.2 (P80) 3TO8 offers high-capacity flash memory, supporting PCIe Gen 3 x4 . The InnoOSR family features single-device, firmware-level LBA OS and data backup, enabling effortless on-site recovery through GPIO triggering or application commands. With its intuitive design, full recovery is just a click away.

SPECIFICATIONS

Model Name	InnoOSR M.2 (P80) 3TO8
Flash Type	3D TLC
Interface	PCIe Gen 3 x4
Form Factor	M.2 2280 M Key
Capacity	128GB ~ 2TB
Sequential R / W (MB/sec, max.)	3,550 / 2,700
P/E Cycle	3,000
TBW (Max.)	2,304
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	5.8W
Max. Channels	4
External DRAM Buffer	N
Features	AES, S.M.A.R.T.
Series	InnoOSR
Dimension (W x L x H/mm)	Horizontal pin header: 22.0 X 80.0 X 4.15 Vertical pin header: 22.0 X 80.0 X 8.7
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)
128GB	DUM28-A28DS1KC*DFXXG
256GB	DUM28-B56DS1KC*QFXXG
512GB	DUM28-C12DS1KC*QFXXG
1TB	DUM28-01TDS1KC*QFXXG
2TB	DUM28-02TDS1KC*QFXXG

*: A : Horizontal Pin Headers / B : Vertical Pin Headers
XXG: 10G, 20G, 30G, 60G or 90G

For more information, please contact our support.
