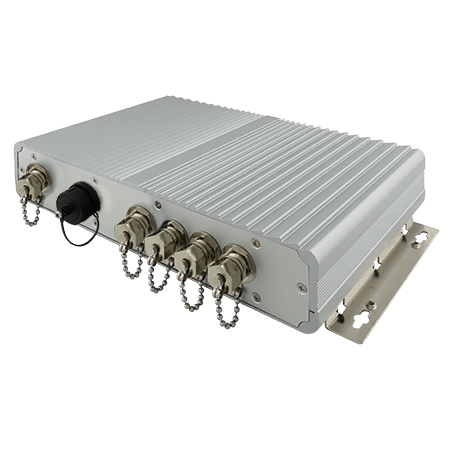

F65EAC-IW32

Full IP65 rugged embedded pc with M12 connector, Intel® Core™ i5-8265U

KEY FEATURES

• Full IP65 rugged embedded pc, Aluminum Profile with Fin
• Ultra compact size with Fanless Design, Box PC with M12 connector
• Support M.2 SSD
• One M.2 socket expansion
• 9~36V DC with isolation
• 8th Generation (Whiskey Lake) Intel® Core™i5-8265U Processor
• M12 waterproof connector

Download Datasheet

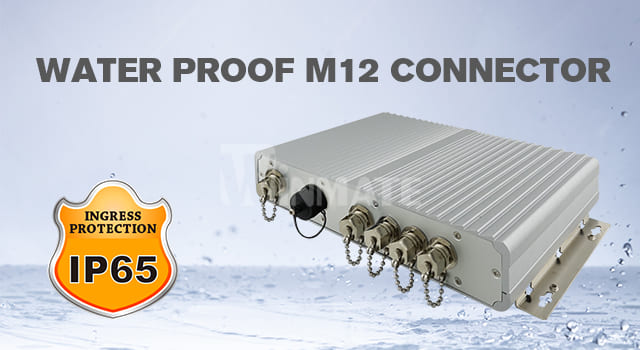

M12 Connectors Ensure Waterproof Industrial Solution

For industrial applications that require a reliable waterproof computing system, the IP65 system’s I/O ports are equipped with M12 connectors. The advantages of M12 connectors for industrial cabling include easy assembly, compact size, and secure connection even under shock or vibration.

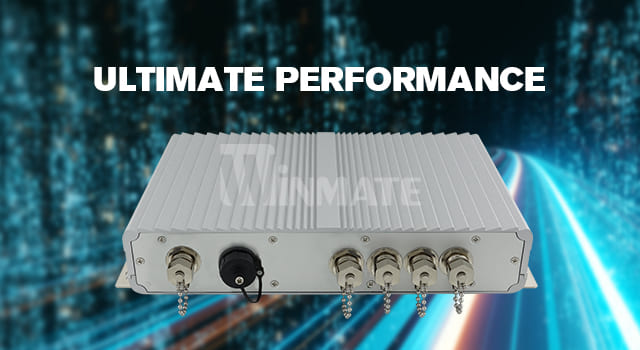

High-Performance Motherboard, 7/24 Continuous Operation

To ensure easy flexible deployment, the built-in Intel® processor is compatible with wide operating temperature (-0 ~ 50 °C) and input voltage (9 ~ 36 V).

Full Aluminum Alloy Enclosure, Compact, Low weight design, Excellent Heat Dissipation

Like the other Winmate series products, Box PC with IP65 also features a low-power, fanless design for superior energy efficiency, quiet operation, and an extended product lifecycle.

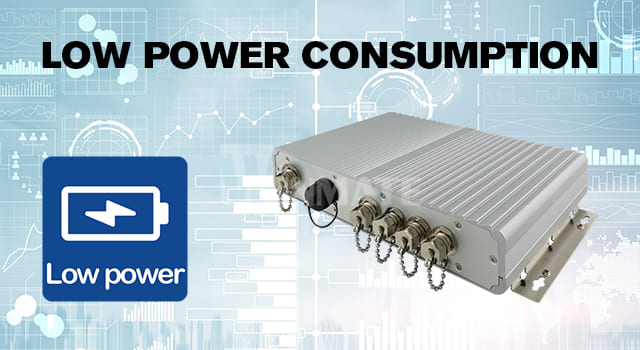

Sealed Construction full IP65 Waterproof, Fanless, Noiseless, Low-power Consumption Design

Built to provide a high-performance Box PC that can be employed in harsh industrial environments. To ensure optimal operation under extreme conditions, the corrosion-resistant stainless steel enclosure is IP65 rated for resistance to water and dust ingress, providing sufficient protection in exposure to chemicals or lousy weather.
