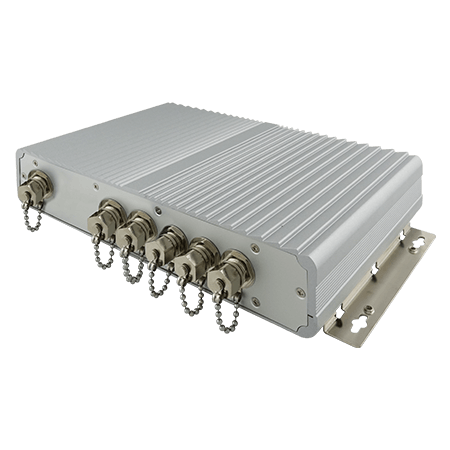

F65EAC-IK32

Full IP65 Box IPC, Intel® Core™ i5-7200U

KEY FEATURES

• Aluminum Profile with Fin, Full IP65 Box IPC
• IP65 Ultra compact size with Fanless Design
• Support M.2 SSD
• One M.2 socket expansion
• 9~36V DC with isolation
• 7th Generation (kaby Lake) Intel® Core™ i5-7200U Processor

Download Datasheet

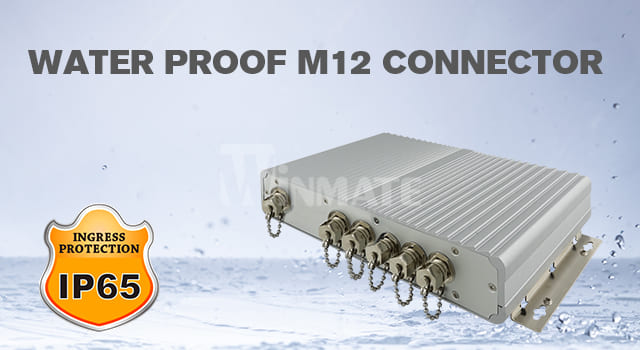

M12 Connectors Ensure Waterproof Industrial Solution

For industrial applications that require a reliable waterproof computing system, the IP65 system's I/O ports are equipped with M12 connectors. M12 connectors' advantages for industrial cabling include easy assembly, compact size, and secure connection even under shock or vibration.

The Winmate Box PCs are built to serve fields' requirements to extend and individualize PCs to accommodate needs that are commonly distinct to their certain apps. With a wide variety of I/O support, package Box PCs await Market 4.0, created to support AI services for device vision and pc knowing applications. Expansion slots permit effortless maintenance and personalization.

As is standard along with the inserted Computers, the Winmate Box PCs are constructed to stand up to the severe atmospheres of industrial 4.0, with extended operating voltage and temperature variations. Moreover, processor chip array from 7th and 8th production Intel® Core™ CPUs, ensuring the Winmate Box PCs can efficiently deliver the power for any function.

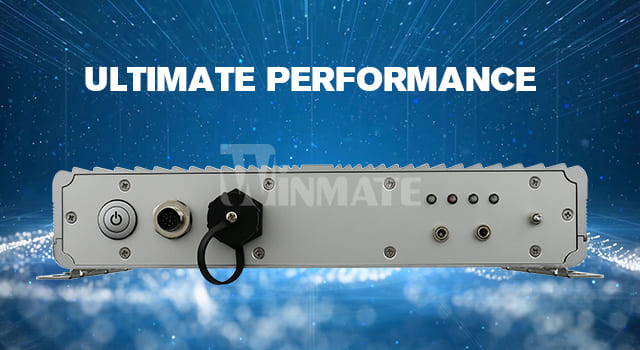

High-Performance Motherboard, 7/24 Continuous Operation

The built-in Intel® processor is compatible with wide operating
temperature (-0 ~ 50 °C) and input voltage (9 ~ 36 V) to ensure,
easy, flexible deployment. The system CPU operates at a clock
speed of up to 3.1 GHz, supplemented by a maximum of 16 GB
DDR4-2133 SO-DIMM RAM on one socket. Multiple I/O interfaces
, such as an expansion slot Mini-PCIe, allow configurable
applications and additional functions. With two USB ports, one
COM port, and two Intel Gigabit Ethernet ports, there is a wide
range of interfaces for input and output. The system has an
RS-232 port, and a SIM card slot is also integrated as a serial
connection. An mSATA SSD drive can be connected to the
embedded computer via a SATA III port as mass storage. A
corresponding microSD slot is available for connecting a
microSD card. According to the order, the drives are configured
before the system is delivered. A voltage range powers the
computers from 9 VDC to 36 VDC. The professional Winmate
Full IP65 BOX PC series computers operate at an operating
temperature between 0 °C and 50 °C as standard.

Full Aluminum Alloy Enclosure, Compact, Low weight design, Excellent Heat Dissipation

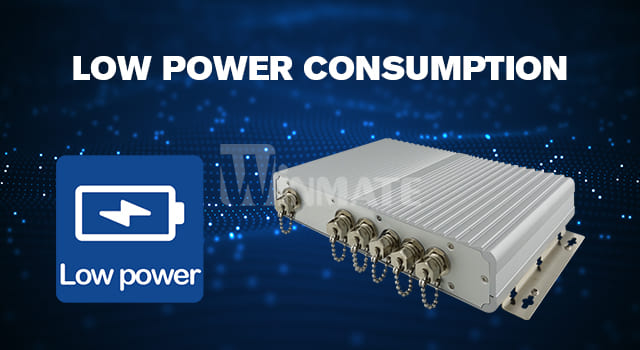

Like the other Winmate series products, Box PC with IP65 also features a low-power, fanless design for superior energy efficiency, quiet operation, and an extended product lifecycle.

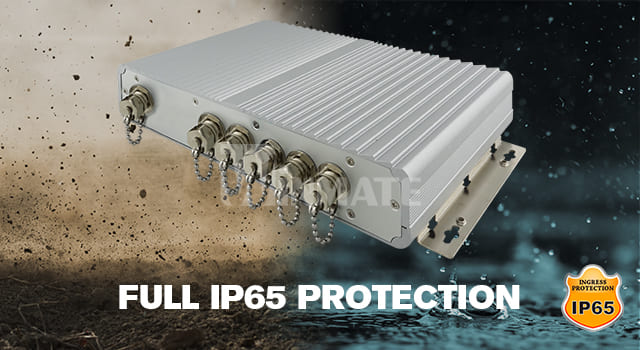

Sealed Construction complete IP65 Waterproof, Fanless,
Noiseless, Low-power Consumption Design

It was built to provide a high-performance Box PC that can be
employed in harsh industrial environments. To ensure optimal
operation under extreme conditions, the corrosion-resistant
stainless steel enclosure is IP65 rated for water and dust
ingress resistance, providing sufficient protection in exposure
to chemicals or lousy weather.

The Winmate Full IP65 BOX PC provides you with a professional
modular embedded computer system with impressive computing
power. The Full IP65 system with Intel Core i5-7200U Kaby Lake
processor features Intel® HD Graphics 620 graphics and impresses
with its outstanding CPU performance as well as its minimal
power dissipation. The optimal interaction of the microprocessor
with the external devices is given by using the Mini PCIe slot and the extensive digital I/O interfaces. Thus, the intelligent embedded
computers of the Winmate Full IP65 BOX PC series show high flexibility and reliability for solutions in the context of industrial automation. The particular suitability of cost-efficient computers lies in multi-screen applications and computer-intensive image processing. In addition to intelligent transport systems, various applications in facility management and automation technology are seen as ideal areas of use.
