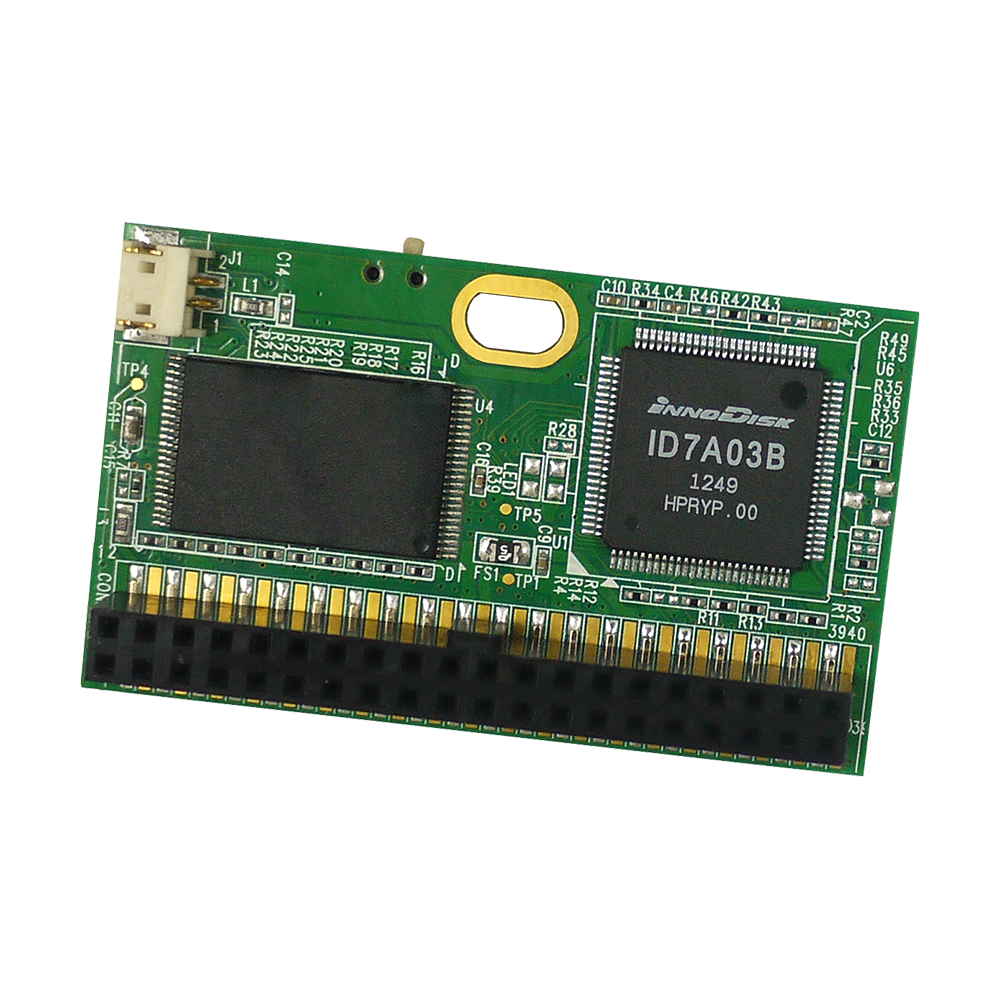

EDC 4000 Horizontal

Embedded Disk Card

512MB ~ 8GB

Features

Supports static wear leveling algorithm
S.M.A.R.T. & iSMART supported
Intelligent system for error recovery
High reliability & compatibility
Mechanical design for anti-vibration
Enhanced power cycling

BORN FOR SUPERIOR PERFORMANCE

Innodisk’s horizontal EDC 4000 fits into any platform with an IDE connector and provides a simple, fast path upgrade. Designed for industrial embedded applications that require a speedy booting process, the EDC 4000 upgrades the working environment efficiently and enhances data transfer rates with read and write performances of up to 40MB and 28MB per second, respectively. The horizontal EDC 4000 comes in capacities ranging from 512MB to 8GB and is available in 40-pin and 44-pin horizontal connector packages.

SPECIFICATIONS

Model Name	EDC 4000 Horizontal
Flash Type	SLC
Interface	PATA
Form Factor	Embedded Disk Card
Capacity	512MB ~ 8GB
Sequential R / W (MB/sec, max.)	40 / 28
P/E Cycle	60,000
TBW (Max.)	--
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	3.3V / 5V
Max. Channels	2
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	40-pin : 55 x 32.4 x H (H : A = 12.8?B = 9?C = 11.9?D = 14.6?E = 18.2?F = 18.2) 44-pin : 48 x 32.6 x H (H : A = 7?B = 7.2?C = 10?D = 9.9?E = 12.9?F = 12.9)
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
512MB	DE*P%-512D31C1SB	DE*P%-512D31W1SB
1GB	DE*P%-01GD31C1SB	DE*P%-01GD31W1SB
2GB	DE*P%-02GD31C1SB	DE*P%-02GD31W1SB
4GB	DE*P%-04GD31C1SB	DE*P%-04GD31W1SB
8GB	DE*P%-08GD31C1SB	DE*P%-08GD31W1SB

*: 0 = 40-pin / 4 = 44-pin
% = A ~ F, refer to horizontal Type A ~ F, see the detailed mechanism in TPS.

For more information, please contact our support.
