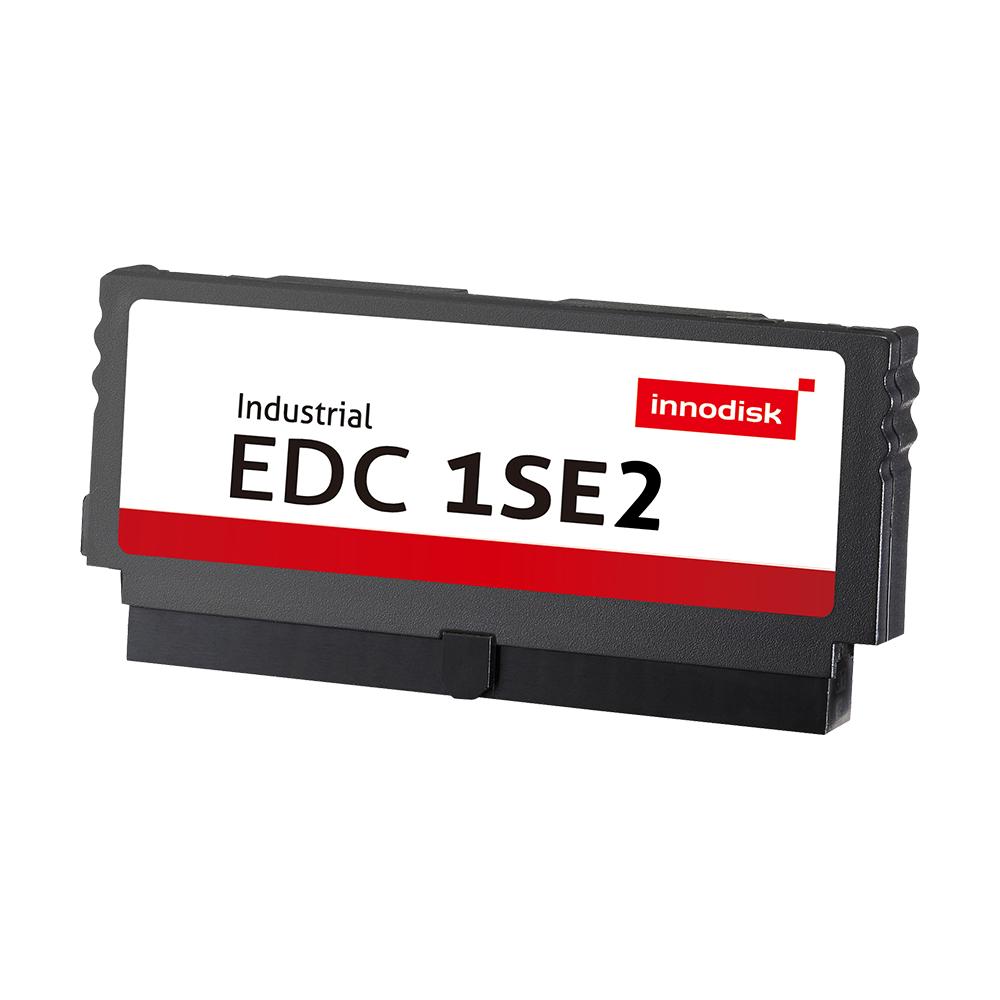

EDC 1SE2 Vertical

Embedded Disk Card

8GB ~ 32GB

Features

iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Write Protection security
Enhanced power cycling management

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Embedded Disk Card 1SE2 (EDC 1SE2) products provide high-capacity solid-state Flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. Innodisk Embedded Disk Card 1SE2 (EDC 1SE2) is an embedded solid-state data storage system for industrial workplaces. Embedded Disk Card 1SE2 (EDC 1SE2) features an extremely lightweight, reliable, low-profile form factor.

Embedded Disk Card 1SE2 (EDC 1SE2) supports advanced PIO (0-6), Multi-word DMA (0-4), Ultra DMA (0-6) transfer modes, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	EDC 1SE2 Vertical
Flash Type	SLC
Interface	PATA
Form Factor	Embedded Disk Card
Capacity	8GB ~ 32GB
Sequential R / W (MB/sec, max.)	110 / 75
P/E Cycle	60,000
TBW (Max.)	--
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.76V
Max. Channels	2
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	50.3 x 27.3 x 5.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEE4H-08GD53AC1DB	DEE4H-08GD53AW1DB
16GB	DEE4H-16GD53AC1DB	DEE4H-16GD53AW1DB
32GB	DEE4H-32GD53AC1DB	DEE4H-32GD53AW1DB

For more information, please contact our support.
