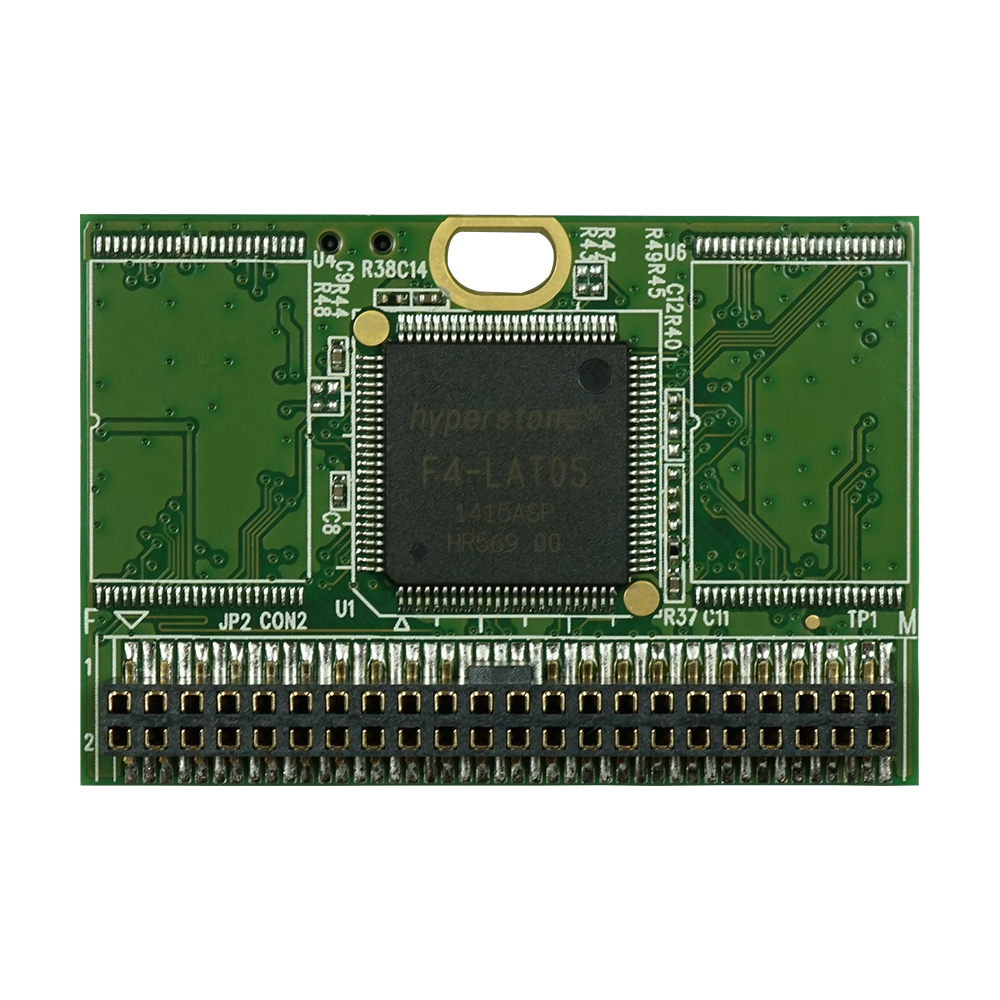

EDC 1SE Horizontal

Embedded Disk Card

512MB ~ 8GB

Features

iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Write Protection security
Enhanced power cycling management

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Embedded Disk Card 1SE (EDC 1SE) products provide high-capacity solid-state Flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. Innodisk Embedded Disk Card 1SE (EDC 1SE) is an embedded solid-state data storage system for the industrial workplace. Embedded Disk Card 1SE (EDC 1SE) features an extremely lightweight, reliable, low-profile form factor.

Embedded Disk Card 1SE (EDC 1SE) supports advanced PIO (0-4), Multi-word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	EDC 1SE Horizontal
Flash Type	SLC
Interface	PATA
Form Factor	Embedded Disk Card
Capacity	512MB ~ 8GB
Sequential R / W (MB/sec, max.)	40 / 28
P/E Cycle	60,000
TBW (Max.)	--
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.76V
Max. Channels	2
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	48.0 x 32.6 x 7.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
512MB	DE4P%-512D41AC1SB	DE4P%-512D41AW1SB
1GB	DE4P%-01GD41AC1DB	DE4P%-01GD41AW1DB
2GB	DE4P%-02GD41AC1DB	DE4P%-02GD41AW1DB
4GB	DE4P%-04GD41AC1DB	DE4P%-04GD41AW1DB
8GB	DE4P%-08GD41AC1DB	DE4P%-08GD41AW1DB

% = A ~ F, refer to horizontal Type A ~ F, see the detailed mechanism in TPS.

For more information, please contact our support.
