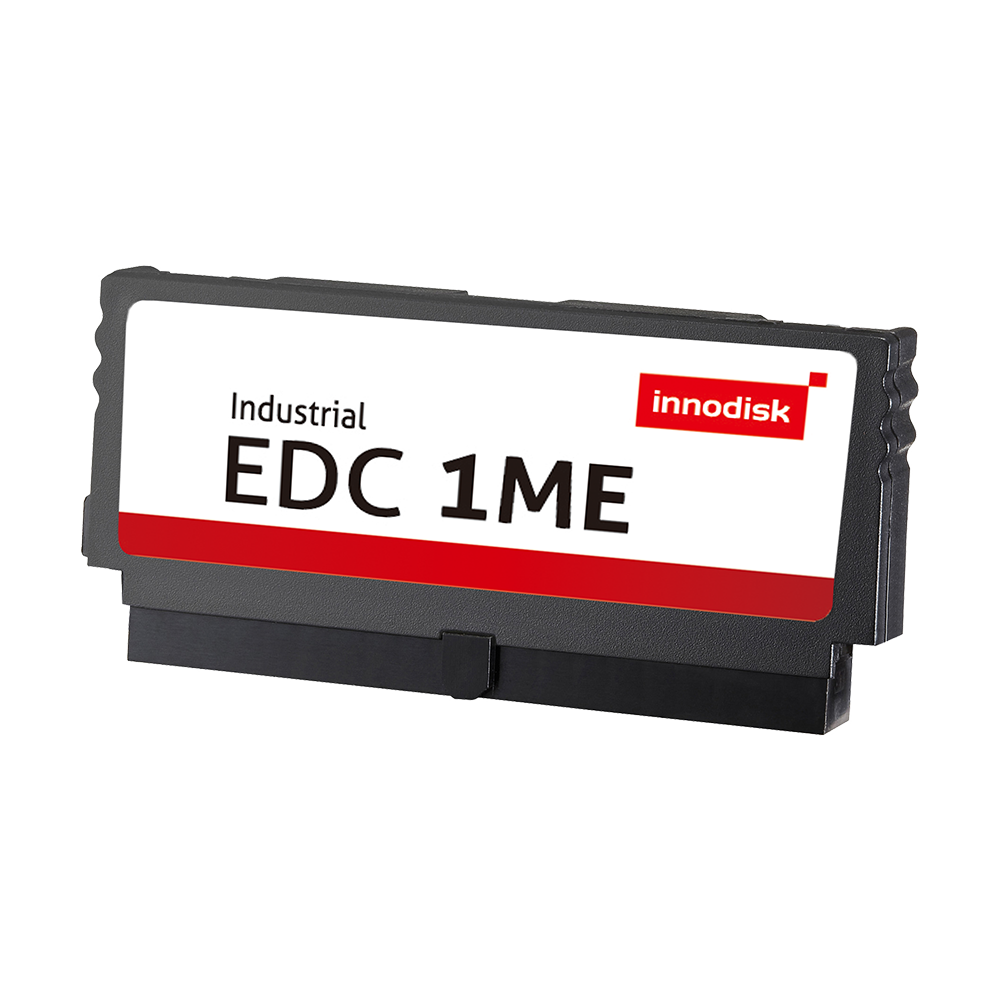

EDC 1ME Vertical

Embedded Disk Card

4GB ~ 128GB

Features

iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Write Protection security
Enhanced power cycling management

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Embedded Disk Card 1ME (EDC 1ME) products provide high-capacity solid-state Flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. Innodisk Embedded Disk Card 1ME (EDC 1ME) is an embedded solid-state data storage system for the industrial workplace. Embedded Disk Card 1ME (EDC 1ME) features an extremely lightweight, reliable, low-profile form factor.

Embedded Disk Card 1ME (EDC 1ME) supports advanced PIO (0-6), Multi-word DMA (0-4), Ultra DMA (0-6) transfer modes, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	EDC 1ME Vertical
Flash Type	MLC
Interface	PATA
Form Factor	Embedded Disk Card
Capacity	4GB ~ 128GB
Sequential R / W (MB/sec, max.)	110 / 75
P/E Cycle	3,000
TBW (Max.)	--
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.76W
Max. Channels	2
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	50.3 x 27.3 x 5.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
4GB	DEE4H-04GD53RC1SC	DEE4H-04GD53RW1SC
8GB	DEE4H-08GD53BC1SC	DEE4H-08GD53BW1SC
16GB	DEE4H-16GD53BC1SC	DEE4H-16GD53BW1SC
32GB	DEE4H-32GD53BC1DC	DEE4H-32GD53BW1DC
64GB	DEE4H-64GD53BC1DC	DEE4H-64GD53BW1DC
128GB	DEE4H-A28D53BC1DC	DEE4H-A28D53BW1DC
