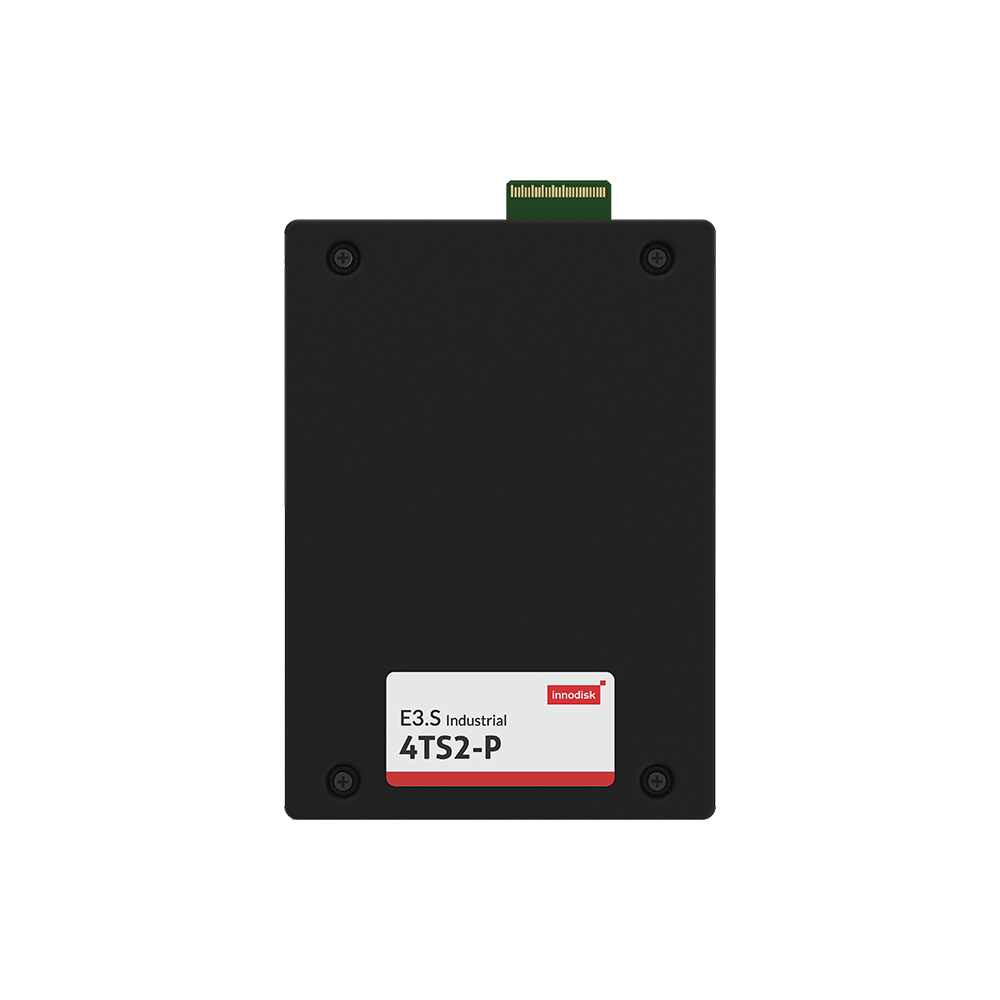

E3.S 4TS2-P

EDSFF

Advanced Storage For Data Center

Features

Up to 5,050 / 4,750 MB/s read and write performance
Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
PLP (iCell) technology for power loss protection
Compliant with SSD Endurance Workloads JESD219
Equipped with hot-swap and advanced features, suitable for data center boot drives

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

The Innodisk E3.S 4TS2-P features a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. This series offers high DWPD, wide temperature support, and up to 12.8TB of capacity, making it ideal for edge server applications. Enhanced thermal management and hot-swap functionality, along with Innodisk’s SSD maintenance features, position it as the new mainstream choice for data center and edge server applications.

SPECIFICATIONS

Model Name	E3.S 4TS2-P
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	E3.S 1T
Capacity	400GB ~ 12.8TB
Sequential R / W (MB/sec, max.)	5,050 / 4,750
P/E Cycle	3,000
TBW (Max.)	--
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	12.0W
Max. Channels	8
External DRAM Buffer	?
Features	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Series	Data Center SSD
Dimension (W x L x H/mm)	76.0 x 112.75 x 7.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
400GB	DSE3S-400DP2KCAEFP	DSE3S-400DP2KWAEFP
800GB	DSE3S-800DP2KCAEFP	DSE3S-800DP2KWAEFP
1.6TB	DSE3S-1T6DP2KCAEFP	DSE3S-1T6DP2KWAEFP
3.2TB	DSE3S-3T2DP2KCAEFP	DSE3S-3T2DP2KWAEFP
6.4TB	DSE3S-6T4DP2KCBEFP	DSE3S-6T4DP2KWBEFP
12.8TB	DSE3S-12TDP2KCBEFP	DSE3S-12TDP2KWBEFP

Operation temperature based on temperature obtained from S.M.A.R.T.
E3.S 4TS2-P specifications are subject to change.

For more information, please contact our support.
