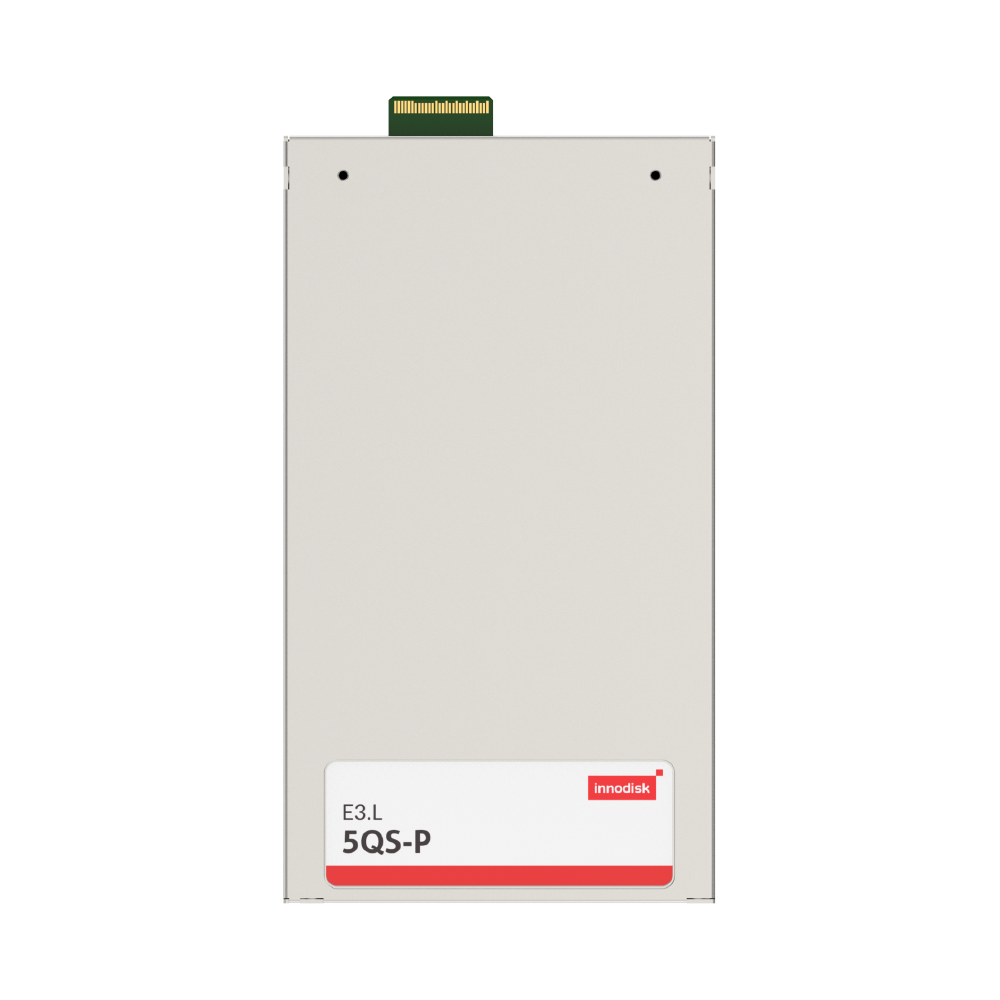

E3.L 5QS-P

EDSFF

PCIe Gen5 Solution

Features

PCIe Gen 5 x4 interface and NVMe 2.0 protocol
High storage density up to 128TB in a single E3.L drive
5-year warranty for long-term reliability
PLP (iCell) technology for power loss protection

BORN FOR SUPERIOR PERFORMANCE

The Innodisk PCIe Gen5 SSD redefines high-performance storage for next-generation data-intensive applications. Featuring a PCIe Gen 5 x4 interface and NVMe 2.0 protocol with up to 128TB storage support, this SSD delivers exceptional performance, making it ideal for demanding environments. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

Engineered for enterprise reliability, the E3.L 5QS-P offers advanced security features and broad compatibility, ensuring robust data durability and seamless system integration.

SPECIFICATIONS

Model Name	E3.L 5QS-P
Flash Type	QLC
Interface	PCIe Gen 5 x4
Form Factor	E3.L
Capacity	128TB
Sequential R / W (MB/sec, max.)	--
TBW (Max.)	--
Storage Temperature	0°C ~ 70°C
Max. Power Consumption	< 40W
Max. Channels	16
External DRAM Buffer	?
Features	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Series	Data Center SSD
Dimension (W x L x H/mm)	76.0 x 142.2 x 7.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	2 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)
128TB	DSE3L-A2TIX&#CAH@P

Operating temperature based on temperature obtained from S.M.A.R.T.
& : 1 = Standard / 2 = TCG Opal
# : Flash mode (Internal use)
@ : A = Kioxia / R = Micron
E3.L 5QS-P specifications are subject to change.

For more information, please contact our support.
