E1.S 4TG2-P

EDSFF

Advanced Storage For Data Center

Features

Up to 6,900 / 4,700MB/s read and write performance
Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
High storage density up to 8TB on a single E1.S drive
PLP (iCell) technology for power loss protection

BORN FOR SUPERIOR PERFORMANCE

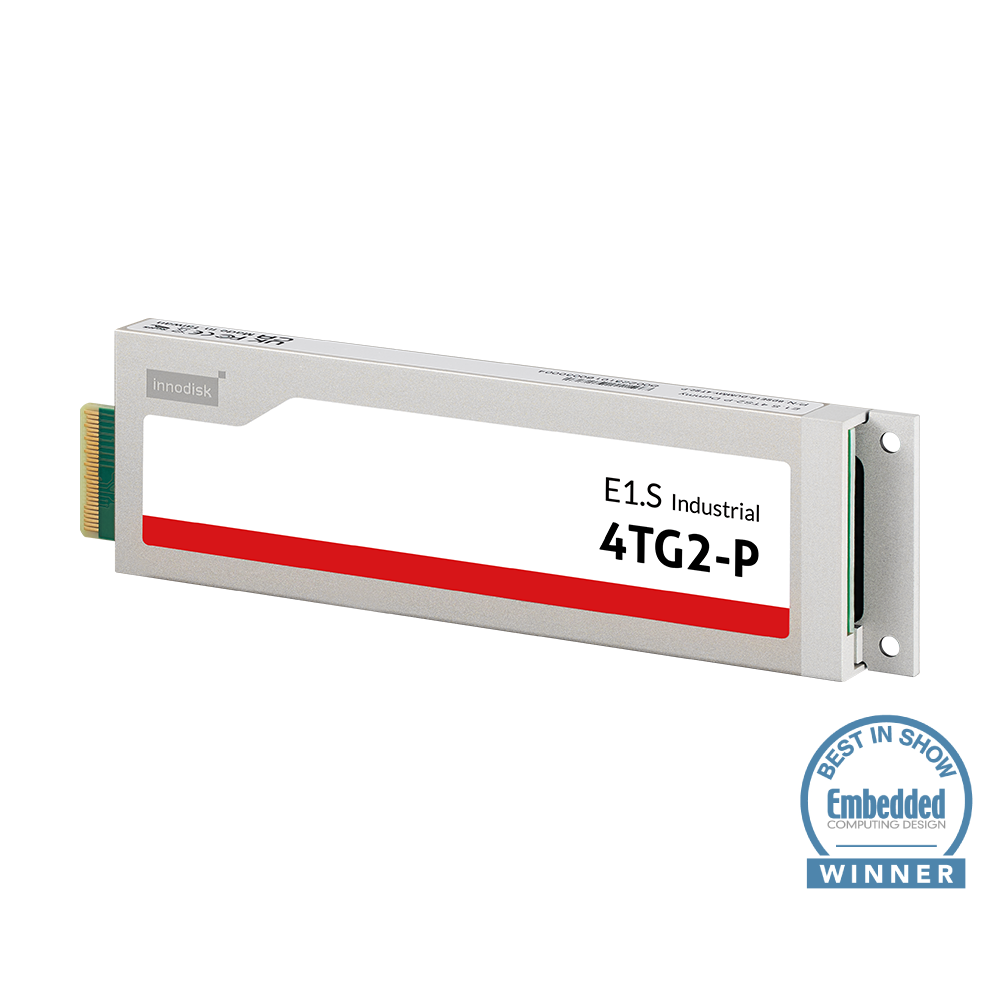

The Innodisk E1.S 4TG2-P is an NVMe SSD in the standard E1.S form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Its Die RAID protection enhances data integrity by reducing the occurrence of bad blocks. With ultra-fast speeds, high IOPS, and up to 8TB capacity, the E1.S 4TG2-P is ideal for servers and data-intensive applications.

SPECIFICATIONS

Model Name	E1.S 4TG2-P
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	E1.S
Capacity	512GB ~ 8TB
Sequential R / W (MB/sec, max.)	6,900 / 4,700
P/E Cycle	3,000
TBW (Max.)	19,129
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	12W
Max. Channels	8
External DRAM Buffer	?
Features	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Series	Data Center SSD
Dimension (W x L x H/mm)	5.9mm : 31.5 x 111.5 x 5.9 9.5mm : 33.75 x 118.75 x 9.5 15mm : 33.75 x 118.75 x 15.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
512GB	DGE1S-C12DP1KCAEFP%	DGE1S-C12DP1KWAEFP%
1TB	DGE1S-01TDP2KCAEFP%	DGE1S-01TDP2KWAEFP%
2TB	DGE1S-02TDP2KCAEFP%	DGE1S-02TDP2KWAEFP%
4TB	DGE1S-04TDP2KCAEFP%	DGE1S-04TDP2KWAEFP%
8TB	DGE1S-08TDP2KCBEFP%	DGE1S-08TDP2KWBEFP%

Operation temperature based on temperature obtained from S.M.A.R.T.
% : Non-existent = 5.9mm / H = 9.5mm enclosure / H1 = 15mm enclosure
E1.S 4TG2-P specifications are subject to change.
