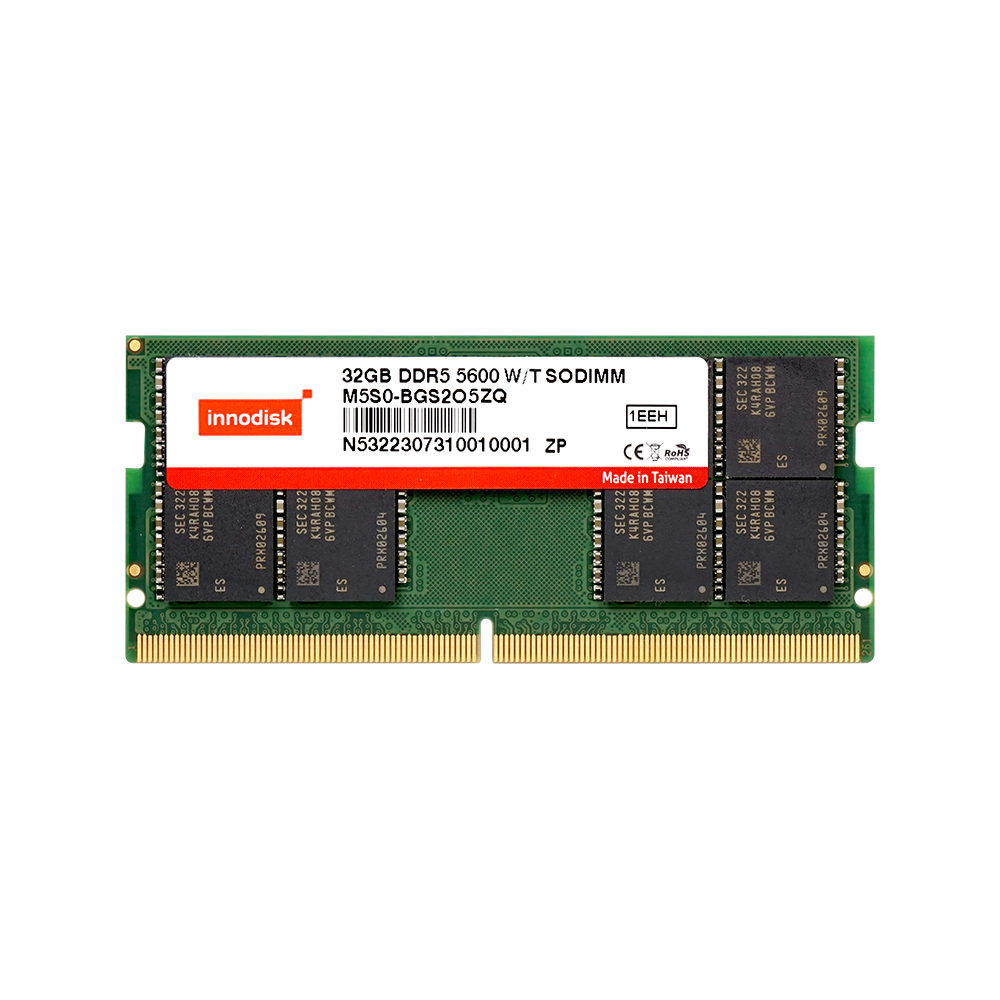

DDR5 Wide Temp. SODIMM

DDR5

Non-ECC Unbuffered Memory

Features

Speeds up to 5600MT/s with capacities up to 48GB
Operating Environment: -40°C ~ 95°C (Tc)
DDR5 original-grade IC equipped with on-die ECC functionality
DDR5 on-module PMIC and dual sub-channel structure
30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 48GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.

SPECIFICATIONS

Model Name	DDR5 Wide Temperature SODIMM
DDR Generation	DDR5 Memory
DIMM Type	SODIMM
Speed	4800 MT/s, 5600 MT/s
Density	8GB, 16GB, 24GB, 32GB, 48GB
Function	Non-ECC Unbuffered Memory
Pin Number	262pin
Bus Width	x64
Voltage	1.1V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M5S0-8GSYZ5ZQ	1G x 16	1R x 16	-40°C ~ 95°C (Tc)	DDR5 5600 8GB Wide Temperature SODIMM
M5S0-8GMYZ5ZQ	1G x 16	1R x 16	-40°C ~ 95°C (Tc)	DDR5 5600 8GB Wide Temperature SODIMM
M5S0-AGS2N5ZQ	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 16GB Wide Temperature SODIMM
M5S0-AGM2N5ZQ	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 16GB Wide Temperature SODIMM
M5S0-FGMZN5ZQ	3G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 24GB Wide Temperature SODIMM
M5S0-BGS2O5ZQ	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 32GB Wide Temperature SODIMM
M5S0-BGM2O5ZQ	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 32GB Wide Temperature SODIMM
M5S0-GGMZO5ZQ	3G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 48GB Wide Temperature SODIMM

For more information, please contact our support.
