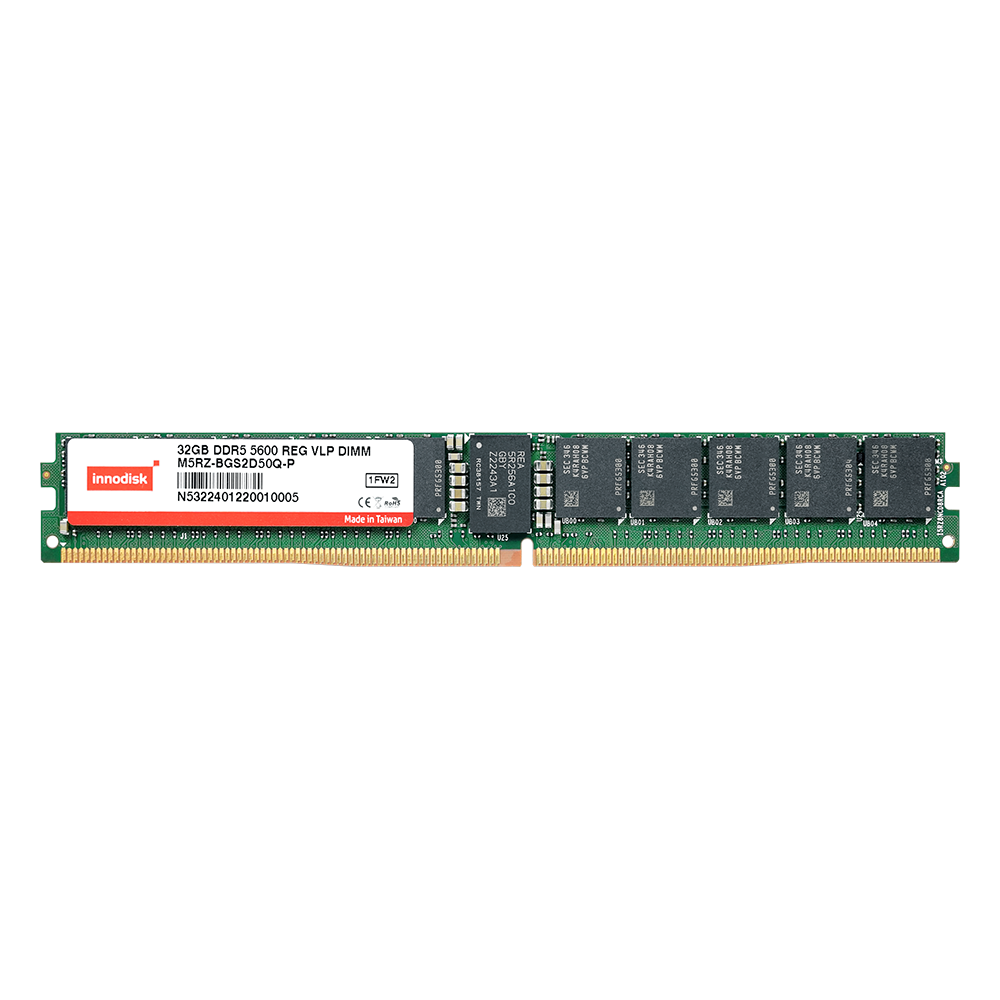

DDR5 Wide Temp. RDIMM VLP

DDR5

Optimal Memory for 1U Server

Features

Operating Environment: -40°C ~ 95°C (Tc)
Saves 40% of system space with VLP (Very Low Profile) design
Speeds up to 5600MT/s with capacities up to 32GB
HDI and Ultra Low Loss PCB minimize signal interference
Identifies the optimal PMIC solution through Power Integrity (PI) testing
Selects the ideal SPD hub through Signal Integrity (SI) testing

BORN FOR SUPERIOR PERFORMANCE

The DDR5 Wide Temperature RDIMM VLP offers a very low-profile design and the industry‘s fastest memory speeds with 4800MT/s or 5600MT/s. It is fully compatible with the Intel® Purely platform and 1U devices. The modules also boast wide temperature support, operating reliably from -40°C ~ 95°C, and are available in capacities up to 32GB.

SPECIFICATIONS

Model Name	DDR5 Wide Temperature RDIMM VLP
DDR Generation	DDR5 Memory
DIMM Type	RDIMM VLP
Speed	4800 MT/s, 5600 MT/s
Density	32GB
Function	Registered Memory with ECC
Pin Number	288pin
Bus Width	x80
Voltage	1.1V
PCB Height	0.738 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M5R0-BGS2D5VP	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR5 4800 32GB Wide Temperature RDIMM VLP
M5R0-BGS2D5ZQ	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 32GB Wide Temperature RDIMM VLP
