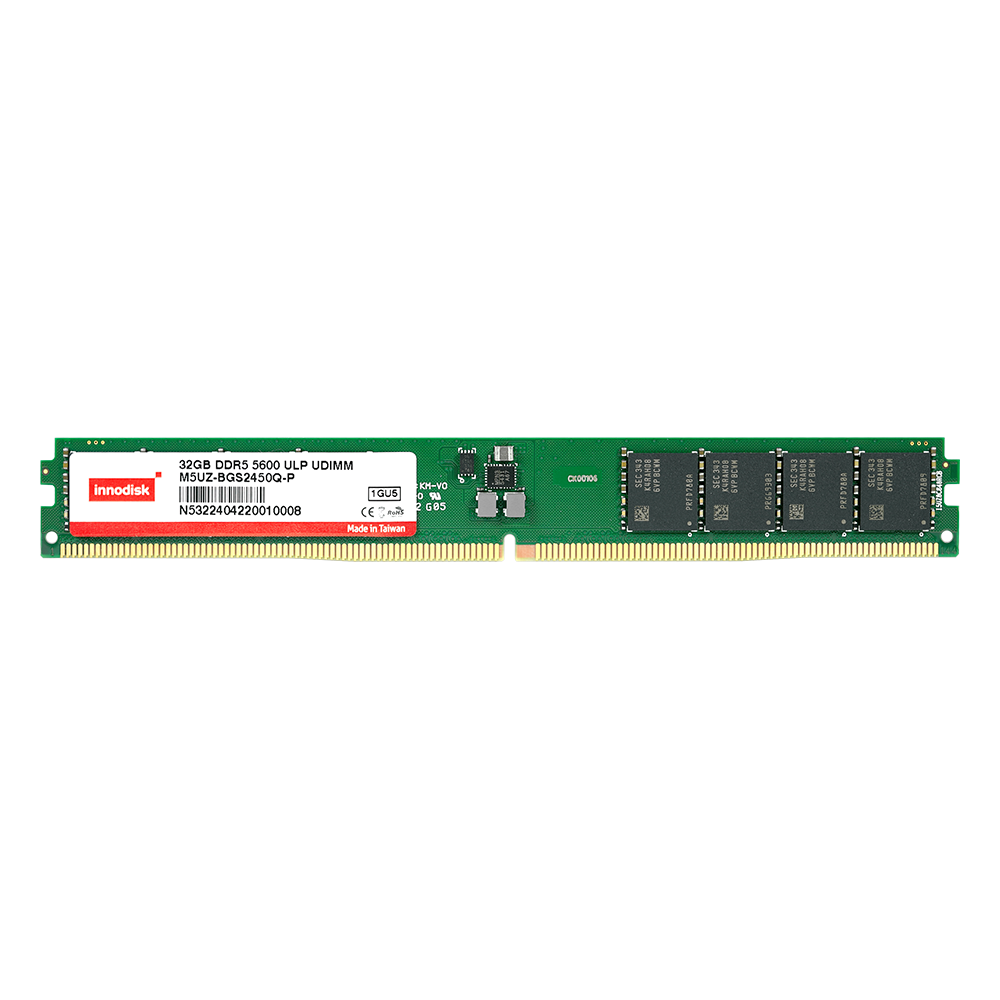

DDR5 Wide Temp. ECC UDIMM VLP

DDR5

ECC Unbuffered Memory

Features

Saves 40% of system space with VLP (Very Low Profile) design
Operating Environment: -40°C ~ 95°C (Tc)
ECC DIMM incorporates error correction and detection capabilities
Speeds up to 5600MT/s with capacities up to 32GB
DDR5 original-grade IC equipped with on-die ECC functionality
DDR5 on-module PMIC and dual sub-channel structure
30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 32GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.

SPECIFICATIONS

Model Name	DDR5 Wide Temperature ECC UDIMM VLP
DDR Generation	DDR5 Memory
DIMM Type	ECC UDIMM VLP
Speed	4800 MT/s, 5600 MT/s
Density	16GB, 32GB
Function	ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x72
Voltage	1.1V
PCB Height	0.738 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M5C0-AGS2S5ZQ	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 16GB Wide Temperature ECC UDIMM VLP
M5C0-AGM2S5ZQ	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 16GB Wide Temperature ECC UDIMM VLP
M5C0-BGS2T5ZQ	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 32GB Wide Temperature ECC UDIMM VLP
M5C0-BGM2T5ZQ	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR5 5600 32GB Wide Temperature ECC UDIMM VLP

For more information, please contact our support.
