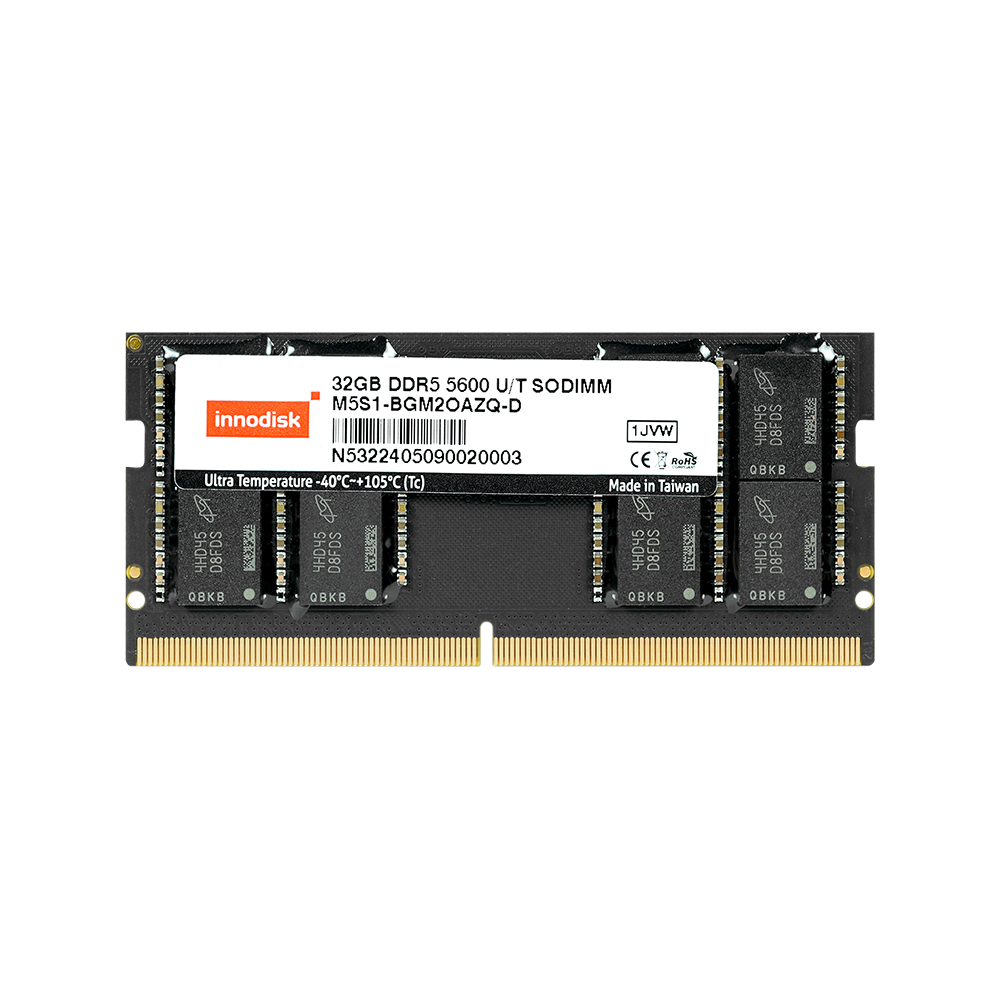

DDR5 Ultra Temp. SODIMM

DDR5

Non-ECC Unbuffered Memory

Features

Operating Environment: -40°C ~ 105°C (Tc)
Speeds up to 5600MT/s with capacities up to 32GB
45?” Gold Finger with chamfer PCB for enhanced data stability
Anti-sulfuration and Side Fill technology for harsh environments
Meets AEC-Q100 automotive qualification with Micron IC

BORN FOR SUPERIOR PERFORMANCE

The DDR5 Ultra Temperature SODIMM offers a compact design with excellent performance. To overcome the thermal challenges in surveillance, in-vehicle, automation, and embedded applications, the modules can operate in temperatures ranging from -40°C ~ 105°C (Tc), enduring heat generated by engines, making it the only DDR5 DRAM module capable of operating above 100°C.

SPECIFICATIONS

Model Name	DDR5 Ultra Temperature SODIMM
DDR Generation	DDR5 Memory
DIMM Type	SODIMM
Speed	4800 MT/s, 5600 MT/s
Density	8GB, 16GB, 32GB
Function	Non-ECC Unbuffered Memory
Pin Number	262pin
Bus Width	x64
Voltage	1.1V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 105°C (Tc)
45?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M5S0-8GMYZAVP	1G x 16	1R x 16	-40°C ~ 105°C (Tc)	DDR5 4800 8GB Ultra Temperature SODIMM
M5S0-AGM2NAVP	2G x 8	1R x 8	-40°C ~ 105°C (Tc)	DDR5 4800 16GB Ultra Temperature SODIMM
M5S0-BGM2OAVP	2G x 8	2R x 8	-40°C ~ 105°C (Tc)	DDR5 4800 32GB Ultra Temperature SODIMM
M5S0-8GMYZAZQ	1G x 16	1R x 16	-40°C ~ 105°C (Tc)	DDR5 5600 8GB Ultra Temperature SODIMM
M5S0-AGM2NAZQ	2G x 8	1R x 8	-40°C ~ 105°C (Tc)	DDR5 5600 16GB Ultra Temperature SODIMM
M5S0-BGM2OAZQ	2G x 8	2R x 8	-40°C ~ 105°C (Tc)	DDR5 5600 32GB Ultra Temperature SODIMM

For more information, please contact our support.
