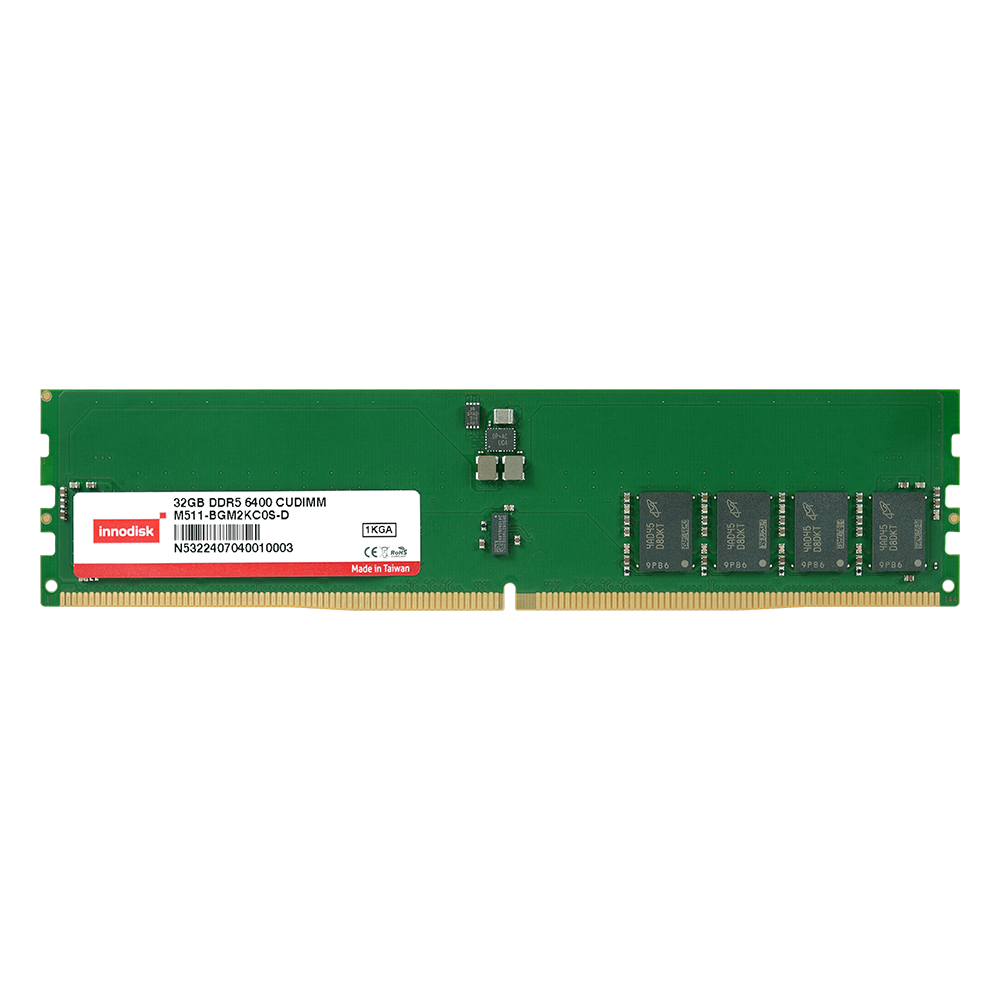

DDR5 CUDIMM

DDR5

Empower Edge AI & Generative AI Applicati

Features

Delivers a superior data transfer rate of 6400MT/s with 64GB maximum capacity
Adds the Client Clock Driver (CKD) and Transient Voltage Suppressors (TVS) diode to ensure the integrity and reliability of modules
Fully tested and optimized for data-intensive applications in AI and edge computing
Operating Environment: 0°C ~ 95°C (Tc)
30? gold finger ensures durability, with anti-sulfuration shielding against harsh conditions

BORN FOR SUPERIOR PERFORMANCE

The DDR5 6400 series delivers superior performance with a blazing-fast 6400MT/s data transfer rate and expanded 64GB maximum capacity. This next-generation memory solution comes in multiple form factors including CUDIMM, CSODIMM, ECC CUDIMM, ECC CSODIMM and RDIMM, featuring advanced CKD technology for enhanced signal integrity and TVS protection against voltage fluctuations. With a 14% boost in sp

SPECIFICATIONS

Model Name	DDR5 CUDIMM
DDR Generation	DDR5 Memory
DIMM Type	CUDIMM
Speed	6400 MT/s
Density	8GB, 16GB, 24GB, 32GB, 48GB, 64GB
Function	Non-ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x64
Voltage	1.1V
PCB Height	1.23 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M510-8GMY1C1S	1G x 16	1R x 16	0°C ~ 95°C (Tc)	DDR5 6400 8GB CUDIMM
M510-AGM2JC1S	2G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR5 6400 16GB CUDIMM
M510-FGMZJC1S	3G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR5 6400 24GB CUDIMM
M510-BGM2KC1S	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR5 6400 32GB CUDIMM
M510-BGM9JC1S	4G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR5 6400 32GB CUDIMM
M510-GGMZKC1S	3G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR5 6400 48GB CUDIMM
M510-CGM9KC1S	4G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR5 6400 64GB CUDIMM
