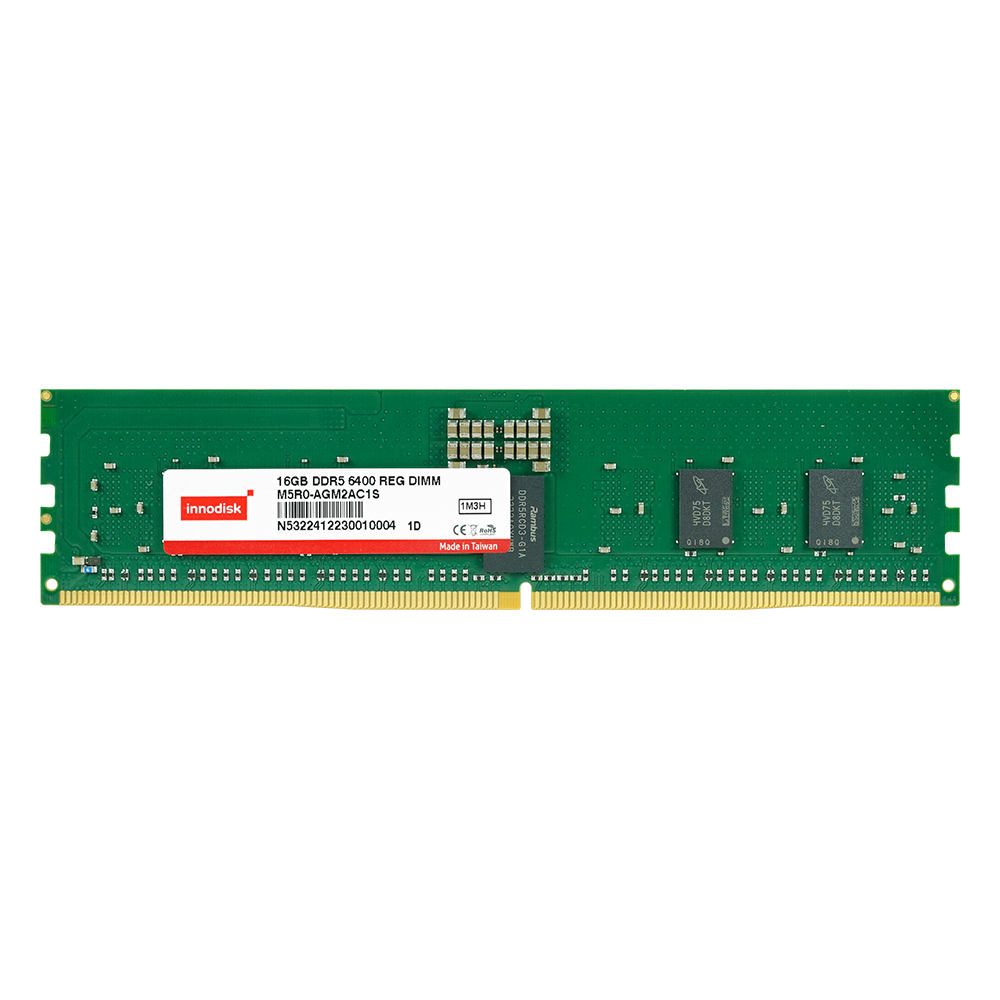

DDR5 6400 RDIMM

DDR5

Empower Edge AI & Generative AI Applications

Features

Registered for Enhancing Clock, Command, and Control Signals
Delivers a superior data transfer rate of 6400MT/s with 64GB maximum capacity
Adds the Transient Voltage Suppressors (TVS) diode and eFuse to ensure the integrity and reliability of modules
Fully tested and optimized for data-intensive applications in AI and edge computing
Operating Environment: 0°C ~ 95°C (Tc)
30? gold finger ensures durability, with anti-sulfuration shielding against harsh conditions

BORN FOR SUPERIOR PERFORMANCE

The DDR5 6400 series delivers superior performance with a blazing-fast 6400MT/s data transfer rate and expanded 64GB maximum capacity. This next-generation memory solution comes in multiple form factors including CUDIMM, CSODIMM, ECC CUDIMM, ECC CSODIMM and RDIMM, featuring advanced CKD technology for enhanced signal integrity and TVS protection against voltage fluctuations. With a 14% boost in speed over previous generations, it’s specifically optimized for data-intensive tasks in LLMs, generative AI, and edge computing.

SPECIFICATIONS

Model Name	DDR5 6400 RDIMM
DDR Generation	DDR5 Memory
DIMM Type	RDIMM
Speed	6400 MT/s
Density	16GB, 24GB, 32GB, 48GB, 64GB
Function	Registered Memory with ECC
Pin Number	288pin
Bus Width	x80
Voltage	1.1V
PCB Height	1.23 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y
