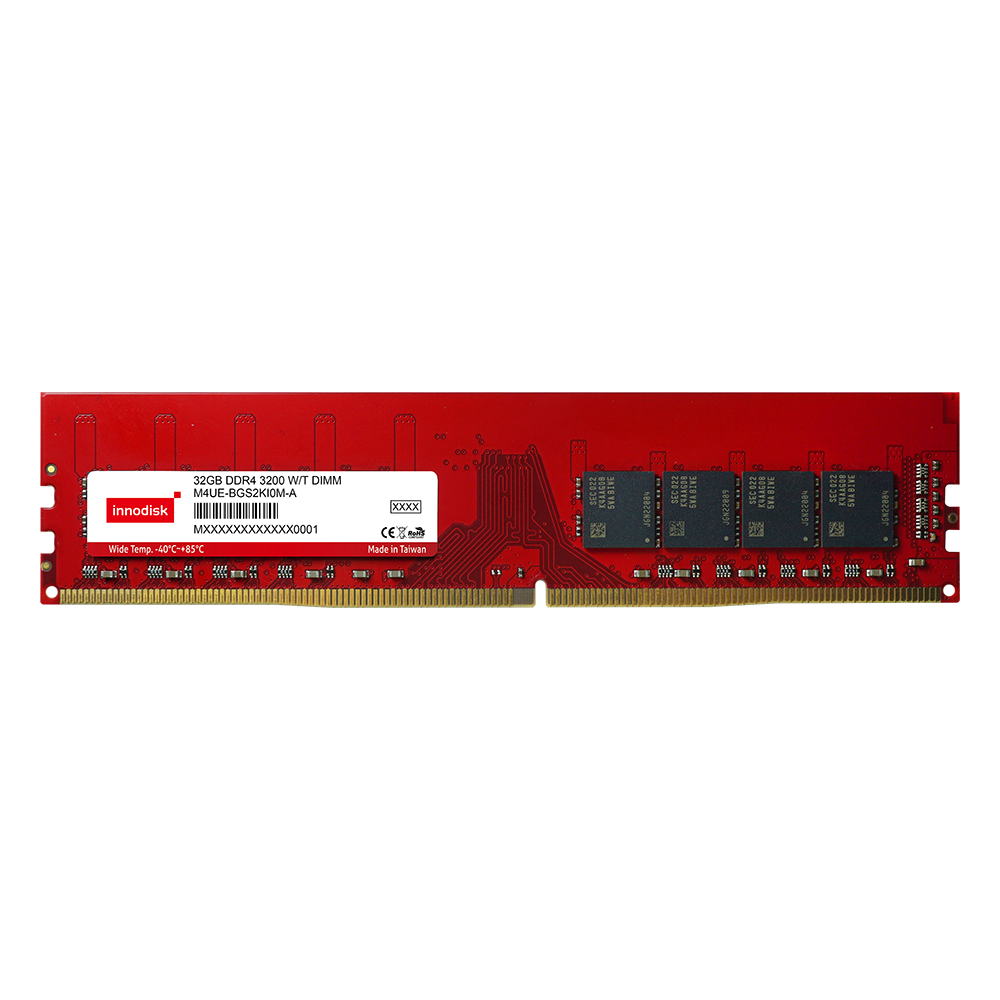

DDR4 Wide Temp. UDIMM

DDR4

Non-ECC Unbuffered Memory

Features

Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: -40°C ~ 95°C (Tc)
30?” Gold Finger
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 Wide Temperature UDIMM offers the industry's fastest memory speed with 3200MT/s - the perfect fit for any in-vehicle, surveillance, automation and embedded application. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40ºC to 95°C (Tc), and are available in 4GB, 8GB, 16GB, and 32GB capacities. 2133MT/s, 2400MT/s, 2666MT/s, and 2933 MT/s modules are also available.

SPECIFICATIONS

Model Name	DDR4 Wide Temperature UDIMM
DDR Generation	DDR4 Memory
DIMM Type	UDIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	Non-ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x64
Voltage	1.2V
PCB Height	1.23 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4U0-2GSV15EM	256M x 16	1R x 16	-40°C ~ 95°C (Tc)	DDR4 3200 2GB Wide Temperature UDIMM
M4U0-4GSV25EM	256M x 16	2R x 16	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature UDIMM
M4U0-4GSSJ5EM	512M x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature UDIMM
M4U0-4GSX15EM	512M x 16	1R x 16	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature UDIMM
M4U0-4GMX15EM	512M x 16	1R x 16	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature UDIMM
M4U0-8GSX25EM	512M x 16	2R x 16	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature UDIMM
M4U0-8GSSK5EM	512M x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature UDIMM
M4U0-8GS1J5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature UDIMM
M4U0-8GM1J5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature UDIMM
M4U0-8GSY15EM	1G x 16	1R x 16	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature UDIMM
M4U0-AGSY25EM	1G x 16	2R x 16	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature UDIMM
M4U0-AGS1K5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature UDIMM
M4U0-AGM1K5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature UDIMM
M4U0-AGM2J5EM	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature UDIMM
M4U0-BGS2K5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature UDIMM
M4U0-BGM2K5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature UDIMM

For more information, please contact our support.
