DDR4 Wide Temp. RDIMM VLP

DDR4

Registered Memory with ECC

Features

Register that enhances clock, command, and control signals
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: -40°C ~ 95°C (Tc)
RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

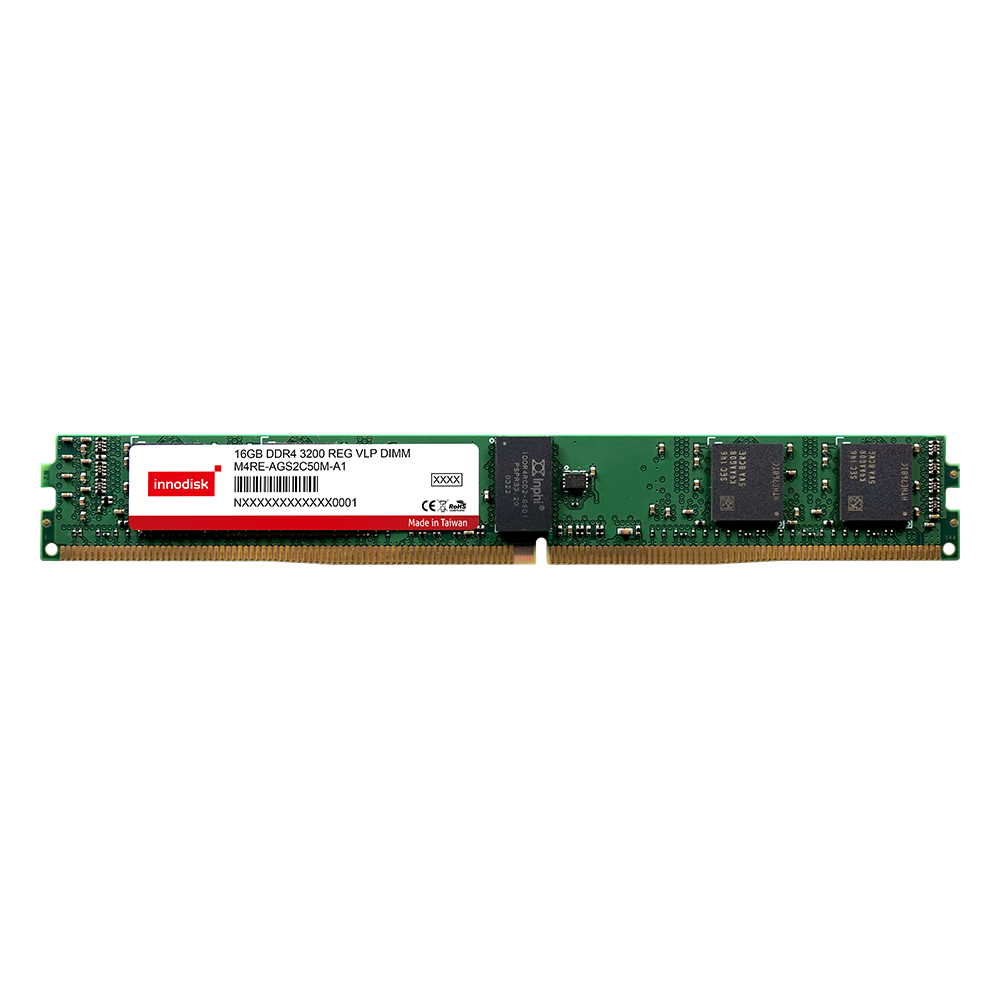

DDR4 Wide Temperature RDIMM VLP is a very low-profile design that offers the industry's fastest memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform and 1U devices. The modules come equipped with 30?” Gold Finger and include single bit error correction and a register to enhance clock, command, and control signals. The modules comply with all relevant JEDEC standards and can operate in temperatures from -40ºC to 95°C (Tc).

VLP DIMM modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 Wide Temperature RDIMM VLP
DDR Generation	DDR4 Memory
DIMM Type	RDIMM VLP
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	Registered Memory with ECC
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	0.738 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y
Notice	4GB is only for 2133MT/s and 2400MT/s

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4R0-4GSSC5EM	512M x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature RDIMM VLP
M4R0-8GSSD5EM	512M x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature RDIMM VLP
M4R0-8GS1C5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature RDIMM VLP
M4R0-AGS1D5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature RDIMM VLP
M4R0-AGS2C5EM	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature RDIMM VLP
M4R0-BGS2D5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature RDIMM VLP
