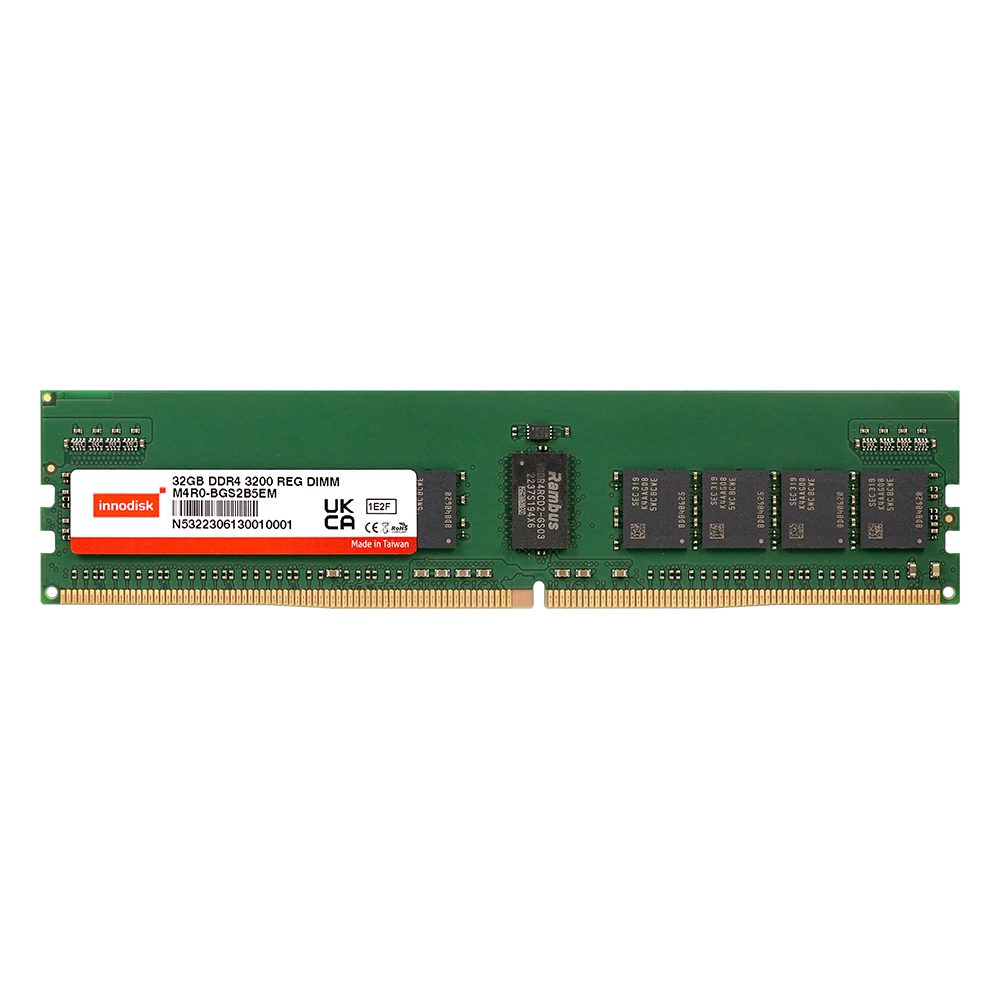

DDR4 Wide Temp. RDIMM

DDR4

Registered Memory with ECC

Features

Register that enhances clock, command, and control signals
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: -40°C ~ 95°C (Tc)
RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 Wide Temperature RDIMM offers the industry's fastest memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform. The modules come equipped with 30?” Gold Finger and include single bit error correction and a register to enhance clock, command, and control signals. The modules comply with all relevant JEDEC standards and can operate in temperatures from -40ºC to 95°C (Tc). All are available from 4GB to 32GB capacities, while the 2133MT/s, 2400MT/s and 2666MT/s modules also include 32GB.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 Wide Temperature RDIMM
DDR Generation	DDR4 Memory
DIMM Type	RDIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	Registered Memory with ECC
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	1.23 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4R0-4GSSA5EM	512M x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature RDIMM
M4R0-8GSSB5EM	512M x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature RDIMM
M4R0-8GS1A5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature RDIMM
M4R0-8GM1A5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature RDIMM
M4R0-AGS1B5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature RDIMM
M4R0-AGM1B5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature RDIMM
M4R0-AGS2A5EM	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature RDIMM
M4R0-BGS2B5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature RDIMM

For more information, please contact our support.
