 | DDR4ECC Unbuffered Memory Features
|

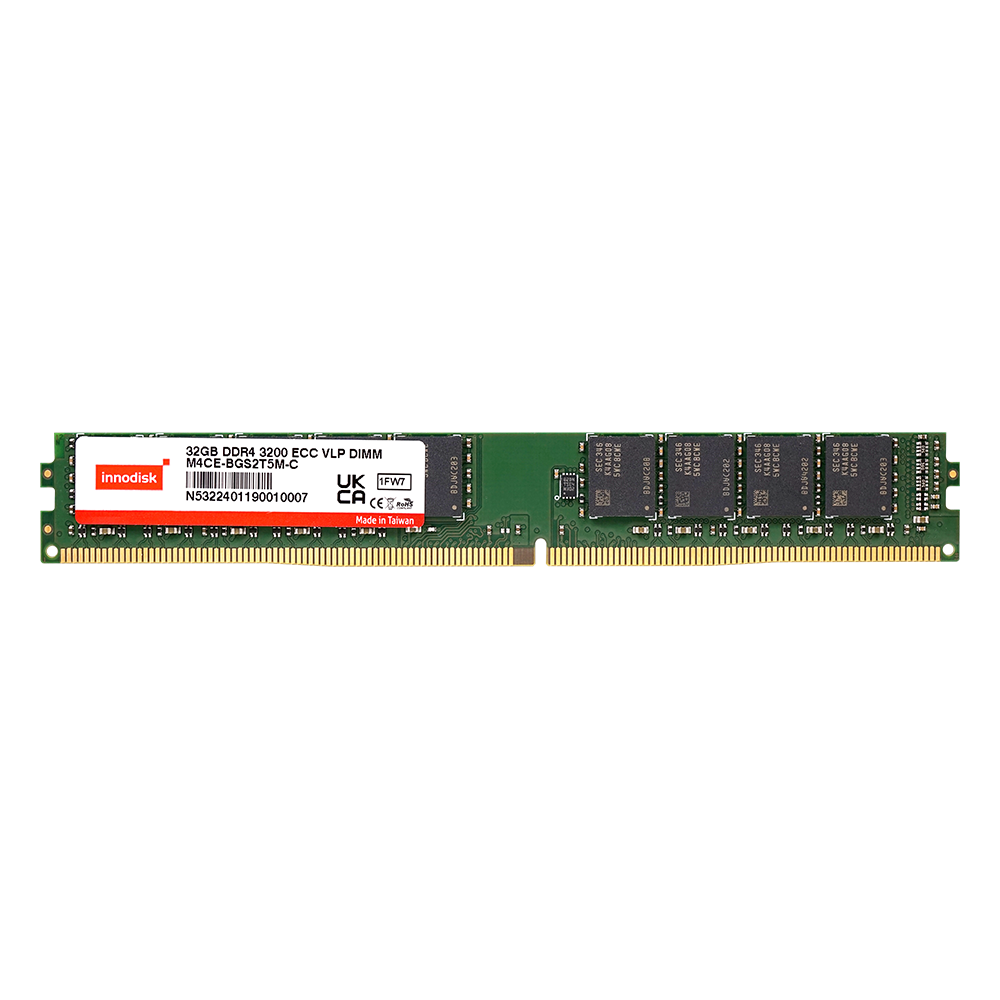

DDR4 Wide Temperature ECC UDIMM VLP is an industrial memory module for server and networking markets. It provides lasting performance, can operate from -40°C to 95°C (Tc) with 30?” Gold Fingers, and includes single-bit error correction. The module is available in capacities of 8GB, 16GB, and 32GB, and data transfer rates of 2400MT/s, 2666MT/s, 2933MT/s, and 3200MT/s.
VLP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.
ECC function are designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend original data.
Model Name | DDR4 Wide Temperature ECC UDIMM VLP |
DDR Generation | DDR4 Memory |
DIMM Type | ECC UDIMM VLP |
Speed | 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s |
Density | 8GB, 16GB, 32GB |
Function | ECC Unbuffered Memory |
Pin Number | 288pin |
Bus Width | x72 |
Voltage | 1.2V |
PCB Height | 0.738 Inches |
Operating Temperature | -40°C ~ 95°C (Tc) |
30?” Gold Finger | Y |
Anti-Sulfuration | Y |
P/N | IC Config. | Rank | Temp. | Description |
M4C0-8GSST5EM | 512M x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR4 3200 8GB Wide Temp. ECC UDIMM VLP |
M4C0-8GS1S5EM | 1G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR4 3200 8GB Wide Temp. ECC UDIMM VLP |
M4C0-AGS1T5EM | 1G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR4 3200 16GB Wide Temp. ECC UDIMM VLP |
M4C0-BGS2T5EM | 2G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR4 3200 32GB Wide Temp. ECC UDIMM VLP |
