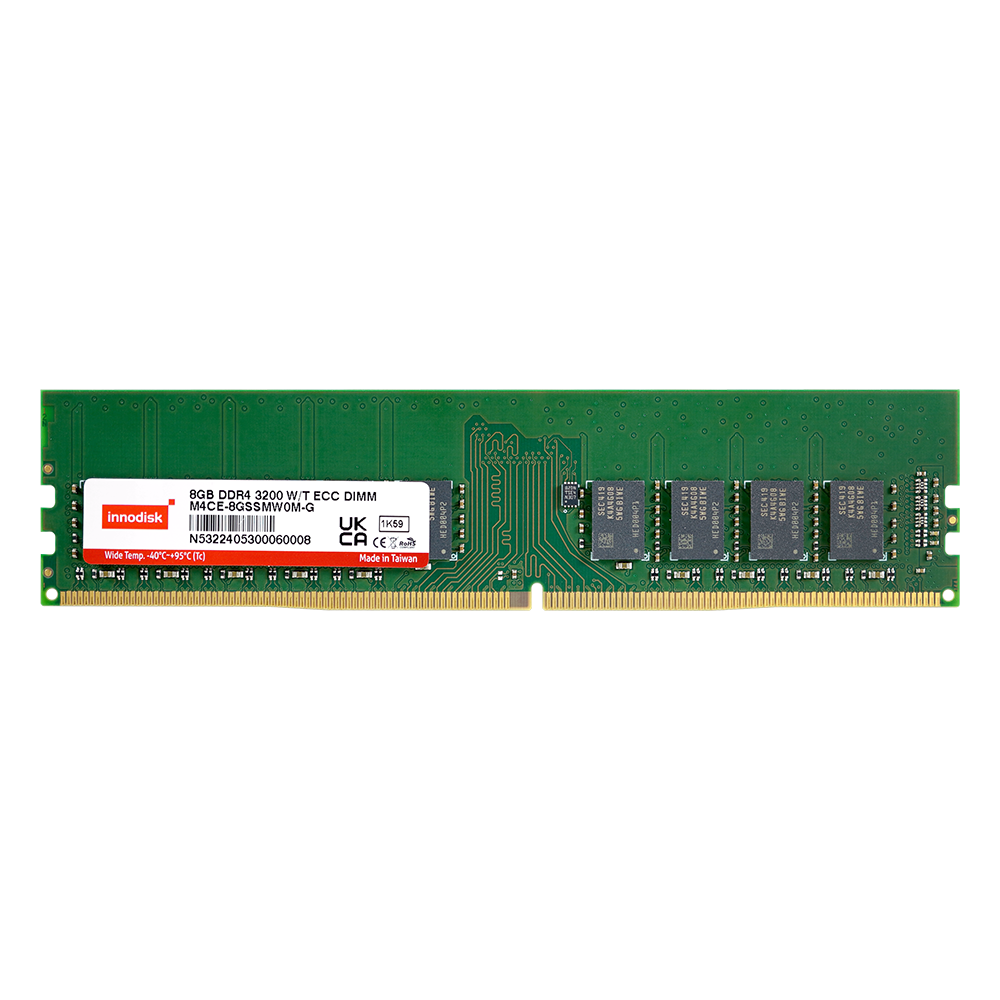

DDR4 Wide Temp. ECC UDIMM

DDR4

ECC Unbuffered Memory

Features

ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: -40°C ~ 95°C (Tc)
30?’’ Gold Finger
RoHS Compliance and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 Wide Temperature ECC UDIMM offers the industry's fastest memory speed with 3200MT/s - the perfect fit for any in-vehicle, surveillance, automation and embedded application. The modules come equipped with 30?” Gold Fingers and include single bit error correction. DDR4 Wide Temperature ECC UDIMM can operate in temperatures from -40°C to 95°C (Tc) and are available in 4GB, 8GB,16GB and 32GB capacities. 2133MT/s, 2400MT/s, 2666MT/s and 2933MT/s modules are also available.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 Wide Temperature ECC UDIMM
DDR Generation	DDR4 Memory
DIMM Type	ECC UDIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	1.23 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4C0-4GSSL5EM	512M x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature ECC UDIMM
M4C0-8GSSM5EM	512M x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature ECC UDIMM
M4C0-8GS1L5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature ECC UDIMM
M4C0-8GM1L5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature ECC UDIMM
M4C0-AGS1M5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC UDIMM
M4C0-AGM1M5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC UDIMM
M4C0-AGS2L5EM	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC UDIMM
M4C0-AGM2L5EM	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC UDIMM
M4C0-BGS2M5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature ECC UDIMM
M4C0-BGM2M5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature ECC UDIMM

For more information, please contact our support.
