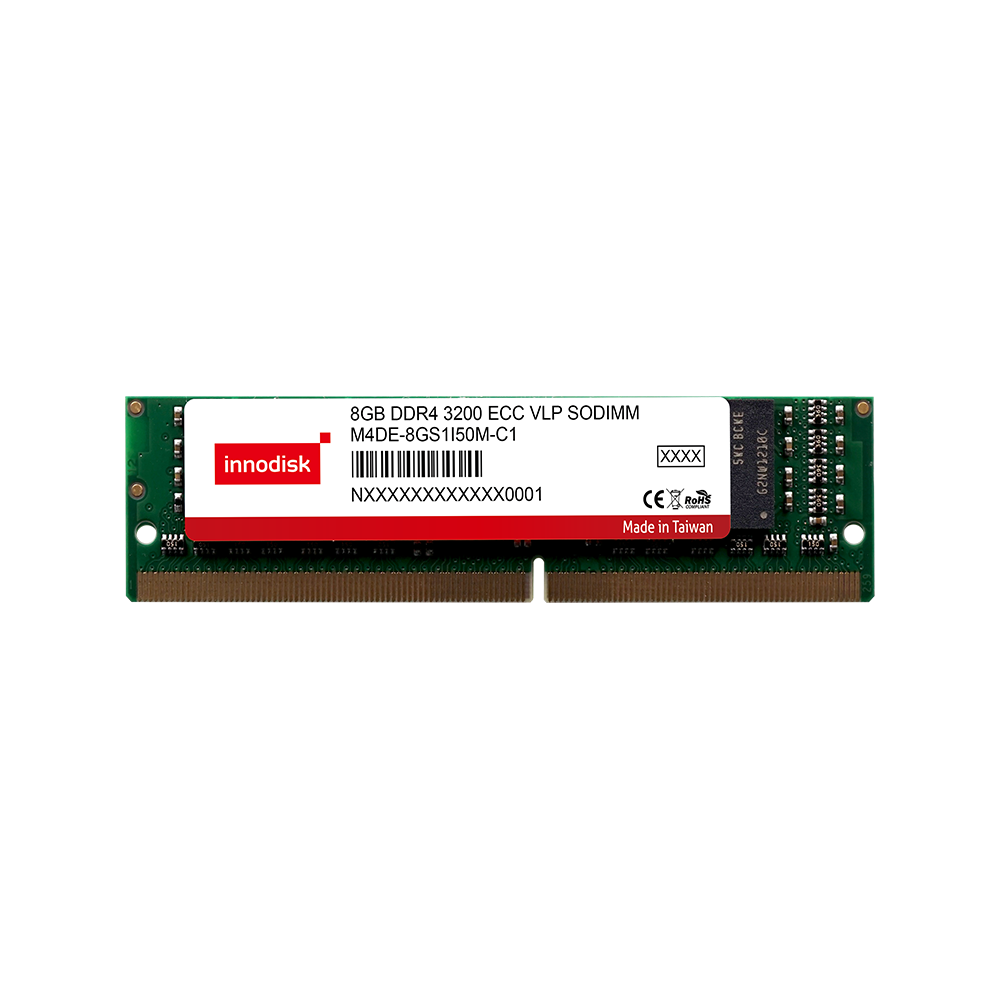

DDR4 Wide Temp. ECC SODIMM VLP

DDR4 ECC Unbuffered Memory Features Very low profile specialized for use in 1U system ECC DIMM incorporates error correction and detection capabilities Fully tested and optimized for stability and performance Uses original IC to meet strict industrial standards Anti-sulfuration protection against harsh environments JEDEC standard 1.2V (1.26V ~ 1.14V) Operating Environment: -40°C ~ 95°C (Tc) 30?” Gold Finger, RoHS Compliance and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 Wide Temperature ECC SODIMM VLP is a compact and a very low-profile module that offers the industry's fastest memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform and 1U devices. The modules come equipped with 30?” Gold Fingers, include single bit error correction and is designed for networking and server use. All are available in 8GB capacities. 2133MT/s, 2400MT/s 2666MT/s and 2933MT/s modules are also available.

VLP DIMM modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

ORDER INFORMATION
