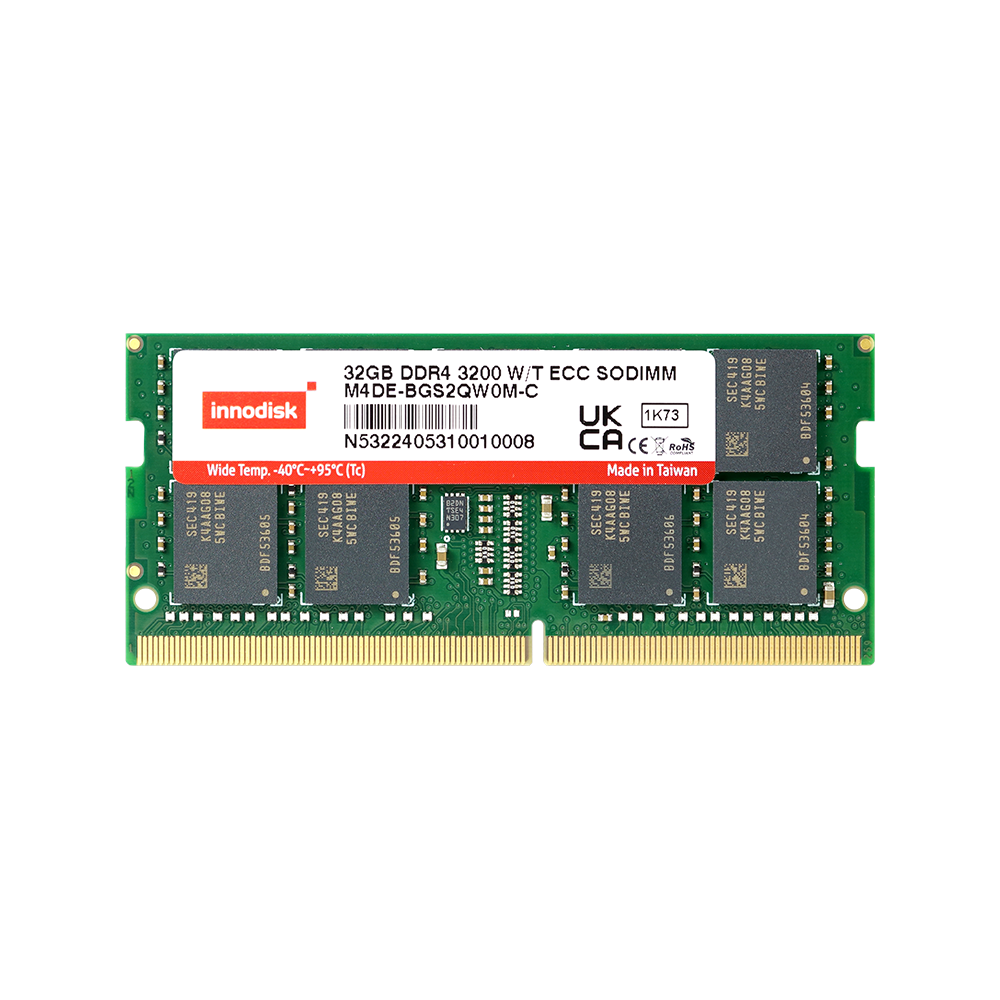

DDR4 Wide Temp. ECC SODIMM

DDR4

ECC Unbuffered Memory

Features

Small outline dual in-line memory module
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: -40°C ~ 95°C (Tc)
30?” Gold Finger, RoHS Compliance and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 Wide Temperature ECC SODIMM offers a compact design and the industry's fastest memory speed with 3200MT/s - the perfect fit for any in-vehicle, surveillance, automation and embedded application. The modules come equipped with 30?” Gold Fingers and include single bit error correction. DDR4 Wide Temperature ECC SODIMM can operate in temperatures from -40ºC to 95°C (Tc) and are available in 4GB, 8GB, 16GB, and 32GB capacities. 2133MT/s, 2400MT/s , and 2666MT/s modules are also available.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 Wide Temperature ECC SODIMM
DDR Generation	DDR4 Memory
DIMM Type	ECC SODIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	ECC Unbuffered Memory
Pin Number	260pin
Bus Width	x72
Voltage	1.2V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4D0-4GSSP5EM	512M x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 4GB Wide Temperature ECC SODIMM
M4D0-8GSSQ5EM	512M x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature ECC SODIMM
M4D0-8GS1P5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature ECC SODIMM
M4D0-8GM1P5EM	1G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 8GB Wide Temperature ECC SODIMM
M4D0-AGS1Q5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC SODIMM
M4D0-AGM1Q5EM	1G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC SODIMM
M4D0-AGS2P5EM	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC SODIMM
M4D0-AGM2P5EM	2G x 8	1R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 16GB Wide Temperature ECC SODIMM
M4D0-BGS2Q5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature ECC SODIMM
M4D0-BGM2Q5EM	2G x 8	2R x 8	-40°C ~ 95°C (Tc)	DDR4 3200 32GB Wide Temperature ECC SODIMM

For more information, please contact our support.
