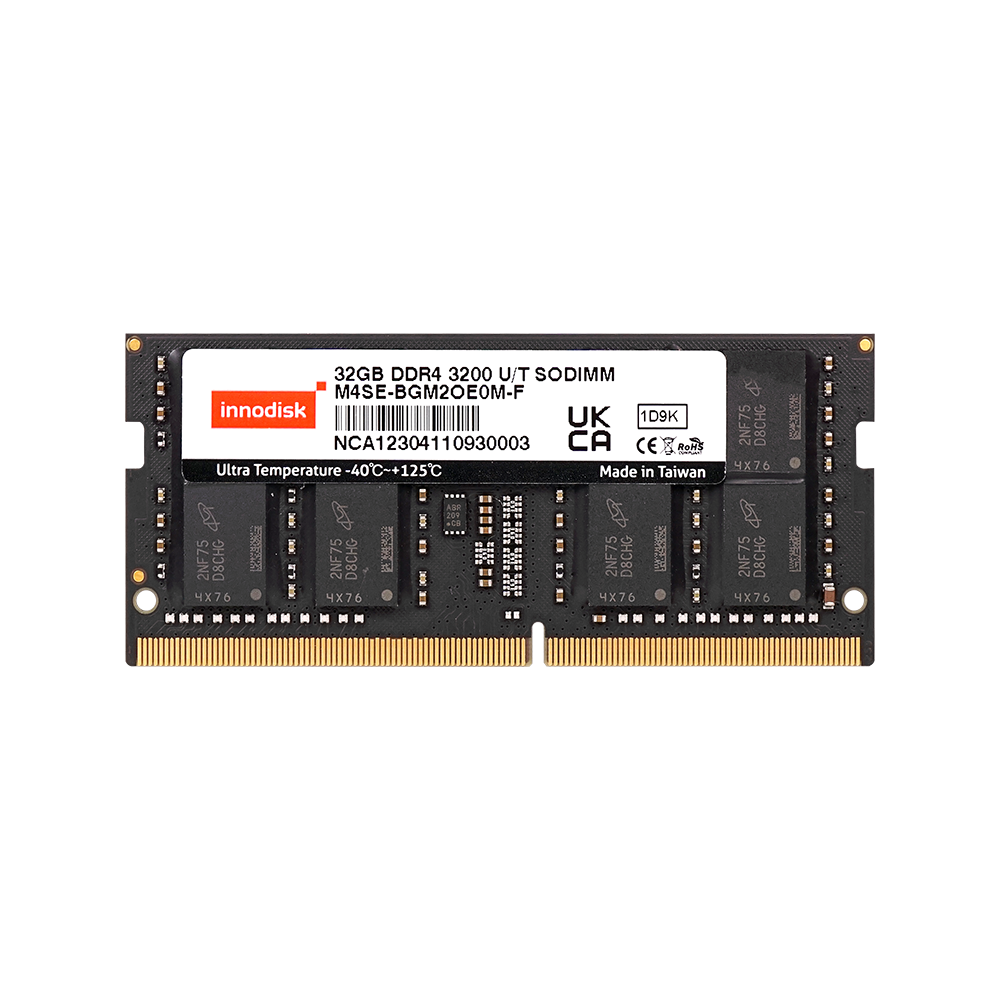

DDR4 Ultra Temp. SODIMM

DDR4

Non-ECC Unbuffered Memory

Features

Small outline dual in-line memory module
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: -40°C ~ 125°C (Tc)
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 Ultra Temperature SODIMM offers a compact design and the industry's fastest memory speed with 3200MT/s - the perfect fit for any in-vehicle, surveillance, automation and embedded application. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40ºC to 125ºC (Tc), and are available in 16GB and 32GB capacities. 2133MT/s, 2400MT/s 2666MT/s and 2933MT/s modules are also available.

SPECIFICATIONS

Model Name	DDR4 Ultra Temperature SODIMM
DDR Generation	DDR4 Memory
DIMM Type	SODIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	8GB, 16GB, 32GB
Function	Non-ECC Unbuffered Memory
Pin Number	260pin
Bus Width	x64
Voltage	1.2V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 125°C (Tc)
45?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4S0-8GM1NEEM	1G x 8	1R x 8	-40°C ~ 125°C (Tc)	DDR4 3200 8GB Ultra Temperature SODIMM
M4S0-AGM1OEEM	1G x 8	2R x 8	-40°C ~ 125°C (Tc)	DDR4 3200 16GB Ultra Temperature SODIMM
M4S0-BGM2OEEM	2G x 8	2R x 8	-40°C ~ 125°C (Tc)	DDR4 3200 32GB Ultra Temperature SODIMM

For more information, please contact our support.
