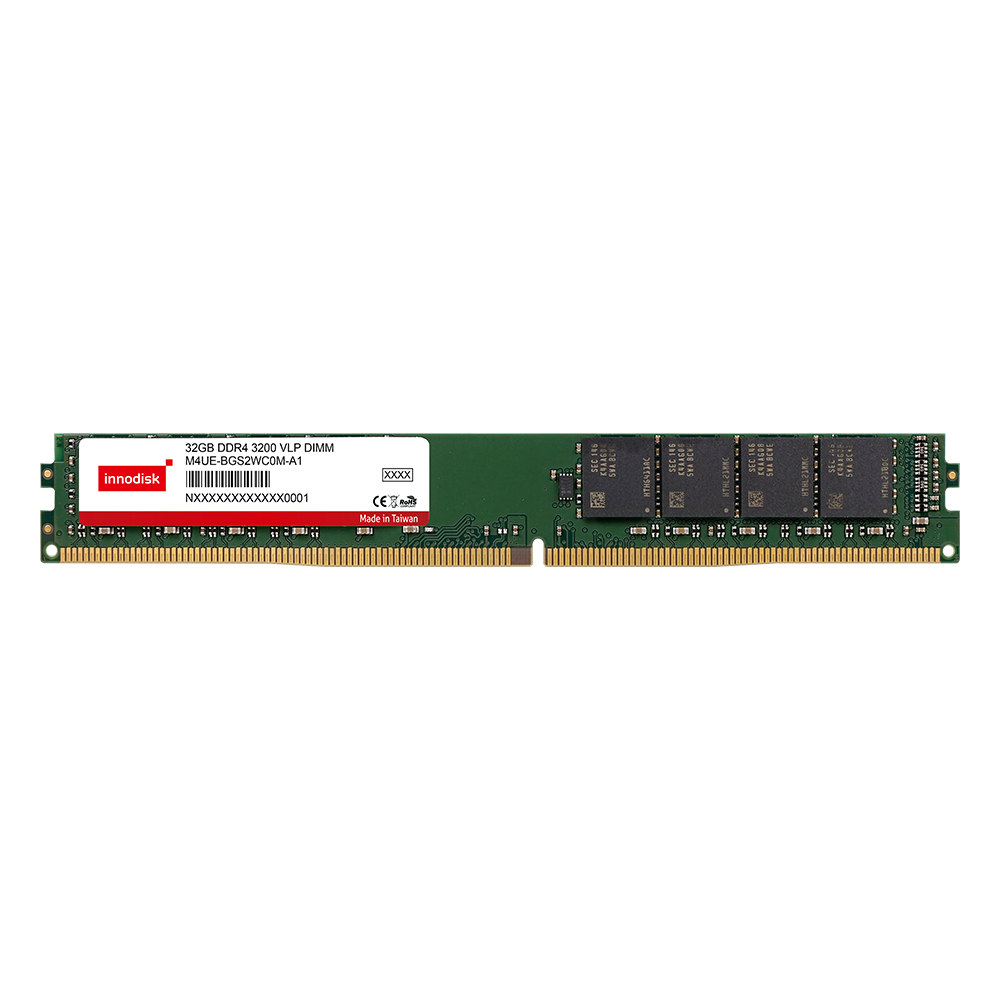

DDR4 UDIMM VLP

DDR4

Non-ECC Unbuffered Memory

Features

Very low profile specialized for use in 1U system
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: 0°C ~ 95°C (Tc)
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 UDIMM VLP offers a very low-profile design and the industry's fastest memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform and 1U devices. The modules comply with all relevant JEDEC standards and are available in 4GB, 8GB, 16GB and 32GB capacities. 2133MT/s, 2400MT/s, 2666MT/s and 2933MT/s modules are also available.

VLP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

SPECIFICATIONS

Model Name	DDR4 UDIMM VLP
DDR Generation	DDR4 Memory
DIMM Type	UDIMM VLP
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	Non-ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x64
Voltage	1.2V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 95°C (Tc)
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4U0-4GSSVCEM	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 4GB UDIMM VLP
M4U0-4GSX8CEM	512M x 16	1R x 16	0°C ~ 95°C (Tc)	DDR4 3200 4GB UDIMM VLP
M4U0-8GSSWCEM	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB UDIMM VLP
M4U0-8GS1VCEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB UDIMM VLP
M4U0-AGS1WCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB UDIMM VLP
M4U0-AGM1WCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB UDIMM VLP
M4U0-BGS2WCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB UDIMM VLP
M4U0-BGM2WCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB UDIMM VLP

For more information, please contact our support.
